Vivo Buri Power supply KNX 160/320/640mA Manual

Description

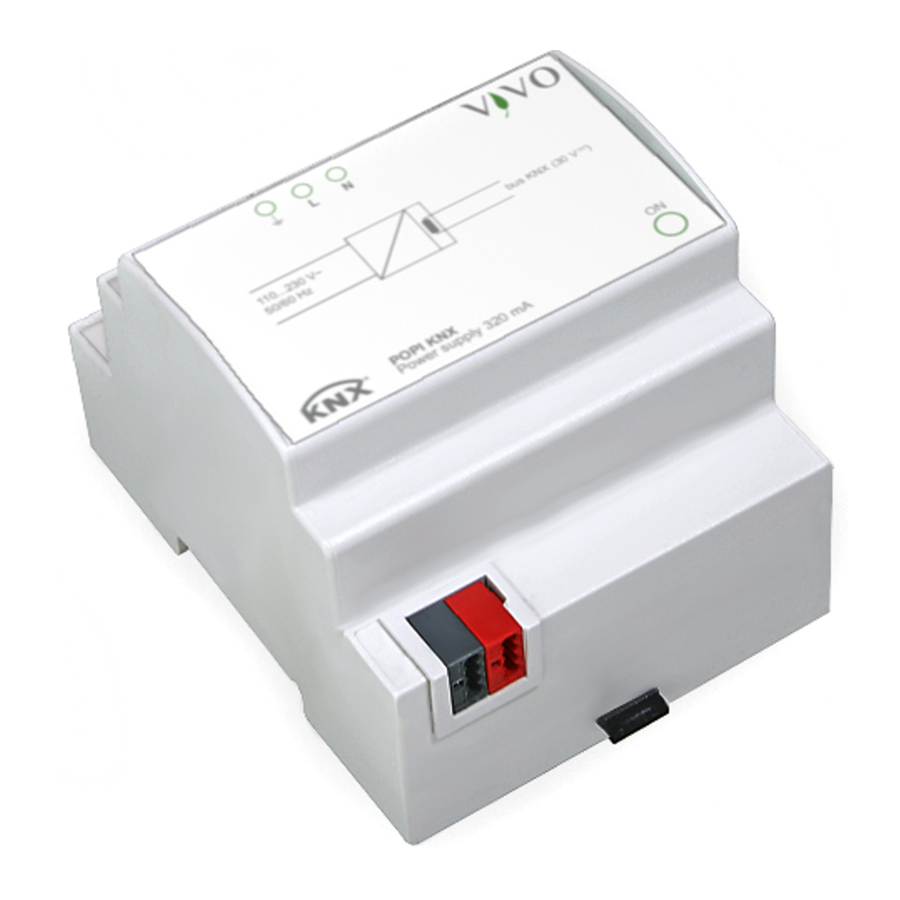

The Vivo® power supply Bil/Popi/Buri KNX is a KNX device for rail mounting which produces and monitors the 30 Vdc voltage required to operate the bus system. The device has an integrated choke which provides the decoupling between the power supply and the information on the bus line. On a KNX bus line can be connected up to 64 KNX bus devices. The output is protected from overload and short circuit. The device can support short interruptions of the mains voltage (max 200 ms).

Functions

Technical data

Power supply

• Voltage 230/110 Vac, 50/60 Hz
• Power consumption 22 W (power losses < 3 W)

Outputs

• Bus line voltage: 30 Vdc +1/-2 Vdc SELV
• Rated current (total outputs): 640-320-160 mA
• Buffer time: 200 ms
• Bus line connection: KNX ternminal block (black/red) included in delivery

Switching, display and connection elements

The device is equipped with a reset pushbutton, terminal blocks for mains voltage 230/110 Vac, KNX bus line.

Planning

Planning a KNX bus installation, the use of a 640 mA power supply unit requires to take into account the following guidelines:

• the maximum number of bus devices connected is 64;
• the maximum length of a line segment is 350 m


1. Terminal blocks for power supply 110-230 Vac 50/60 Hz
2. Status LED
3. Reset pushbutton (internal)
4. Terminal block for KNX bus line asured along the line between the power supply and the furthest bus device;

• the maximum distance between two bus devices cannot exceed 700 m;
• the maximum length of a bus line is 1000 m, keeping into account all segments.

At the same bus line can be connected not more than two power supplies. A second power supply may be necessary when the installation in distribution boards requires a particular concentration of the bus devices (tipically more than 30 units installed within 10 m). In this case a power supply has to be installed near the group of devices. Between two power supplies installed on the same bus line a minimum distance of 200 m is required, measured along the line.

Mounting

The device has degree of protection IP20, and is therefore suitable for use in dry interior rooms. The housing is made for rail mounting according to EN 60715 in boards or cabinets for electrical distribution. The installation is in horizontal position, the correct position is when the terminals for KNX bus line and auxiliary

In order to supply the KNX bus lines use only a KNX bus power supply (e.g. Vivo Cursa KNX). The use of other power supplies can compromise the communication and damage the devices connected to the bus.

output are located at the bottom and the terminals ( , L, N) for connecting the mains power supply 230/110 Vac are located at the top. For the installation of the device on the rail proceed as follows:

• with the aid of a tool bring the locking device in the fully lowered position (a);
• place the upper edge of the rear inner profile on the upper edge of the rail (b);
• rotate the device towards the rail (c);
• push the locking device upward until it stops (d).
  Before removing the device, be sure terminals for bus and have been extracted from his slots. Use a screwdriver to slide down the locking device and remove the device from the rail.

Electrical connections

Main supply 230/110 Vac
The connection to the 230/110 main supply Vac is made with screw terminals ( , L, N) located on the

NOTE:
When mounting the device in boards and cabinets it shall be provided the necessary ventilation so that the temperature can be kept within the operating range of the device.

upper front of the device. Characteristics of the terminal blocks:

• screw clamping of conductors
• maximum cross section of conductor 2.5 mm²
• recommended wire stripping approx. 6 mm
• torque max 0.5 Nm

KNX bus line
The connection to the KNX bus line is made with the terminal block (black/red) included in delivery and inserted into the slot located on the left bottom part of the front.

Characteristics of the KNX terminal block:

Configuration and commissioning

Configuration
The device does not require any configuration with ETS^® (Engineering Tool Software) tool. The application software are available in order to add to an ETS project an Bil/Popi/Buri KNX power supply.

Commissioning
For the commissioning of the device turn on the mains power supply 230/110 Vac to which the device is connected. The green LED marked "ON" indicates the device operating.

The electrical connection of the device can be carried out only by qualified personnel. The incorrect installation may result in electric shock or fire. Before making the electrical connections, make sure the power supply has been turned off.

Reset

The device has a reset pushbutton. After a reset, the bus line is not powered for 20 seconds and the bus devices connected are restored to their original condition. During this interval of time the reset LED (red) is turned permanently on.

Marks

• KNX
• CE: the device complies with the Low Voltage Directive (2006/95/EC) and the Electromagnetic Compatibility Directive (2004/108/EC). Tests carried out according to EN 50491-2:2010, EN 50491-3:2009, EN 50491-4-1:2012, EN 50491-5-1:2010, EN 50491-5- 2:2010, EN 50428:2005 + A1:2007 + A2:2009

Maintenance

The device is maintenance-free. To clean use a dry cloth. It must be avoided the use of solvents or other aggressive substances.

Disposal

At the end of its useful life the product described in this datasheet is classified as waste from electronic equipment in accordance with the European Directive 2002/96/EC (RAEE), and cannot be disposed together with the municipal undifferentiated solid waste.

Warnings

• Installation, electrical connection, configuration and commissioning of the device can only be carried out by qualified personnel in compliance with the applicable technical standards and laws of the respective countries
• The power supply line to which the device is connected must be equipped with an easily accessible disconnecting device with minimum separation distance between contacts of 3 mm
• Opening the housing of the device causes the immediate end of the warranty period
• In case of tampering, the compliance with the essential requirements of the applicable directives, for which the device has been certified, is no longer guaranteed
• Vivo® KNX defective devices must be returned to the manufacturer at the following address:
  Vivo Suisse Sagl, Viale dei Faggi 20, CH 6900 Lugano

Incorrect disposal of this product may cause serious damage to the environment and human health. Please be informed about the correct disposal procedures for waste collecting and processing provided by local authorities.

Other information

• The instruction sheet must be delivered to the end customer with the project documentation
• For further information on the product, please contact the Vivo® technical support at the e-mail address: customerservice@vivoknx.com or visit the website www.vivoknx.com
• Each Vivo® device has a unique serial number on the label. The serial number can be used by installers or system integrators for documentation purposes and has to be added in each communication addressed to the Vivo technical support in case of malfunctioning of the device
• Vivo® is a registered trademark of Vivo Suisse Sagl
• KNX^® and ETS^® are registered trademarks of KNX Association cvba, Brussels

© Vivo Suisse Sagl 2017. The company reserves the right to make changes to this documentation without notice.
