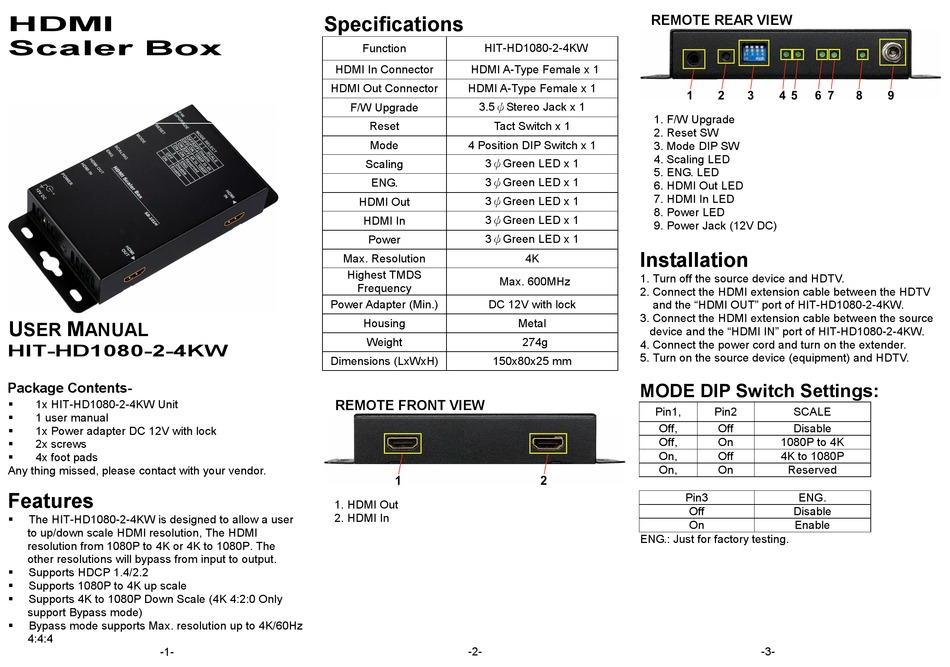

I-Taki HIT-HD1080-2-4KW User Manual

HDMI
Scaler Box
U M
SER ANUAL
HIT-HD1080-2-4KW

Package Contents-

1x HIT-HD1080-2-4KW Unit
1 user manual
1x Power adapter DC 12V with lock
2x screws
4x foot pads
Any thing missed, please contact with your vendor.

Features

The HIT-HD1080-2-4KW is designed to allow a user
to up/down scale HDMI resolution, The HDMI
resolution from 1080P to 4K or 4K to 1080P. The
other resolutions will bypass from input to output.
Supports HDCP 1.4/2.2
Supports 1080P to 4K up scale
Supports 4K to 1080P Down Scale (4K 4:2:0 Only
support Bypass mode)
Bypass mode supports Max. resolution up to 4K/60Hz
4:4:4
-1-

Specifications

HIT-HD1080-2-4KW
Function
HDMI In Connector HDMI A-Type Female x 1
HDMI Out Connector HDMI A-Type Female x 1
3.5ψStereo Jack x 1
F/W Upgrade
Reset Tact Switch x 1
Mode 4 Position DIP Switch x 1
Scaling 3ψGreen LED x 1
ENG. 3ψGreen LED x 1
3ψGreen LED x 1
HDMI Out
3ψGreen LED x 1
HDMI In
3ψGreen LED x 1
Power
Max. Resolution
Highest TMDS
Max. 600MHz
Frequency
Power Adapter (Min.) DC 12V with lock
Housing
Weight
Dimensions (LxWxH) 150x80x25 mm

REMOTE FRONT VIEW

1. HDMI Out
2. HDMI In
-2-

REMOTE REAR VIEW

1. F/W Upgrade
2. Reset SW
3. Mode DIP SW
4. Scaling LED
5. ENG. LED
6. HDMI Out LED
7. HDMI In LED
8. Power LED
9. Power Jack (12V DC)

Installation

4K
1. Turn off the source device and HDTV.
2. Connect the HDMI extension cable between the HDTV
and the "HDMI OUT" port of HIT-HD1080-2-4KW.
3. Connect the HDMI extension cable between the source
Metal
device and the "HDMI IN" port of HIT-HD1080-2-4KW.
274g
4. Connect the power cord and turn on the extender.
5. Turn on the source device (equipment) and HDTV.

MODE DIP Switch Settings:

Pin1,
Off,
Off,
On,
On,
Pin3
Off
On
ENG.: Just for factory testing.
Pin2 SCALE
Off Disable
On 1080P to 4K
Off 4K to 1080P
On Reserved
ENG.
Disable
Enable
