VacuScope easy Version V1.1 CONTENTS Notes on the instruction manual …….…………………….……..…….. Safety instructions.…………..……………………………………………………. Description….………………..……………….……………………………………….. Introduction..……………………………………………….………………………….. Technical Data………………………………………………………………………… First start…….…..………………………..…………………………………………….. Preparation……………………………….…………………………………………….. Switch device on….…………….…………………………………………………… Operating elements…..……….…………………………………………………… Key board…..……………………………………….……………………….………. Screen…………………………………………………..…………………………….…… Interfaces…….…………..…………………………………………….………..……… Programmes………….………………………………………….……………………. Operation………………..……………………………..…………………..………..Main menu..………….…………………………………………………………………. Settings and Service…………………...………..………………………..……… Programme Pulsation……………………………………………..…………….. 6.4.1 Menu Pulsation……………………………………………………………………….. -
Page 3: Notes On The Instruction Manual
Only persons who have been instructed in the intended use of the VacuScope easy and who are familiar with the operating instructions are authorized to commission the device. Knowledge of the accident prevention regulations and the generally recognized safety rules is required to perform measurements. -
Page 4: Description

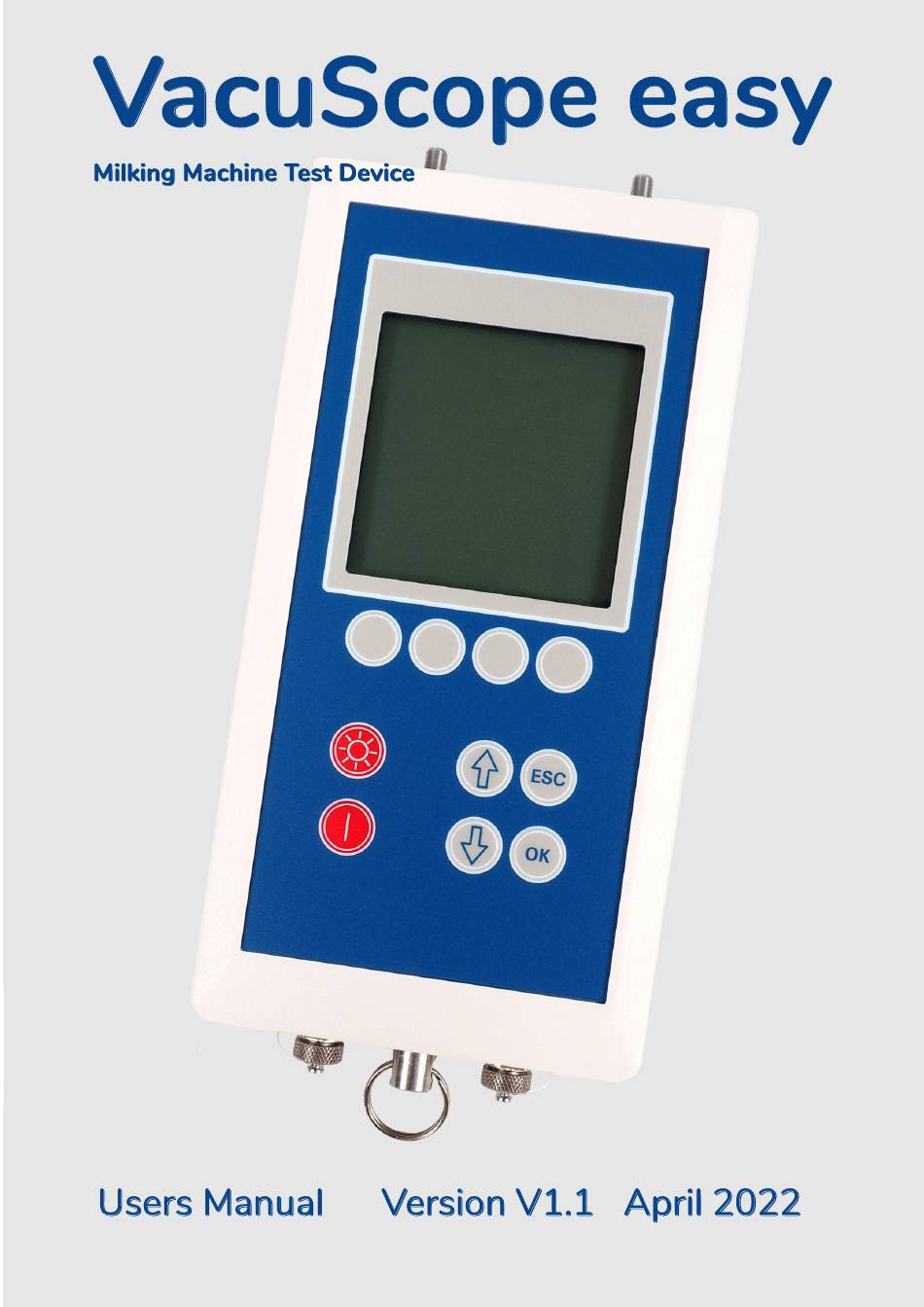

VacuScope easy Version V1.1 3. DESCRIPTION 3.1 INTRODUCTION VacuScope easy is a handy device for checking pulsators and measuring the vacuum curve in milking systems with outstanding product features: •Visualization of the vacuum courses by a graphic display during testing •Clear operation with fixed and adjustable keys... - Page 5 VacuScope easy Version V1.1 External Sensors (optional) Measuring range Measuring accuracy Measuring solution Vacuum sensor/ 0…-50,0 kPa <0,6 kPa, <0,3 (typ) 0,1 kPa Pressure sensor 0… 20,0 kPa <0,6 kPa, <0,3 (typ) 0,1 kPa Temp. sensor -20,0….140,0 °C 1,5% 0,1 K...
-
Page 6: First Start
Check the polarity when inserting the batteries. Incorrect polarity can destroy the electronics of the unit. Attention ! VacuScope easy is designed for the measuring of atmospheric pressure. Avoid measuring of other media. This could falsify the measurement results or destroy the electronics. -
Page 7: Switch Device On
VacuScope easy Version V1.1 4.2 SWITCH DEVICE ON The VacuScope easy is started by pressing the button. While starting the instrument, the measuring systems zero calibration is checked. This defines the predominant air-pressure as zero level of the device. Achtung ! -
Page 8: Operating Elements
VacuScope easy Version V1.1 5. OPERATING ELEMENTS Measuring channel 1 – CH1 Measuring channel 2 – CH2 LCD-Display 128 x 128 Key board Interface RS 232 Belt holder Sensor interface – CH3... -
Page 9: Key Board
VacuScope easy Version V1.1 5.1 KEY BOARD The keys of the key board have the following meaning: Switch on the device Turn on / turn off the backlight of the display Moving in the menu up, setting parameters Moving in the menu down, setting parameters... -
Page 10: Screen
VacuScope easy Version V1.1 5.2 SCREEN The instrument VacuScope easy has a backlit screen with a resolution of 128 x 128 pixels. In the upper area of the menu windows, the current programme and the battery charge status are displayed. -
Page 11: Programmes
VacuScope easy Version V1.1 6. PROGRAMMES 6.1 OPERATION In the menu navigation, the programme items or the associated parameters are selected with the buttons (the current item is displayed inversely). The selected program item is started with the button. An input window opens for setting parameters (e.g. memory space). -
Page 12: Main Menu
VacuScope easy Version V1.1 6.2 MAIN MENU After switching on the device and zeroing the measuring system, the display shows the main menu. The programmes and functions in the main menu: PULSATION Testing of clusters according to milking system standards ISO... -
Page 13: Settings And Service
VacuScope easy Version V1.1 6.3 SETTINGS AND SERVICE In this programme, the operator can make settings and service activities. SYSTEM NAME 1 NAME 2 CALIBRATION INSTALLATION Settings and functions in the SYSTEM programme: ENGL,DEUT,FRANCE Selection of language ITALI,ESPAN,PYCK NAME1 Setting of user data (e.g. name, company, location) -
Page 14: Programme Pulsation
VacuScope easy Version V1.1 6.4 PROGRAMME PULSATION 6.4.1 MENU PULSATION For the qualitative assessment of milking machines and systems, operators, service personnel and control bodies may carry out an audit in accordance with ISO 5707/6690. Settings and functions in the PULSATION programme: MEMORY-NO. -
Page 15: Measurement Of Pulsation
VacuScope easy Version V1.1 6.4.2 MEASUREMENT OF PULSATION After starting the measurement, the pulsation is analyzed according to the specifications of ISO 6690. After completion of the pulse analysis, the measurement results are displayed graphically and numerically in the 1st window. -
Page 16: Data Memory Of Programme Pulsation
VacuScope easy Version V1.1 Deviations from the specifications of ISO 5707:2010 are determined and displayed flashing. The target values for the pulse analysis according to ISO 5707:2010. Limping [%] < 5,0 % Phase B [%] >=30,0 % Phase D [%] >... - Page 17 VacuScope easy Version V1.1 One or more saved measurements can be deleted in the PULSATION menu. The first and last memory location to be deleted must be entered beforehand. CLEAR MEMORY DELETE FROM: DELETE TO: Stored data can also be shown on the display in the PULSATION menu. The set ...
-
Page 18: Programme Fluctuation
VacuScope easy Version V1.1 6.5 PROGRAMME FLUCTUATION 6.5.1 MENU FLUCTUATION The FLUCTUATION programme is available to the user for the graphic analysis of pulsation and vacuum curves: FLUCTUATION VACUUM CH3 SCAN [MS] MEMORY-NO. Settings and functions in the FLUCTUATION programme:... -
Page 19: Measurement Of Fluctuation
VacuScope easy Version V1.1 6.5.2. MEASUREMENT OF FLUCTUATION In contrast to the PULSATION programme, the measuring parameters can be freely selected in the FLUCTUATION programme. Fluctuating vacuum conditions in the milking system can be displayed and analyzed here. PULSE 60,1... -
Page 20: Data Memory Of Programme Fluctuation
VacuScope easy Version V1.1 6.5.3 DATA MEMORY OF PROGRAMME FLUCTUATION Stored data can also be shown on the display in the FLUCTUATION menu. The set memory location can be called up with the function key . In this window, the graph with its measured values can be printed out and also deleted. -
Page 21: Programme Sensors
VacuScope easy Version V1.1 6.6 PROGRAMME SENSORS The following programmes are available for the static measurement of physical measurands using external sensors and measuring devices: Measuring programmes in the SENSORS programme: VACUUM CH1 Measuring a static vacuum value on channel 1... - Page 22 VacuScope easy Version V1.1 In the SENSORS menu, for example, the airflow measurement is displayed as follows: Airflow [l/min] Working vacuum connected to channel 1 Sensors and air flow meters are not included in the scope of delivery of the...
