Summary of Contents for Duratech FLOW DFI-150

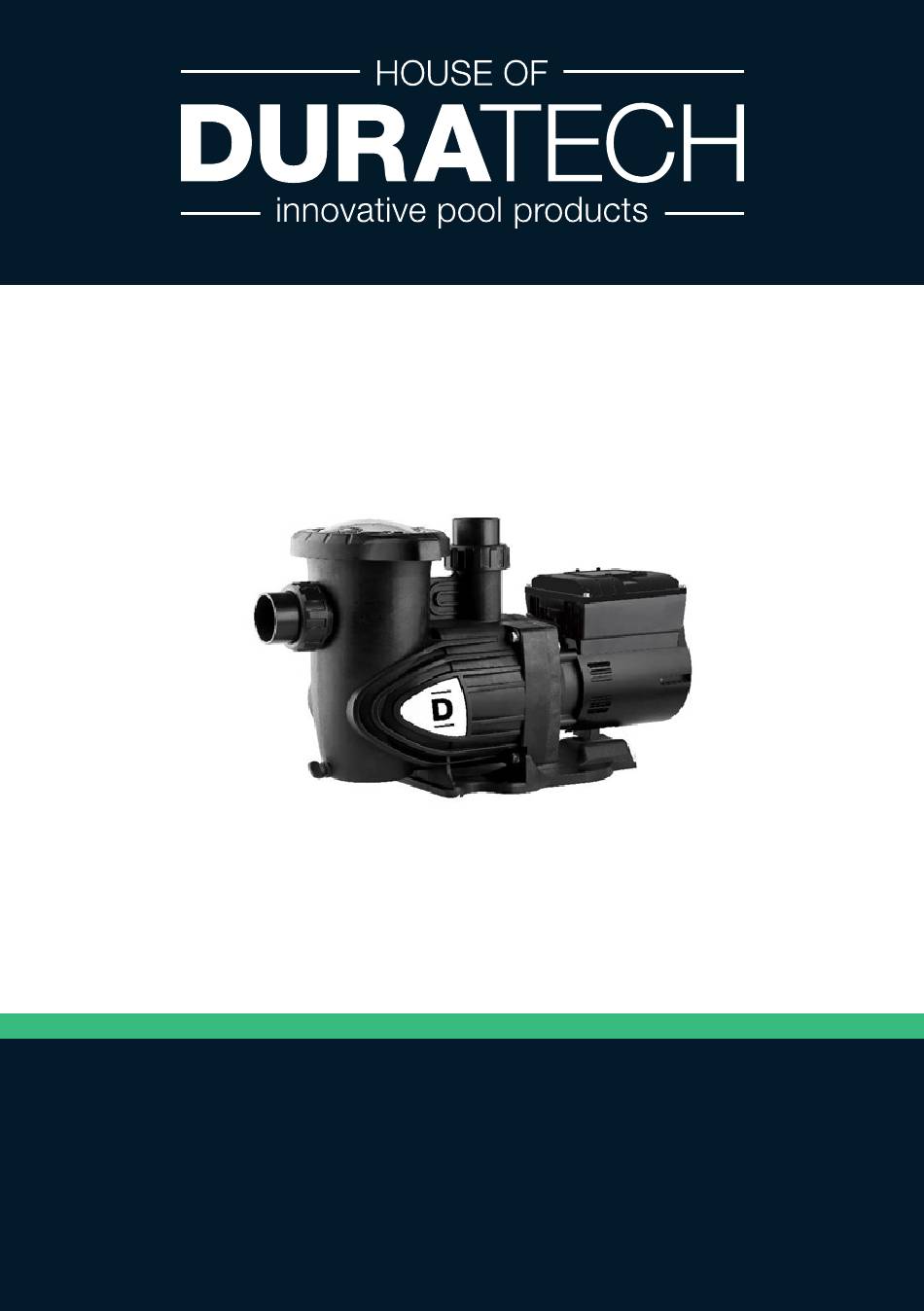

- Page 1 Manual DFI-150 FLOW DFI-150...
-
Page 2: Table Of Contents
Table of Contents 1. Box content ....................... 3 2. About the DFI-150 ....................4 3. Technical specifications ..................5 3.1. General specifications ..................5 3.2. DFI-150 overview ....................6 3.2.1 Spare parts list ....................6 3.3. Wiring diagram and terminal blocks ............. 7 4. -
Page 3: Box Content
1. Box content Included in the final package with the DFI-150 are: • 1x DFI-150 water circulation pump (incl. 3,5m power cable) • 1x Inlet and outlet Fitting Ø63mm • 1x Quick Guide... -
Page 4: About The Dfi-150
2. About the DFI-150 The Dura Flow inverter circulation pump, DFI-150 is a self-priming centrifugal pump for recirculation and filtration of the water in small and medium sized pools with prefilter integrated. The DFI-150 is part of the full DuraLink solution. Communication is done using power line communication. -
Page 5: Technical Specifications
3. Technical specifications 3.1. General specifications • Input Voltage: 230VAC 50Hz 16A • Flow rate max: 28,8m3/h • Max. head: 22m • Max current: 8,2A • Min. speed: 750RPM • Max. speed: 3450RPM • P1 (Input power): 1,7kW (power consumption) •... -
Page 6: Dfi-150 Overview
3.2. DFI-150 overview 3.2.1 Spare parts list Diagram reference number Description Spare part number SP_DFI-001 Filter-basket 1, 2, 3 SP_DFI-002 The filter cover + sealing SP_DFI-003 Filter cover sealing SP_DFI-004 Mechanical sealing 63 mm fitting (pipe fitting + 5, 6, 7 SP_DFI-005 nut fitting) with sealing SP_DFI-006... -
Page 7: Wiring Diagram And Terminal Blocks
3.3. Wiring diagram and terminal blocks See LINK Master manual for further details regarding the wiring diagram and terminal blocks for connecting the power cable. -
Page 8: Installation Instructions
4. Installation instructions 4.1. Warnings Before installation and use of the pump, the basic safety warnings need to be understood. Specific contents include the following warnings: Be careful of electric shock. The pump can only be installed in combination with the LINK Master. The LINK Master has all safety devices on board to make for a safe installation. -
Page 9: Operation Modes
5. Operation modes For operation of the pump and instructions for scheduling, please consult the manual of the Link Master (DLM-450, DLM-600). -
Page 10: Special Function Description And Application
6. Special function description and application 6.1. Internal protection functions See addendum 8.1 for corresponding error codes. In case of error, the error code will be displayed on the LinkTouch or can also be retrieved in the DuraCloud application. 6.1.1. Overvoltage and undervoltage protection •... -
Page 11: Dry Pumping Protection (No Water Protection)
6.1.5. Dry pumping protection (no water protection) • The dry pumping protection is controller by the LINK Master • This feature only works from and above 2100 RPMs... -
Page 12: Attention Points
7. Attention points 7.1. High-speed running at start-up Every time the pump will be activated, the motor will start running at high speed to remove the air in the pipe. This is controlled by the LINK Master. 7.2. Filter cleaning The filter basket must be cleaned on a regular basis to guarantee the waterflow and to avoid any damage of the pump due to a blocked filter. -
Page 13: Addendum
8. Addendum 8.1 Error codes Display Fault Name Failure Cause Description Code - Overloaded At this time: - Use of a special motor or a motor with 1) Please check whether the motor and the driver match Overcurrent during a power greater than the applicable 2) Please check whether the output terminal of the driver is drive speed change power.
