Thank you for purchasing the STYX wearable KONNEKT. Read the instructions carefully to obtain
optimum results and preserve it for future reference.
DESCRIPTION OF THE WEARABLE.
CONTENTS.
Wearable, Magnetic charging cable, instruction manual.
CHARGING.
Connect the device to a computer or laptop with the USB Magnetic cable for charging. Put in
contact the magnetic end of the USB cable with the charging points positioned in the back of your
device. Kindly use only the USB cable included with the wearable. If you use a power adapter for
charging, the output of the power adapter should be 5V, 1A. Charging time: 2 hours. Please charge
the device fully before using. Be careful the charging cable shall not be laid on any metal objects
with its end which have metal contacts, in case the charging cable damaged due to short circuit.
HOW TO POWER ON / POWER OFF?
1)
To turn ON the smart band, long press the button for few seconds to make it Power On.
2)
To turn OFF the smart band, long press the button for few seconds until the Power OFF
interface displays, then select slide to make it Power Off.
WEARABLE
User Manual
Model No. Konnekt

Advertisement

loading
Need help?

Need help?

Do you have a question about the Konnekt and is the answer not in the manual?

Questions and answers

Summary of Contents for Styx Konnekt

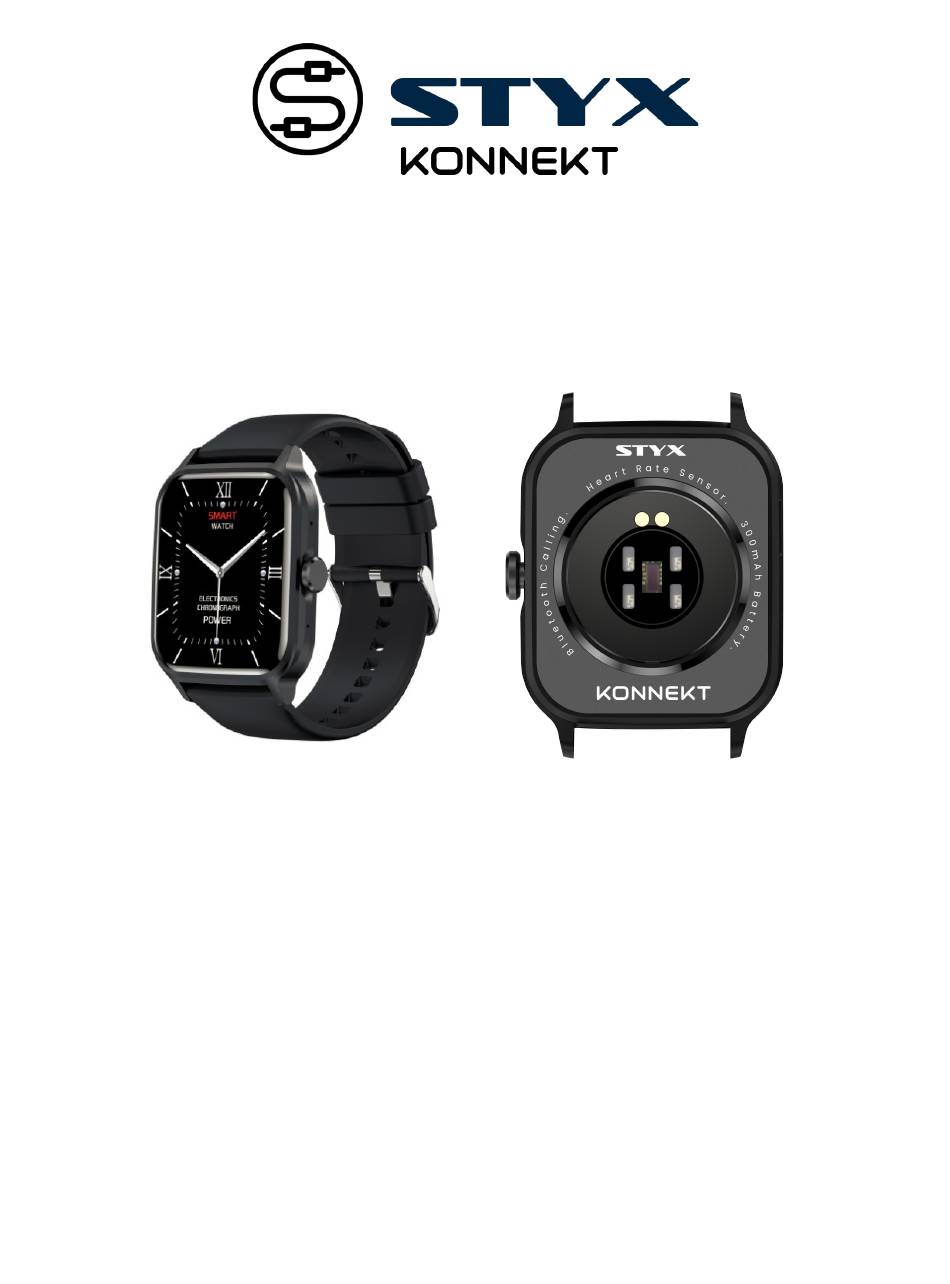

  • Page 1 WEARABLE User Manual Model No. Konnekt Thank you for purchasing the STYX wearable KONNEKT. Read the instructions carefully to obtain optimum results and preserve it for future reference. DESCRIPTION OF THE WEARABLE. CONTENTS. Wearable, Magnetic charging cable, instruction manual. CHARGING.

  • Page 2: Getting Started

    RDFit select “Searching Device”, the APP will search for new Bluetooth device(s), when the available Bluetooth device displays, please select KONNEKT (the BT name of this device) to make it pair. The pairing will be finished in a few seconds. When you pair for the first time, the app RDFit you must allow all the permissions such as Bluetooth use or locations services.
  • Page 3 RDFit select “Searching Device”, the APP will search for new Bluetooth device(s), when the available Bluetooth device displays, please select KONNEKT (the BT name of this device) to make it pair. The pairing will be finished in a few seconds. When you pair for the first time, the app RDFit you must allow all the permissions such as Bluetooth use or locations services.

  • Page 4: Use Of The Touch Screen

    USE OF THE TOUCH SCREEN Slide from up to down Page 1 Do not disturb mode Brightness adjustment Shortcut to settings - screen display time, gesture control, brightness, key definition, do not disturb, vibration, password, language, time and date, qr code, reset, reboot, power off, about Screen lock Call Menu style...
  • Page 5 Slide from Right to left You will access a quick menu with the following: Pedometer with complete status, Hear Rate, Sleep, Weather, App addition button: PEDOMETER: view daily steps with detailed data. Your movement data will reset to zero at midnight.
  • Page 6 LIST VIEW MENU FUNCTIONS Slide from down to up You will preview your last 10 messages.
  • Page 7 Konnekt Smart Watch Features Phone Call  After connecting the smart watch to the phone, you can use the watch to dial to control the phone for making calls and answering the phone calls.  You can also view the call history of the watch.
  • Page 8 Oxygen Level Measure Tap the SpO2 page to start measuring your SpO2. On the SpO2 page, It can show the SpO2 measured data of the last times. Stopwatch Tap the start button on stopwatch page to start timing, and tap the stop button to stop timing.
  • Page 9 Alarm Set up the alarm on the APP, the watch will vibrate to remind on time. You can ON/OFF it on the watch. Voice Click to activate your phone voice assistant. Breathe Exercise following the steps to relax yourself.
  • Page 10 Sport Modes Choose your sports and click to start ***More functions in RDFIT APP*** Watch faces (dials) – discover more dials and download it and sync it to the smart band, set personalized dial with our pictures too. Notifications – turn on/off for push notifications for Incoming Phone Calls, SMS, Facebook, Twitter, WhatsApp, etc.

  • Page 11: Technical Specifications

    **** This product is not a medical device, the data results are for reference only, not as a basis for diagnosis and treatment. CLEANING: In order to avoid any damage on the plating or printing of your wearable please do not use any chemical product for cleaning such as alcohol 96º.
