Summary of Contents for UltraLift Spider 70

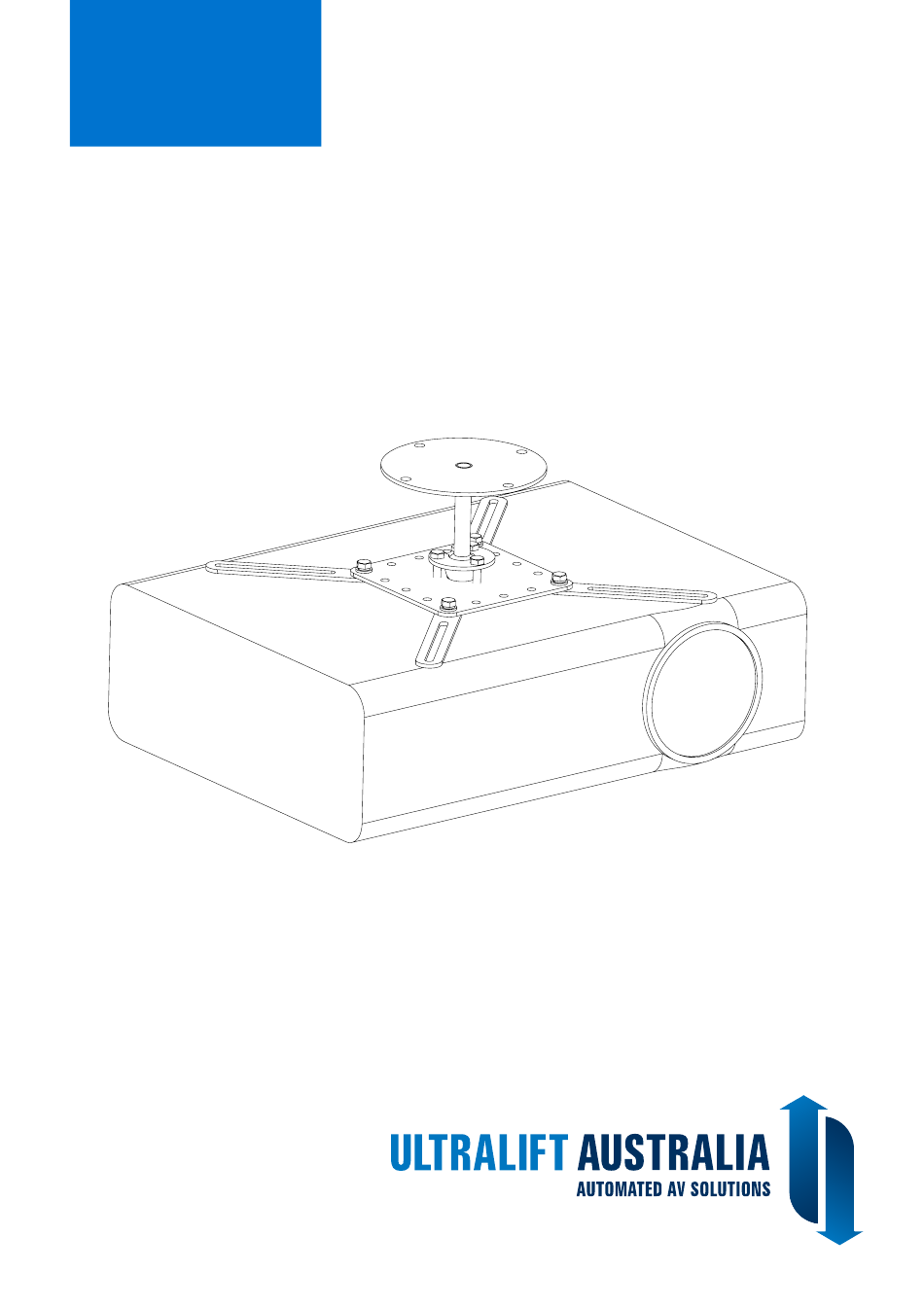

- Page 1 PRODUCT MANUAL Spider 70...
- Page 2 CAUTION Safety Warning Mount where people will not be injured: Select a mounting position where people will not hit their head or other parts of their body. Risk of Electrocution: Do not connect any power to the projector until installation is complete. Attach the projector as instructed in the installation procedure.
-
Page 3: Table Of Contents
Legal Notice and Liability Disclaimer Thank You Thank you for purchasing this Ultralift product. We are sure you will enjoy this unit for years to come. Before installing, operating or adjusting this product, please read this instruction book carefully and completely. -
Page 4: Screw Kit
When you receive this product, please do the following to ensure you have all of the needed components included in the package. Open the carton & inspect for damage. Locate the following parts: 1 — Spider 70 (Projector Mount) 1 — Screw Kit (see next page) Page 4... - Page 5 PARTS Screw Kit: Spider 70 M4 Pan Phillips screws M5 Pan Phillips screws (12mm Long) (12mm Long) Quantity: 4 Quantity: 4 To fasten certain Projectors to Mount Arm To fasten certain Projectors to Mount Arm M4 Pan Phillips screws M5 Pan Phillips screws...
-
Page 6: Spider 70 Diagram
DIAGRAM Spider 70 Diagram Ball Stud Thread Hole Ceiling Mount Plate Ball Stud Thread Slotted Lock Ring Arm Mount Plate Ball Stud Bolt Ball Stud Page 6... - Page 7 2. Loosen the three ball stud bolts until the ball stud can be removed from the slotted lock ring. Remove the ball stud from the lock ring through the slot in the lock ring. 3. The Spider 70 will now be separated into two pieces as shown below. Top Piece Bottom Piece 4.
-
Page 8: Installation
9. Place the lower portion of the Spider 70 on top of the projector you are using. If the mounting holes on the projector do not line up with the Spider Arms, you may have to adjust the direction the Spider Arms are facing. - Page 9 11. Once the projector is securely fastened to the Spider Arms, reconnect the lower portion of the Spider 70 to the upper portion which was fastened to the ceiling in step 8. You will need to slot the Ball Stud Thread through the slot in the Slotted Lock ring, and tighten up the three bolts on the Slotted Lock ring to secure the projector into place.
-
Page 10: Specifications
SPECIFICATIONS Schematic Diagram Page 10... -
Page 11: Warranty And Returns Policy
Page 1 of 2 Warranty and Returns Policy At Ultralift Australia Pty Ltd, we take pride in the fact that our products are of the highest quality. Because of this, we offer the following programs to ensure your satisfaction. ULTRALIFT 2 YEAR WARRANTY 1. - Page 12 If you do accept the goods, keep all packing materials and boxes with the damaged product. 2. Immediately advise Ultralift Australia of all damages or problems with the delivery of goods. REFUNDS Established Account: A full refund will not be issued if the purchaser’s account has an open balance.
-
Page 13: Legal Notice And Liability Disclaimer
Ultralift Australia Pty. Ltd. to do so under the laws of the State of Victoria, Australia and the Commonwealth of Australia. - Page 14 THANKYOU FOR CHOOSING Ultralift Australia Pty Ltd 10 Vernon Ave, Heidelberg Heights VIC 3081 Australia Email: sales@ultraliftaustralia.com.au Web: www.ultraliftaustralia.com.au Phone: 61 3 9459 0873 Fax: 61 3 9457 6686...
