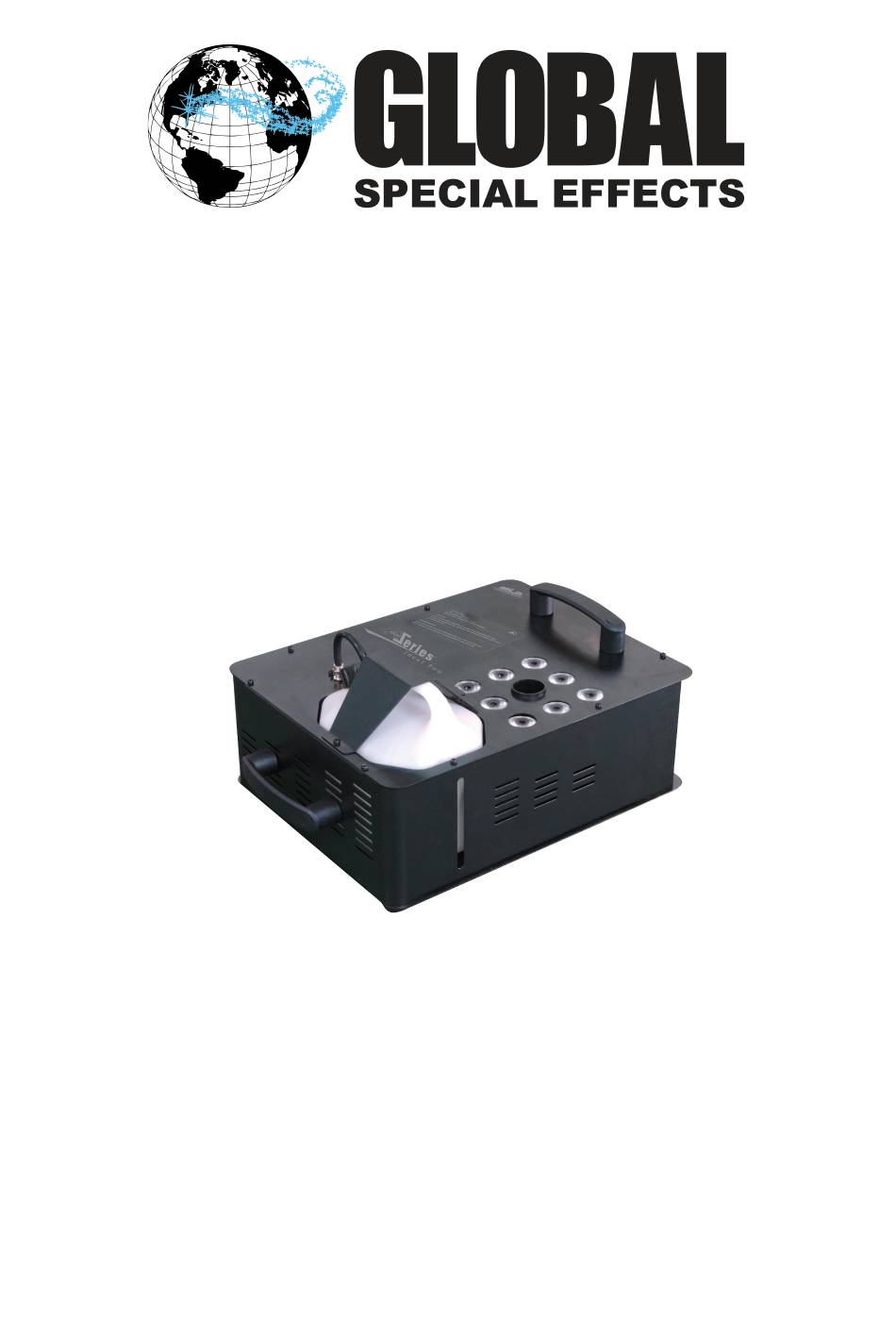

- Page 1 F-1500 LED FOG MACHINE USER MANUAL PLEASE READ OVER THIS MANUAL BEFORE OPERATING MACHINE TECH SUPPORT: (256) 229-5551...
- Page 2 CONTENTS 1. INTRODUCTION 2. SAFETY INSTRUCTIONS 3. DESCRIPTION OF PARTS 4. FLUID 4.1 GENERAL NOTES 4.2 STORAGE AND A POINT FOR ATTENTION OF THE FLUID 5. OPERATING THE DATA 5.1 PUTTING INTO OPERATION 5.2 FUNC MENU 6. CLEANING, CARE AND MAINTENANCE 7.
- Page 3 8. Artificially-made fog can be produced in many different ways. The method used here to produce fog, with a device which works according to the vaporizer principle, is the most harmless one. 9. Please put the machine to dry, no dust and contaminants, not shake and a draughty environment.
- Page 4 Picture 1 Adjust the output (Picture 1). Sorry this LED UP FOG MACHINE can do adjust the smoking output! Picture 2 Interval time (Picture 2). Press FUNC two times continuously , appear in Picture 2, it means adjust the interval time, press UP and DOWN, it can set 1~200s interval time. Picture 3.
- Page 5 Picture 5. LED Mode （Picture 5）. Press FUNC five times continuously，appear Picture 5, it can adjust 5 kinds of operation. Picture 6. DMX adjust (Picture 6). Press FUNC six times continuously，appear Picture 6, press UP and DOWN, it can adjust 1~511 DMX start address. Picture 7.
- Page 6 Picture 9.Jum Vol (Picture 9).Press FUNC nine times continuously, appear in Picture 9,press UP and DOWN, it can adjust the LED color change speed 1-255%. Picture 10.Fla Vol (Picture 10).Press FUNC ten times continuously, appear Picture 10,press UP and DOWN, it can adjust the LED strobe speed 1-255%.
- Page 7 5.3 DMX control DMX have priority when the machine put in the XLR socket.(it means the machine is controlled by DMX,the data will be connected the DMX, all the key-press on the machine will be stop using. The machine have 6CH of DMX. You can connect several piece LED up fog machine with XLR signal line to work together! Smoking Choose the LED color...
- Page 8 Cause: The overtemperature protection device is activated. · Check whether the fan is clogged ·Turn off the power for a moment,then turn on the power again. Trouble 4: The vaporizer is clogged. ·Please send the machine to the service-station or your local dealer. 8.
