Electronics Line EL-2614 Instructions

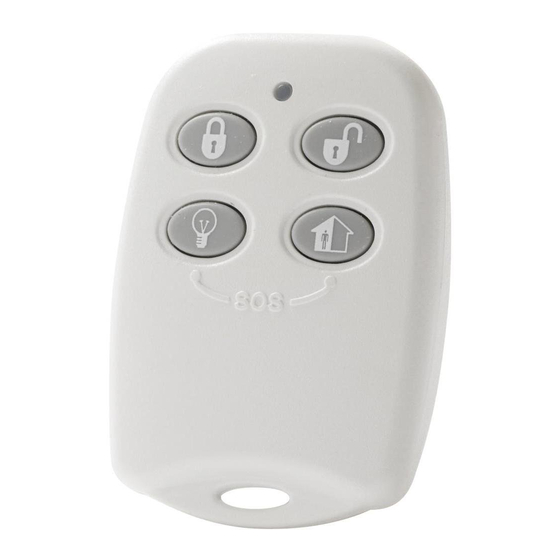

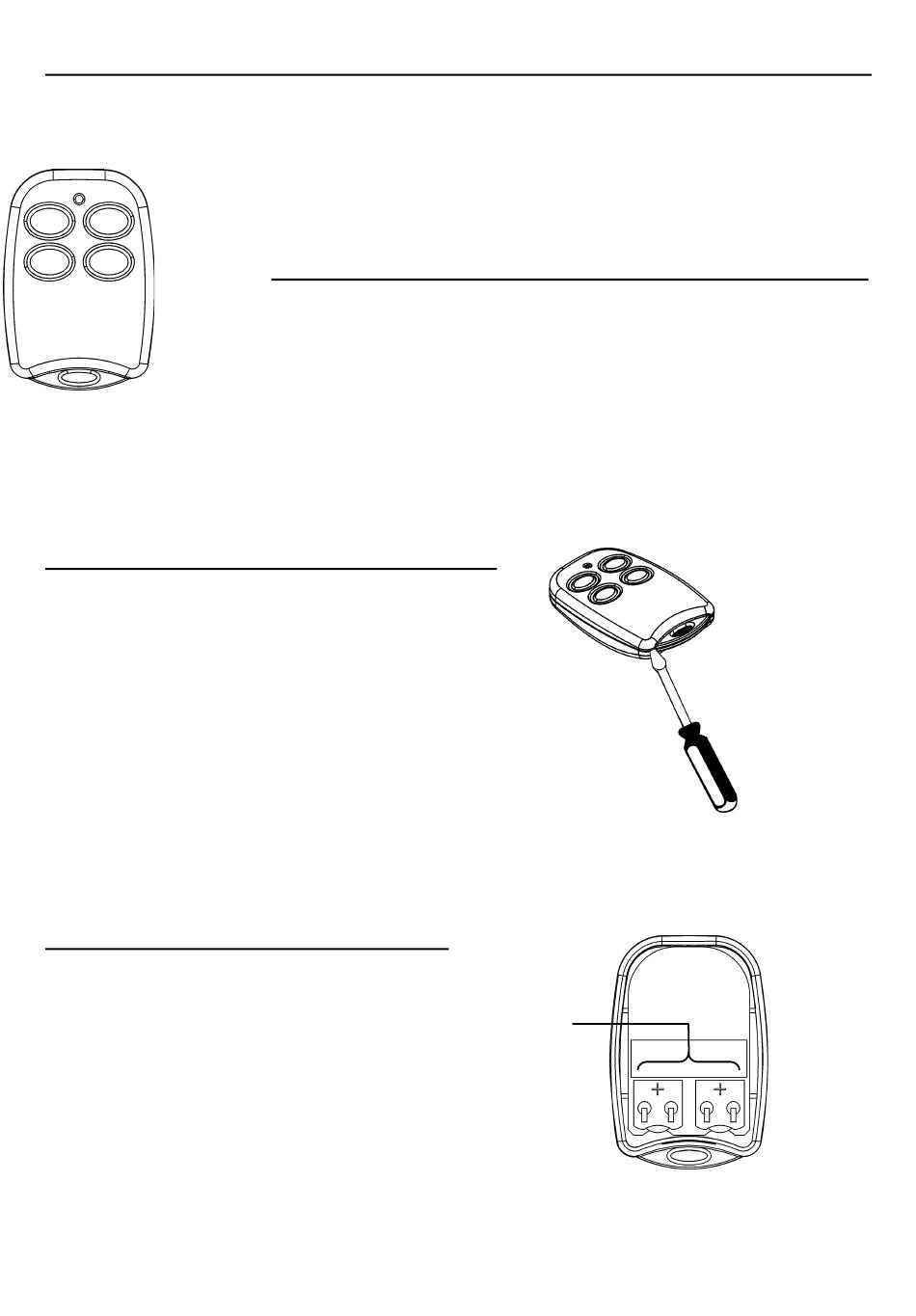

Figure 1: EL-2614/
Figure 1: EL-2614/
Figura 1: EL-2614

Battery Replacement

If the LED blinks during transmissions, this
indicates that the batteries are low and need
replacing.
To replace the batteries:
1.
Insert a small screwdriver into the pry-off
slot – see Figure 2. Carefully twist the
screwdriver to separate the front and
back of the casing.
2. Observing correct polarity, replace the
batteries.
3. Close the casing making sure that the
front and back click shut.

Technical Specifications

Antenna: Built-in whip
Frequency: 868.35, 433.92 or 418MHz FM
Power: 2 x 3V Lithium Battery, Size CR1225
Current Consumption:
16mA (transmission),
2µA (standby)
RFI Immunity: 40V/m
Operating Temperature: 0 - 60°C
Dimensions: 62 x 42 x 15mm

English
The EL-2614 is a four-button keyfob transmitter designed for use
with Electronics Line 3000's supervised wireless range of
receivers.

Registration

To register the EL-2614:
1. Set the receiver to Registration mode.
2. Press one of the buttons, making sure that the LED lights
up when the button is pressed.
3. Wait for five seconds and press the same button again.
Alternatively, the EL-2614 can be registered to the receiver by
manually entering the transmitter's serial number.
Figure 2: Opening the casing/
Figure 2: Ouverture du boîtier/
Figura 2: Abriendo la tapa
Battery Holders/
Emplacement
des Batteries/
Soporte de la
Batería
Figure 3: EL-2614 Rear view (casing open)/
Figure 3: EL-2614 Vue arrière (boîtier ouvert)/
Figura 3: EL-2614 Vista posterior (tapa abierta)
EL-2614
