Behlen Country MX-V Operating Instructions

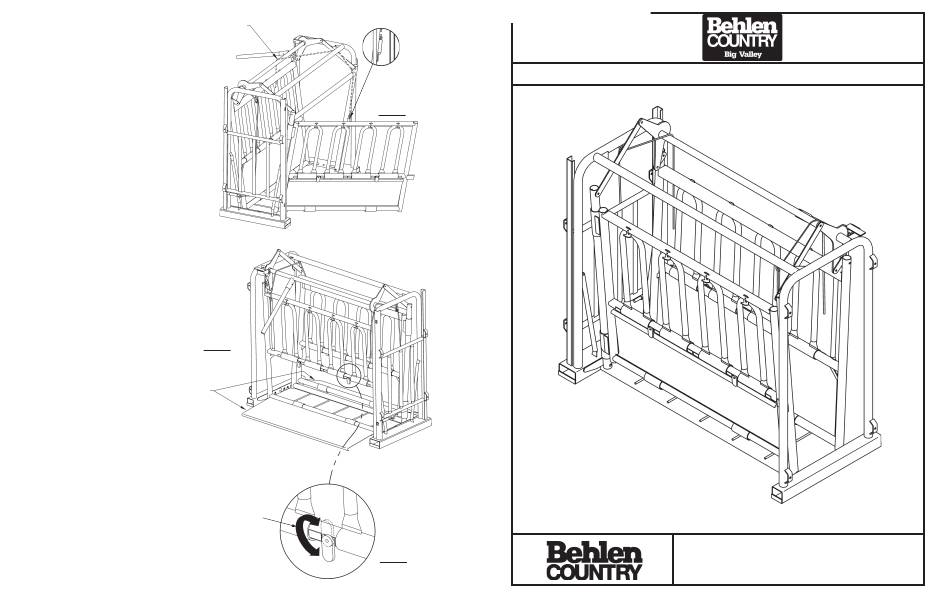

6.1 Side Exit Chute

The side exit allows the animal to
exit out one side of the chute in a
quick and safe manner. The side
chute has a latch with a rope
attached to it extending over the
top to the other side. This allows
the operator to open the side exit
from the opposite side.
The gate will swing open by itself
due to the slant of the side panel
and will remain open on its own.
The side gate can be closed from
the opposite side by returning the
chute to the squeezed position.
This causes the gate to lean inward
toward the chute and will firmly
engage the latch, properly
securing the gate. (View 6A).
7.1 Drop Down Access Panels
These panels (on each side) allow
full access to the lower portion of
the animal. Two latch plates (view
View 7A
7B) can be easily rotated upward
Side Panels Open
allowing the panel to rotate
downward toward the ground.
This also provides for a clean
Side
working surface when open. To
Panels
close the panel, rotate the panel
back upward and let the latch
plates swing down over them to
lock them into place. (Views 7A &
7B)
F-19930-1
Side Chute
Rope
Side Exit Latch
is adjustable by
turning eyebolt.
View 6A
Rotate Latch
Plate to Open.
It normally
hangs down in
the closed
position.
View 7B
Rev. 2-1-03
ASSEMBLY INSTRUCTIONS
MX-V CHUTE
For questions about this product, or for parts inquiries, please contact our Customer Service Center listed below.
F-19927-1
10-14-02
THANK YOU FOR PURCHASING THIS PRODUCT
CUSTOMER SERVICE CENTER
PO Box 569
Columbus, NE
68602-0569
TECHNICAL INFORMATION 70 090
Hardware Pkg.
62900292
Ph: 1-800-447-2751
Fax: (402) 563-7447
www.behlencountry.com
Rev. 2-1-03 10-14-02
