Summary of Contents for Particulate Systems MA-1040
- Page 1 MA-1040 Magnetic Analyzer Operator’s Manual V2.0 P03-42801-00 March 2011...
- Page 2 © Particulate Systems 2011. All rights reserved. Printed in the U.S.A.
- Page 3 The materials of construction used in products distributed by MICROMERITICS under the Particulate Systems brand cannot be totally guaranteed against wear and/or decomposition by chemical action (corrosion) as a result of normal use.
-
Page 5: Table Of Contents
MA-1040 Magnetic Analyzer Table of Contents Table of Contents Introduction ..............1 Description . -
Page 7: Introduction
The MA-1040 can also be used to detect low magnetic iron levels in food, precious gems, pharmaceuticals, and many other materials. The MA-1040 has been referenced in American National Standards Institute ( ANSI ) bulletins as well as bulletins for the Abrasive Grain Association. -
Page 8: Components And Connectors

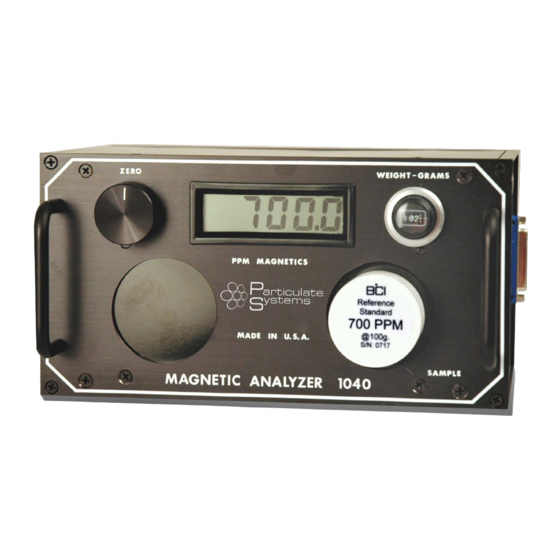

Description MA-1040 Magnetic Analyzer Components and Connectors Top Panel Five-Digit Display ZERO Control WEIGHT-GRAMS Control Sample Chamber LCD Five-Digit Display Displays readings of magnetic content in PPM WEIGHT-GRAMS Used to enter the sample weight control Range: 000 - 999 grams... -
Page 9: Side Panel
MA-1040 Magnetic Analyzer Description Side Panel Power On/Off switch connector Power connector For connecting the power cord On/Off switch For turning the analyzer on and off May 2011... -
Page 10: Specifications
Specifications MA-1040 Magnetic Analyzer Specifications Characteristic Specification Environment Temperature: Stable between 10 and 45 ºC (50 to 113 ºF), operating; -10 and 55 ºC (14 to 131 ºF), non-operating Physical Height: 16.76 cm (6.6 in.) Width: 25.40 cm (10 in.) Depth: 13.34 cm (5.25 in.) -
Page 11: Setting Up The Analyzer
Setting up the Analyzer Setting up the Analyzer For optimum performance from your MA-1040 analyzer, keep the following in mind when selecting a location for its placement: • Avoid locations near strong magnetic fields, such as transformers or power lines carrying high currents. -
Page 12: Reference Standard Test
5. Take an average of the three readings (from steps 3 and 4). The average for the three readings should be within 1% of the value printed on the reference standard, or ± 0.5 PPM, whichever is greater. If the reading is outside of this range, contact Particulate Systems for assistance. 6. Remove the reference standard. -
Page 13: Cleaning The Sample Holder
MA-1040 Magnetic Analyzer Cleaning the Sample Holder Cleaning the Sample Holder Sample holders should always be clean and dry before adding sample. Use a mild soap and water to clean the sample holder; a soft-bristled brush may also be used. -
Page 14: Performing The Analysis
Performing the Analysis MA-1040 Magnetic Analyzer Performing the Analysis After your sample has been weighed and the weight recorded, you can start the analysis. 1. With the sample chamber empty, adjust the ZERO control to 000.0. 2. Adjust the WEIGHT-GRAMS control to the recorded weight of the sample. -
Page 15: Ordering Information
MA-1040 Magnetic Analyzer Ordering Information Ordering Information Components for the MA-1040 analyzer can be ordered using one of the following methods: • Call Customer Service at (770) 662-3636 • Access the Micromeritics web site at www.micromeritics.com • Contact your local sales representative When ordering, please use the information provided below to place your order.
