Coopers of Stortford K779 Instructions For Use

Tyre Titan Compact Air Compressor
Please read and retain these instructions for future reference

Technical Specifications

1. Input Voltage: USB Connector ≥5VDC, 1A
2. Maximum Current:5A
3. No-load Current:＜2A
4. Air Flow:15L/min
5. Length of Exposed hose:13±0.5cm/5.1±0.20inch
6. Net Weight:462g/1lb
Battery type: Lithium battery
Voltage: 12.8V
Ampage < 2A

ASSEMBLY INSTRUCTIONS / INSTRUCTIONS FOR USE:

Unpack the components carefully. Please check all parts have been removed from the packaging.
1. Connect one end of air hose to the air outlet of the inflator and tighten clockwise, connect the other end
of the hose to the tyre valve core and press the buckle.
2. Press "UNIT" button to switch four different units: PSI,BAR、KPA、kg/cm².
3. The "+" and "-" buttons are used for setting the pressure value. You can adjust pressure slowly by
tapping the button, and you can adjust pressure quickly by pressing the button for a longer time. When
it comes to the desired pressure value, the value will flicker for 4 seconds and be set automatically, or
you can press the "UNIT" to set it.
4. Press the "Power" button and the inflator begins to pump up the tire. It will shut off automatically when
the proper tyre pressure is reached.
5. After the inflation, remove the end of the tyre inflator from the air nozzle.
Notice
To prevent over inflation of a tyre, please refer to the recommended pressure value of the car's manual
before the inflation. Or refer to the marking of a tyre on your bicycle.

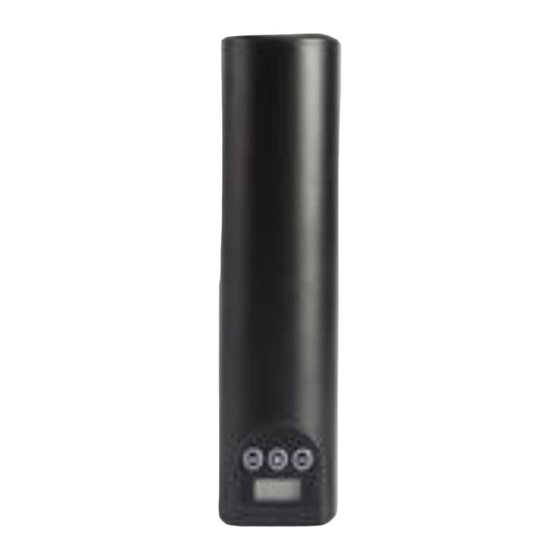

K779

Dimensions

5.5 x4.5 x20cm
•
KEEP IN YOUR GLOVE BOX
•
PUMP UP TYRES OR SPORTS GEAR ANY TIME
ANYWHERE WITH THIS CORDLESS AIR COMPRESSOR
•
RECHARGEABLE BY USING THE USB CORD SUPPLIED
•
ITS VERY POWERFUL ENOUGH TO INFLATE RAPIDLY UP
TO 150 PSI.
•
TURNS OFF AUTOMATICALLY AT THE PRESSURE YOU
SET ON LED DISPLAY
•
COMPLETE WITH 4 DIFFERENT NOZZLES
•
FITS NEATLY IN POUCH SUPPLIED
Instructions for Use
v001: 16/03/22
