Robus RCRX200DS Instruction Manual

RX CONNECT 200W WIFI DIMMER, SCREW CONNECTOR
RCRX200DS
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or use of
this product, consult a competent electrician
Product technical information and specification may change over time without prior notification. For the latest technical
information please visit our web site www.robus.com.au and www.robusled.co.nz
-20°C < Ta < +40°C, 220-240V ~ 50Hz, Class II, IP20, Min. Load: 15W Resistive, 3W Inductive/LED;
Max. Load: 250W Resistive, 200W Inductive/LED.
Trailing edge dimmer for resistive, inductive LV and capacitive LED dimmable lighting loads, via ROBUS
CONNECT App, WIFI.
Note: DO NOT CONNECT TO NON-DIMMABLE LAODS
Installation
1. Ensure mains supply is switched off before
commencing work.
2. Open the terminal cover using a flat screw driver.
ON/OFF switch:

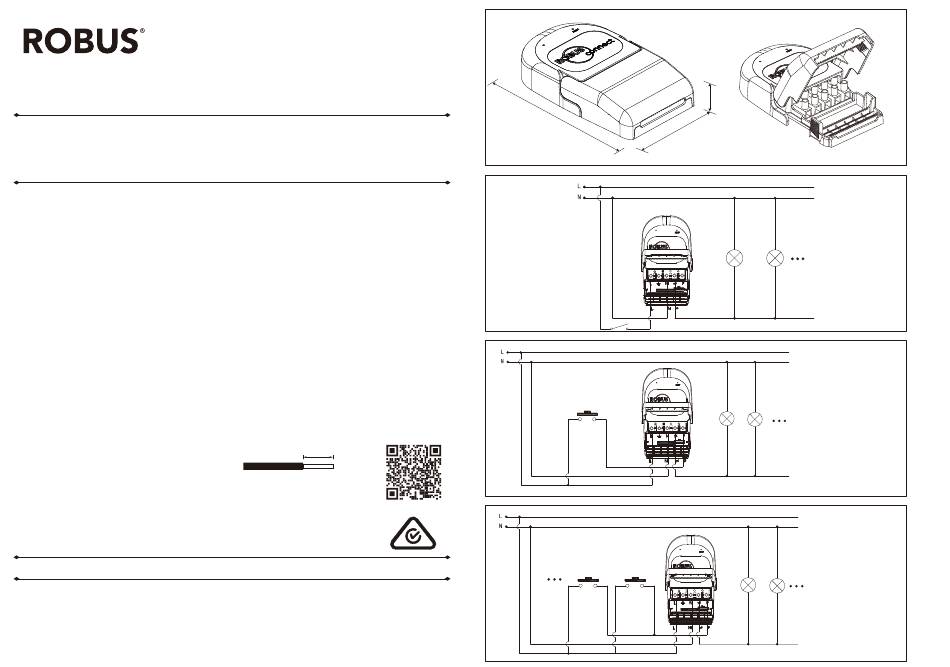

3. Connect the dimmer to circuit as per figure 2.
For use with retractive switch:
4. Connect dimmer to the circuit as per figure 3, 4,
5 & 6.
5. Multiple dimmers can be controlled via
retractive switch for dimming and on/off control
6. More than one dimmer cannot be connected to
control the same load in parallel
7. All lamps/ drivers on the circuit should be the
same type
Pair via Robus Connect APP: Follow instruction
in the APP.
8. Download ROBUS CONNECT App from ROBUS
website: Register and login to the App.
The Installation must be carried out by a qualified electrician
LED Group Australia Pty Limited
Suite B, 2 Pittwin Road Tel: 07 3890 5444
Capalaba Fax: 07 3890 4777
Queensland 4157 Email: purchases@robus.com
Australia Website: www.robus.com.au
Issue 1 151220
INSTRUCTION MANUAL
Note:
Pairing Mode
On/ Off Switch
1. Turn switch on for 10s
2. Turn switch On/ Off 3 times within 10s.
Lights will flash. Follow instructions in the
app
Retractive Switch
1. Press the retractive switch rapidly 3 times.
Lights will flash. Follow instructions in the
app
Retractive Switch Dimming:
1. Short press within 0.5s to turn the fitting on
or off.
2. Press and hold over 0.5s: Hold the retractive
switch to dim the load light up or down.
Power Cable
10mm
0.75-2.5mm
2
Scan QR to
download the APP
LED Group
Crowe Hogwarth Tel: +64 3668 5285
72 Trafalgar Square Email: nz_purchases@robus.com
NELSON 7010 Website: www.robusled.co.nz
New Zealand
120mm
68mm
Retractive switch
(Self-reset
switch)
Retractive switch Retractive switch
(Self-reset (Self-reset
switch) switch)
25mm
1
2
3
4
