Summary of Contents for BioZone BASIC SS 10G

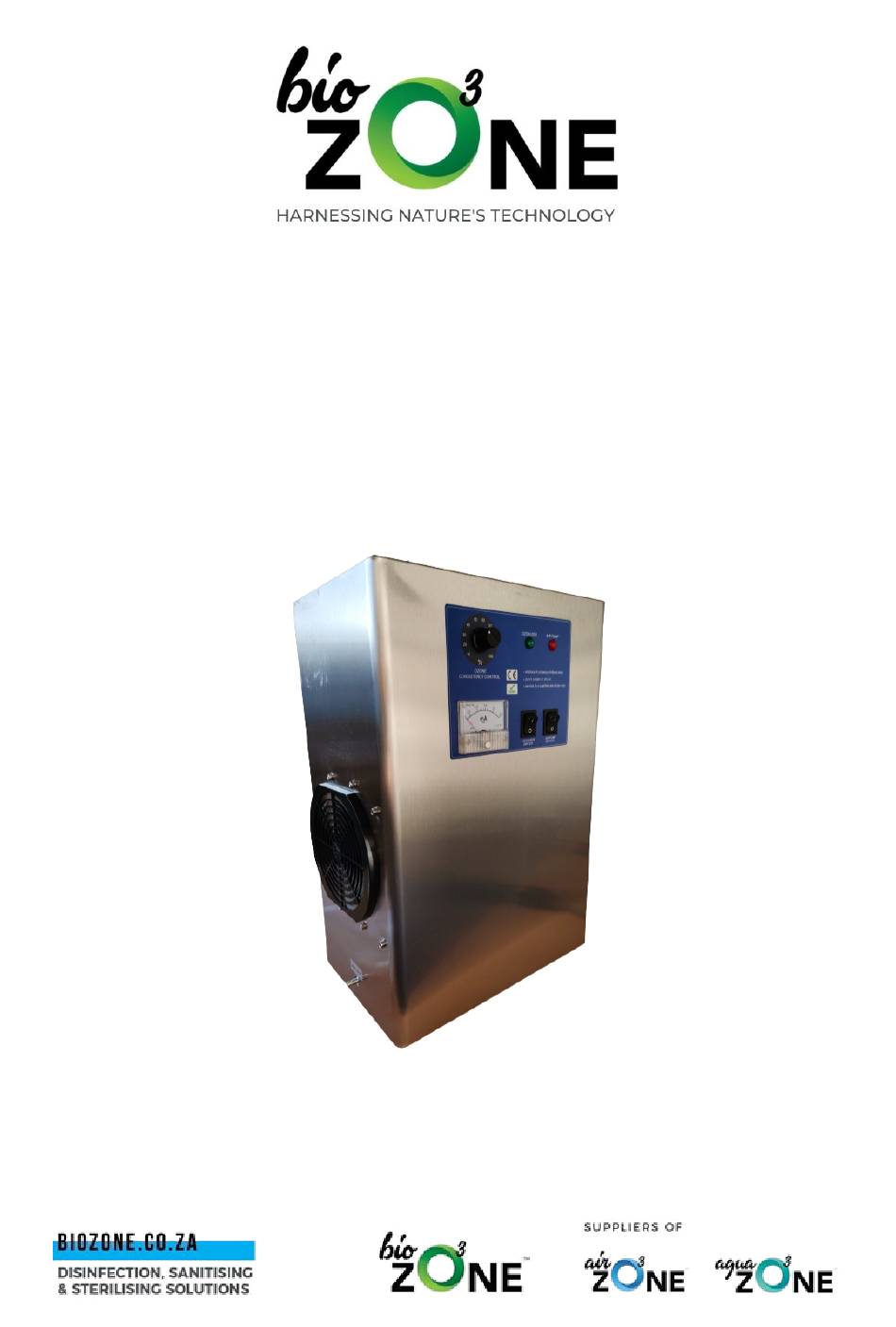

- Page 1 BIOZONE BASIC SS 10G USER MANUAL OZ-3G / OZ-5G / OZ-7G / OZ-10G / OZ-15G Before installing and operating, please read the user manual carefully. Please keep this user manual for future reference.
- Page 2 NOTE ● The ozone generator should be installed in a clean and dry place with good air circulation. ● To extend the service life, please keep the ozone generator clean and keep it far from water and moisture. ● Some components and parts indicated in this user manual and graphic illustration are available to purchase separately.
- Page 3 ● Indoor installation only, with electrical power supply of 220V/50Hz AC power or 110V50-60Hz. ● Ambient temperature: -10 degrees celsius to 37 degrees celsius. ● Ambient humidity: 90% ● The ground for equipment installation must be horizontal, and the equipment shall be placed on the ground and steadily supported.
-
Page 4: Table Of Contents
CONTENTS PREFACE COMPOSITION Table 2 Technical parameters EXTERNAL APPEARANCE INTERNAL STRUCTURE MAINTENANCE GENERATOR IMAGE AND INSTRUCTION WITH INTERNAL HEATING AND DRYING TUBE 10 Instruction for heating and drying tube OPERATION AND CONNECTION METHOD OF OZONE GENERATOR WITHOUT AIR DRYING AND OXYGEN APPARATUS OPERATION AND CONNECTION METHOD OF OZONE GENERATOR WITH AIR-DRYING OR OXYGEN APPARATUS Notice items while using silica gel drying tank... - Page 5 As one of the most powerful oxidants. Ozone Is a colourless gas with little offensive smell of grass, and is generally -admitted environmentally friendly disinfectant.Ozone is the Allotropes of oxygen, with the same element composition but different structural appearance. Their performances are quite different. Ozone shows very powerful oxidation capacity.
- Page 6 enterics and fish, polluted gas rubber and chemical factories can all be decomposed and eliminated by ozone. Ozone works as a catalyst in pesticide synthesis, but to some pesticide remains, it can also oxidize and decompose them. Food Processing Given its powerful sterilization capacity and advantage of zero polluted remains, ozone is widely used in the food processing industry for disinfection and stink removal, mould control and refreshing.
-
Page 7: Composition
COMPOSITION Generator unit (electrical circuit board, high voltage generator, discharge chamber), stainless steel external cabinet, 65L air pump (maybe some products are not equipped with 65L air pumps), ammeter, 150 type fan from Taiwan, connection tube line, ozone regulating apparatus, indicating light. TECHNICAL PARAMETERS AND PRODUCT IMAGES (There may be changes in the parameters and product images) Technical parameters... -
Page 8: External Appearance
EXTERNAL APPEARANCE External appearance Switch for air pump (if eligible pressure Oxygen inlet 6.5mm Ozone resisting soft duct compressed gas source is supplied 5mm*8mm along with equipment delivery is from outside, there may not be air pump for choice integrated) Power switch for whole equipment Power line Ozone regulating turn button... -
Page 9: Internal Structure
Air outlet 06.5mm Ozone resisting soft duct 05mm*8mm along with equipment Table of technical parameters delivery is for choice Ozone outlet 0.65mm Ozone-resisting soft duct 5mm*8mm along with equipment delivery is for choice INTERNAL STRUCTURE Fig.5 Internal structure Table 4 Illustration to internal structure Regulation resistance for current 20 Circuit board regulating... -
Page 10: Maintenance
MAINTENANCE ● Daily Maintenance ● Take the two screws then wash the fan cover ● After working for some time, dust will clog the stainless steel fence which is used to filter the air, causing insufficient heat dissipating and damaging the equipment. Periodically wash, once every two weeks as necessary. -
Page 11: Instruction For Heating And Drying Tube
Table 5 Instruction of product with heating and drying tube to internal structure 24 Drying tube Temperature control thermostat, stop heating while the temperature is higher than 60C Switch for heating The ozone generator stops while heating Heating tube has the specification of 9.5mm*200mm capacity <400w and 220V 50/60Hz Instruction for heating and drying tube... -
Page 12: Operation And Connection Method Of Ozone Generator Without Air Drying And Oxygen Apparatus
OPERATION AND CONNECTION METHOD OF OZONE GENERATOR WITHOUT AIR DRYING AND OXYGEN APPARATUS ● Operation and connection method of ozone generator without air-drying or oxygen apparatus are shown in Fig.9. Connect air outlet 7 directly to oxygen inlet 9. ● Ozone generator without air-drying or oxygen apparatus: does not increase system cost and it is suitable for application with low demand of ozone production since the ozone production is unstable and is affected by the environment humidity and purity, normally it is advised to use in a clean... -
Page 13: Supplying Oxygen To Ozone Generators With Oxygen Generators
Supplying oxygen to ozone generators with oxygen generators. ● While using an oxygen generator to supply oxygen to the ozone generator, lead oxygen from oxygen generator to oxygen inlet 9 (fig.4) Leave air outlet 7 of ozone generator in this manual (fig.4) un-connected, and air pump switch 2 (fig.4) off. -
Page 14: Service And Warranty
● No ozone, little working electric current, ozone light bright (with gas output, but not ozone) Dismantle ground wire of a high voltage unit (black or brown). Clamp the ground wire to make a voltaic arc on the external shell of the equipment (grounding pole of ozone generator tube). Big voltaic arc (more than 10mm) indicates that the ozone generator tube is damaged;...
