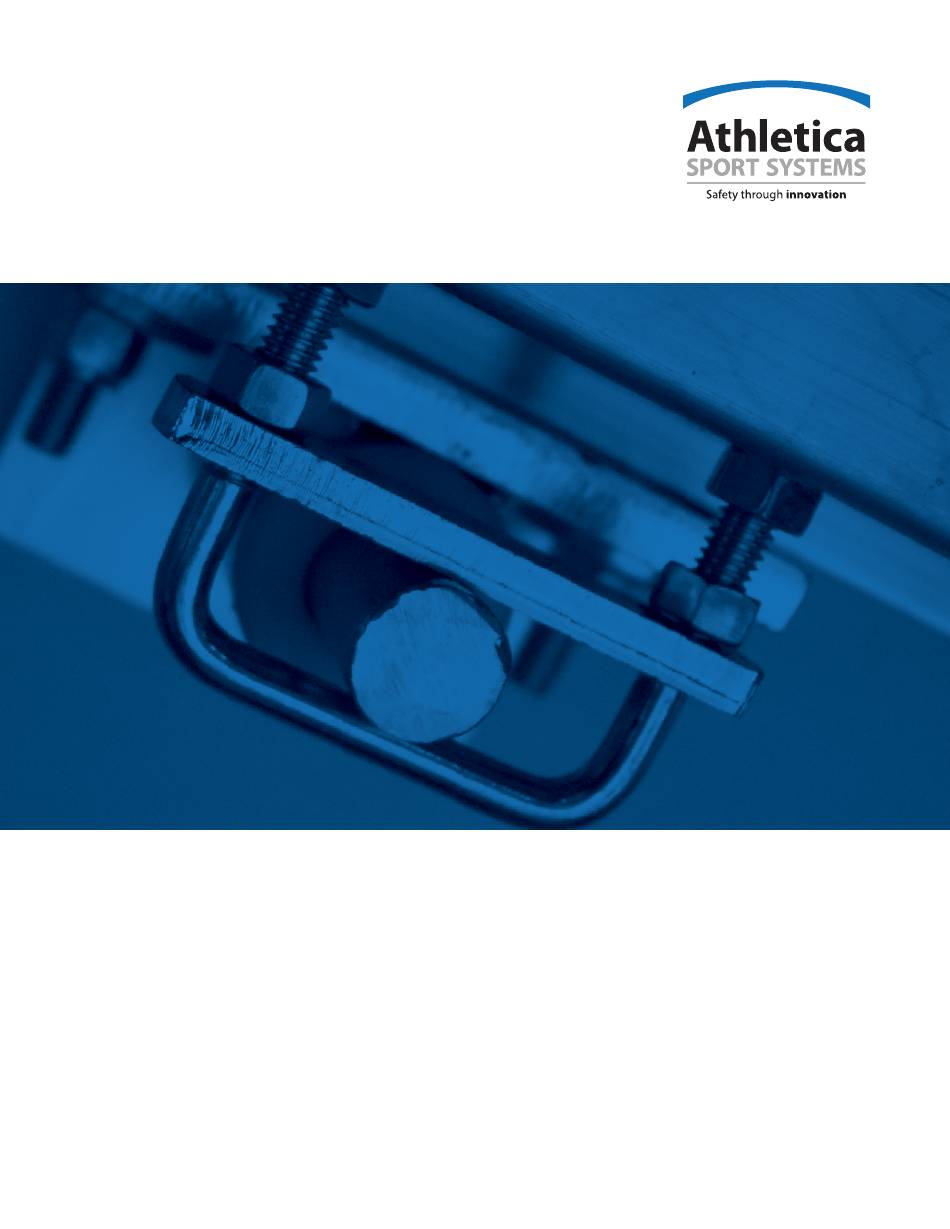

- Page 1 GlassFlex® adjustment Athletica O&M manual 11/2020...
- Page 2 U-Bolts to change the angle of the GlassFlex® Buffer and Channel. U-Bolt Each U-Bolt will have a GlassFlex® Buffer resting in it. Typically, each section of glass channel will have two U-Bolts to adjust, while smaller sections of glass channel may have only one U-Bolt to adjust.
- Page 3 GlassFlex® adjustment Product Manual How to adjust leaning You will need to access the U-Bolts through both the top plate and from the back. To gain access though the top plate, locate and remove top plate plugs by unscrewing the single screw that fastens each one down to the frame.
- Page 4 GlassFlex® adjustment Product Manual Step 3: Adjusting U-Bolts and GlassFlex® Buffers to level shielding n If shielding is leaning towards the ice surface more than 1/4” over 3 feet, loosen top nuts. fig. 1 fig. 2 Loosen the top nuts (fig. 1) inside the aluminum tube which line up to the shielding you want to lean back from ice side.
- Page 5 Start to tighten the top nuts (fig. 5) through the access holes inside the aluminum tube. Tighten the two top nuts equally to ensure the bottom on the U-Bolt remains level. Repeat this for both U-Bolts supporting a single section of GlassFlex® channel until the shielding leans towards the ice surface (fig. 6).
- Page 6 DO NOT OVERTIGHTEN THESE NUTS AS THE BUFFER WILL NOT PERFORM AS INTENDED. Step 4: Replace top plate plugs and backer plastic. Repeat for each board section. Replace the top plate plugs and backer plastic, and repeat steps 1-3 for each dasher panel with GlassFlex®. Warranty...
- Page 7 554 Parkside Drive, Waterloo, Ontario, Canada N2L 5Z4 519-747-1856 720 Innovation Drive, Shakopee, Minnesota, USA 55379 763-249-7465 athletica.com...
