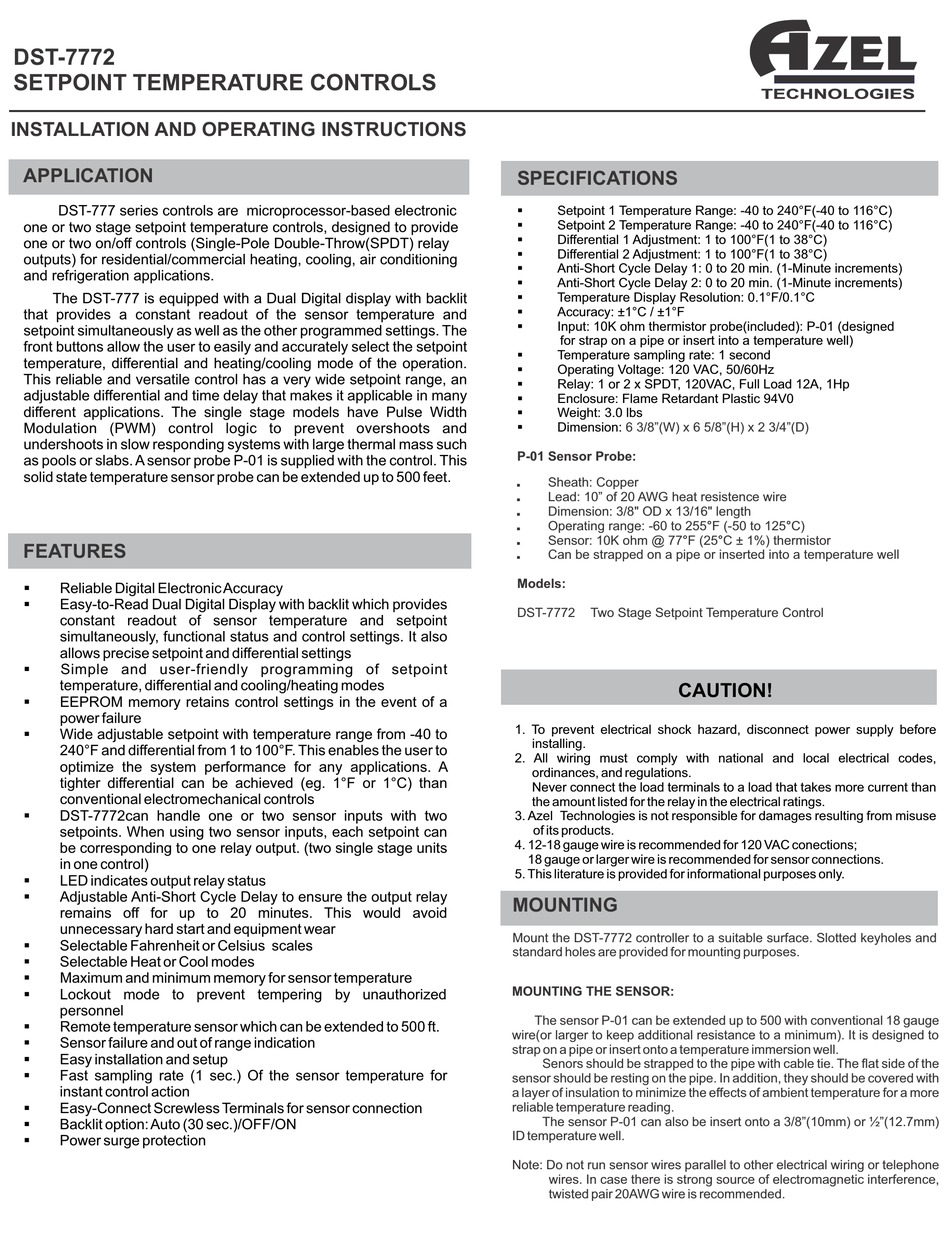

DST-7772
SETPOINT TEMPERATURE CONTROLS
INSTALLATION AND OPERATING INSTRUCTIONS
APPLICATION
DST-777 series controls are microprocessor-based electronic
one or two stage setpoint temperature controls, designed to provide
one or two on/off controls (Single-Pole Double-Throw(SPDT) relay
outputs) for residential/commercial heating, cooling, air conditioning
and refrigeration applications.
The DST-777 is equipped with a Dual Digital display with backlit
that provides a constant readout of the sensor temperature and
setpoint simultaneously as well as the other programmed settings. The
front buttons allow the user to easily and accurately select the setpoint
temperature, differential and heating/cooling mode of the operation.
This reliable and versatile control has a very wide setpoint range, an
adjustable differential and time delay that makes it applicable in many
different applications. The single stage models have Pulse Width
Modulation (PWM) control logic to prevent overshoots and
undershoots in slow responding systems with large thermal mass such
as pools or slabs. A sensor probe P-01 is supplied with the control. This
solid state temperature sensor probe can be extended up to 500 feet.
FEATURES
§ Reliable Digital Electronic Accuracy
§
Easy-to-Read Dual Digital Display with backlit which provides
constant readout of sensor temperature and setpoint
simultaneously, functional status and control settings. It also
allows precise setpoint and differential settings
§
Simple and user-friendly programming of setpoint
temperature, differential and cooling/heating modes
§ EEPROM memory retains control settings in the event of a
power failure
§
Wide adjustable setpoint with temperature range from -40 to
240°F and differential from 1 to 100°F. This enables the user to
optimize the system performance for any applications. A
tighter differential can be achieved (eg. 1°F or 1°C) than
conventional electromechanical controls
§
DST-7772can handle one or two sensor inputs with two
setpoints. When using two sensor inputs, each setpoint can
be corresponding to one relay output. (two single stage units
in one control)
§
LED indicates output relay status
§ Adjustable Anti-Short Cycle Delay to ensure the output relay
remains off for up to 20 minutes. This would avoid
unnecessary hard start and equipment wear
§
Selectable Fahrenheit or Celsius scales
§ Selectable Heat or Cool modes
§
Maximum and minimum memory for sensor temperature
§
Lockout mode to prevent tempering by unauthorized
personnel
§ Remote temperature sensor which can be extended to 500 ft.
§
Sensor failure and out of range indication
§
Easy installation and setup
§
Fast sampling rate (1 sec.) Of the sensor temperature for
instant control action
§
Easy-Connect Screwless Terminals for sensor connection
§
Backlit option: Auto (30 sec.)/OFF/ON
§ Power surge protection
SPECIFICATIONS
§ Setpoint 1 Temperature Range: -40 to 240°F(-40 to 116°C)
§
Setpoint 2 Temperature Range: -40 to 240°F(-40 to 116°C)
§ Differential 1 Adjustment: 1 to 100°F(1 to 38°C)
§
Differential 2 Adjustment: 1 to 100°F(1 to 38°C)
§ Anti-Short Cycle Delay 1: 0 to 20 min. (1-Minute increments)
§
Anti-Short Cycle Delay 2: 0 to 20 min. (1-Minute increments)
§ Temperature Display Resolution: 0.1°F/0.1°C
§
Accuracy: ±1°C / ±1°F
§ Input: 10K ohm thermistor probe(included): P-01 (designed
for strap on a pipe or insert into a temperature well)
§
Temperature sampling rate: 1 second
§ Operating Voltage: 120 VAC, 50/60Hz
§
Relay: 1 or 2 x SPDT, 120VAC, Full Load 12A, 1Hp
§ Enclosure: Flame Retardant Plastic 94V0
§
Weight: 3.0 lbs
§ Dimension: 6 3/8"(W) x 6 5/8"(H) x 2 3/4"(D)
P-01 Sensor Probe:
Sheath: Copper
,
Lead: 10" of 20 AWG heat resistence wire
,
Dimension: 3/8" OD x 13/16" length
,
Operating range: -60 to 255 F (-50 to 125 C)
,
Sensor: 10K ohm @ 77 F (25 C ± 1%) thermistor °
,
Can be strapped on a pipe or inserted into a temperature well
,
Models:
DST-7772 Two Stage Setpoint Temperature Control
CAUTION!
1. To prevent electrical shock hazard, disconnect power supply before
installing.
2. All wiring must comply with national and local electrical codes,
ordinances, and regulations.
Never connect the load terminals to a load that takes more current than
the amount listed for the relay in the electrical ratings.
3. Azel Technologies is not responsible for damages resulting from misuse
of its products.
4. 12-18 gauge wire is recommended for 120 VAC conections;
18 gauge or larger wire is recommended for sensor connections.
5. This literature is provided for informational purposes only.
MOUNTING
Mount the DST-7772 controller to a suitable surface. Slotted keyholes and
standard holes are provided for mounting purposes.
MOUNTING THE SENSOR:
The sensor P-01 can be extended up to 500 with conventional 18 gauge
wire(or larger to keep additional resistance to a minimum). It is designed to
strap on a pipe or insert onto a temperature immersion well.
Senors should be strapped to the pipe with cable tie. The flat side of the
sensor should be resting on the pipe. In addition, they should be covered with
a layer of insulation to minimize the effects of ambient temperature for a more
reliable temperature reading.
The sensor P-01 can also be insert onto a 3/8"(10mm) or ½"(12.7mm)
ID temperature well.
Note: Do not run sensor wires parallel to other electrical wiring or telephone
wires. In case there is strong source of electromagnetic interference,
twisted pair 20AWG wire is recommended.
