Instruction Manual

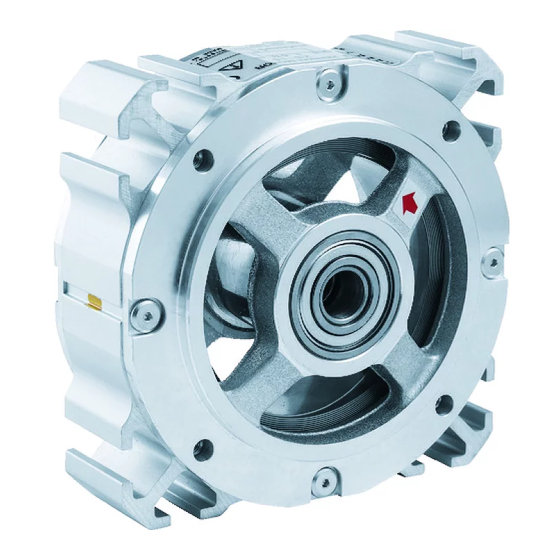

ZENMAI MOTOR
For safe and correct operation of the product, please be sure to read this manual and fully
understand its content before use.
After reading, keep the manual safe so that you can find and use it readily.
In case of resale or transfer of this product, make sure to transfer the manual to the new owner.
ZS-02
ZS-05
ZS-08
ZS-16
ZS-24
ZW-16
16
ZW-32
32
ZW-48
ZW-48
48
BM-10151a
Issued in September 2017
Advertisement
Table of Contents
Summary of Contents for Endo ZS-02
- Page 1 Instruction Manual ZENMAI MOTOR ZS-02 ZS-05 ZS-08 ZS-16 ZS-24 ZW-16 ZW-32 ZW-48 ZW-48 For safe and correct operation of the product, please be sure to read this manual and fully understand its content before use. After reading, keep the manual safe so that you can find and use it readily.
-
Page 2: Introduction
Introduction Thank you very much for purchasing the Zenmai Motor. To prevent any trouble and obtain the best performance, please be sure to read this Instruction Manual and fully understand its content. Notation in this Instruction Manual Hazard levels This product is designed with ultimate priority on the safety of operators. However, due to the nature of the system, there are risks that cannot be removed. -
Page 3: Table Of Contents
Contents Introduction..........................1 Notation in this Instruction Manual .................. 1 Hazard levels ...........................1 1. Signs and Precautions for Handling................. 3 Labels ........................3 1-1-1 Types of label and nameplate ..................3 1-1-2 Locations of label and nameplate ................3 Precautions for handling..................4 2. -
Page 4: Signs And Precautions For Handling
The label and nameplate are attached to the following locations of the product as shown below. The label and nameplate are attached to the following locations of the product as shown below. n ZS-02 ZS-05 ZS-08, ZS-16, ZS-24 n ZW-16, ZW-32, ZW-48... -
Page 5: Precautions For Handling
Precautions for handling Incorrect handling of this product may cause damage to the product itself as well as an injury. Thoroughly read the following precautions and be sure to heed the instructions when handling the machinery. WARNING l Do not perform any modification or disassembly of the product. l Do not use the product overhead or in any locations where an injury may result. -
Page 6: Unpacking And Installation
This product is packaged for delivery in a cardboard box. When transporting the package, do not drop or apply excessive impact to it. Standard product (1) Zenmai Motor ZS-02 ZS-05 Weight: Approximately 1.2 kg ZS-08, ZS-16, ZS-24 Weight: Approximately 1.3 kg ZW-16, ZW-32, ZW-48 Weight: Approximately 2.3 kg... -
Page 7: Product Description
Product Description Components 3-1-1 Main equipment of Zenmai Motor (external view) Ref. No. Part name Casing Cover Plate (transparent) Deep groove ball bearing Hexagon socket head cap screw 3-1-2 Main equipment of Zenmai Motor (internal view) (internal view) (internal view) (internal view) (internal view) ZS type... -
Page 8: Product Specifications
Product specifications Model ZS-02 ZS-05 ZS-08 ZS-16 ZS-24 ZW-16 ZW-32 ZW-48 Maximum torque 0.2 N∙m 0.5 N∙m 0.8 N∙m 1.6 N∙m 2.4 N∙m 1.6 N∙m 3.2 N∙m 4.8 N∙m Maximum number of turns Main equipment mass 1.2 kg 1.2 kg 1.3 kg... -
Page 9: Shaft Installation
Shaft installation In order to operate the Zenmai Motor, it is necessary to install a shaft on the main equipment. CAUTION l Do not hold the keyway when you install the shaft. The edge of the keyway may cause an injury. 4-2-1 Installation of optional shaft set Torque is generated in the direction of the arrow on the label attached to the main... -
Page 10: Installation Procedures
Installation procedures CAUTION l Prepare support members that have a strength of 1 kN or more. l Use at least 2 pre-assembly insertion nuts when an installation is performed using the grooves on the side of the main equipment. 4-3-1 Example of installation using grooves on side of main equipment You can use the grooves on the side of the main equipment for the installation. -
Page 11: Torque Adjustment
Perform the initial turn and other settings as indicated in the graphs below. Perform the initial turn and other settings as indicated in the graphs below. [Torque and number of turns] Model: ZS-02 Model: ZS-05 Model: ZS 05 Torque (N m) -
Page 12: Maintenance
Maintenance CAUTION l If you notice any damage or deformation, stop using the product. Daily inspections are required for the product to be used safely and properly. If any failure is found in the inspections, the relevant parts must be replaced. For details, contact us or your dealer. -
Page 13: Outline Drawings
Outline Drawings Drawings of main equipment and shaft installation Mounting holes (4 locations) Groove details Mounting hole details ZS type ZS type with single axis shaft ZS type with dual axes shaft dual axes shaft shaft M4 Depth 12 ZW type ZW type with single axis shaft type type... -
Page 14: Parts List
Parts List Optional parts 9-1-1 Single axis shaft set ZS type Ref. No. Part No. Part name Quantity Quantity LBP001953 Single axis shaft set LBP001957 − Shaft set − − Shaft P2B402517 − − Key LBP001975 − Set collar Set collar Set collar −... -
Page 15: Dual Axes Shaft Set
9-1-2 Dual axes shaft set ZS type Ref. No. Part No. Part name Quantity LBP001954 Dual axes shaft set LBP001958 − Shaft set − − Shaft P2B402517 − − Key LBP001975 − Set collar − − Set collar P2B402516 − − Hexagon socket set screw Hexagon socket set screw Hexagon socket set screw ZW type... - Page 16 ENDO KOGYO CO., LTD. ENDO KOGYO CO., ENDO KOGYO CO., ENDO KOGYO CO., ENDO KOGYO CO., Head Office: 3-14-7, Akiba-cho, Tsubame, Niigata, Japan 7, Akiba 7, Akiba Akiba- cho, Tsubame, Niigata, Japan cho, Tsubame, Niigata, Japan Tel. 0256-62-5133 Tel. 025 Tel.
