Mart TS-21 Quick Start Manual

V. Repair and maintenance
All repairs of the TWILIGHT SWITCH TS-21 are performed by the manufacturer. The device does not require
any maintenance. When the sensor becomes contaminated, clean it with a clean, damp cloth. The device does
not require any additional maintenance.
The manufacturer guarantees the correct operation of the TS-21 TWILIGHT SWITCH. The warranty period is
36 months from the date of sale. The warranty is extended by the time of repair. Warranty repairs are
performed by the manufacturer free of charge after the AUTOMAT is delivered to the manufacturer. Improper
use of the device or independent modifications to it will void the warranty.
www.mart-electronics.eu
Made in Europe
The TS-21 twilight switch meets the requirements of the European Union Directives
- Directive LVD 2014/35/UE - Low Voltage Directive of 26 February 2014
- Directive EMC 2014/30/UE - Eletromagnetic Compatibility Directive of 26 February 2014
In order to protect the environment, do not throw away used electrical appliances
and electronics together with municipal waste. Used equipment should be delivered to
collection points for recycling free of charge. Any information on this can be obtained
at sellers, distributors, manufacturer or on the Internet. The product's packaging is made of
ecological materials. The PVC packaging tape will be used while stocks last.
VI. Warranty Card

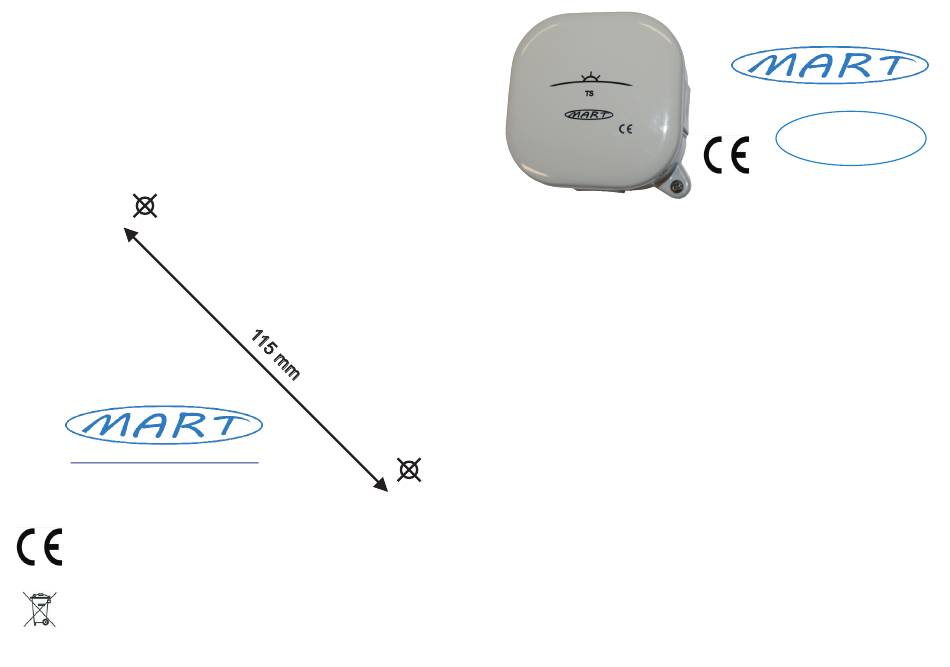

Fig. 3 .: Template for drilling holes
for installing the TS‑21 TWILIGHT SWITCH.
TWILIGHT SWITCH

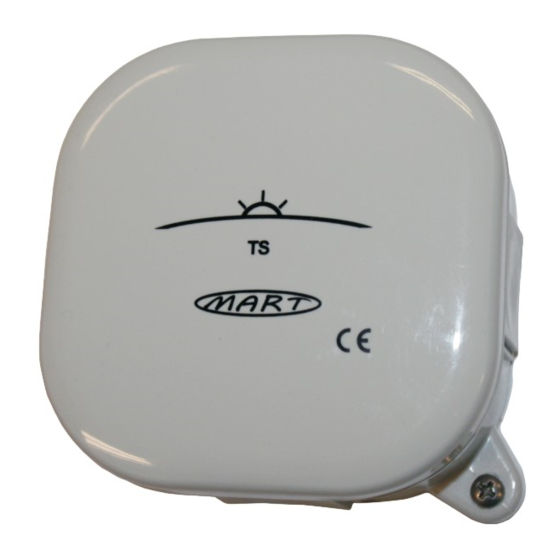

The TS-21 TWILIGHT SWITCH is designed to automatically switch the receiver on at dusk and switch it
off at dawn. Installation on a vertical surface, outdoors, in direct sunlight. Protection degree IP54.
II. PROPERTIES OF THE TS-21 TWILIGHT SWITCH
>> High switching power 16A (4000 W) 250VAC,
>> high inrush current (resistance to 100 A surge current)
>> precise logarithmic adjustment:
1 ... 10 lx - energy-saving compartment,
10 ... 100 lx - standard range,
100 ... 1000 lx - advertising switching range,
>> traffic lights (LED) informing about the operating status:
LED-1 - indication of 230V supply voltage on terminals 1,2,
LED-2 - signaling the presence of voltage on terminals 3,4,
LED-3 - signaling (without delay) of exceeding the set (set) lighting threshold,
>> quick assembly:
two screws for fixing to the wall,
cover mounted with "click" type latches.
The TS-21 TWILIGHT SWITCH uses a specialized OMRON G2RL-1-E-HR relay, designed to switch
various lighting lamps. The special design enables effective switching of lamps with an inrush current of up to
100 A per pulse.
The receivers switched on by THE TS-21 TWILIGHT SWITCH can be:
>> outdoor lighting of buildings,
>> street lighting,
>> lighting of exhibitions, shop windows, various types of advertisements etc.
>> drivers in closing and opening systems for roller shutters and window blinds,
3-YEAR
WARRANTY
type TS-21
I. PURPOSE
