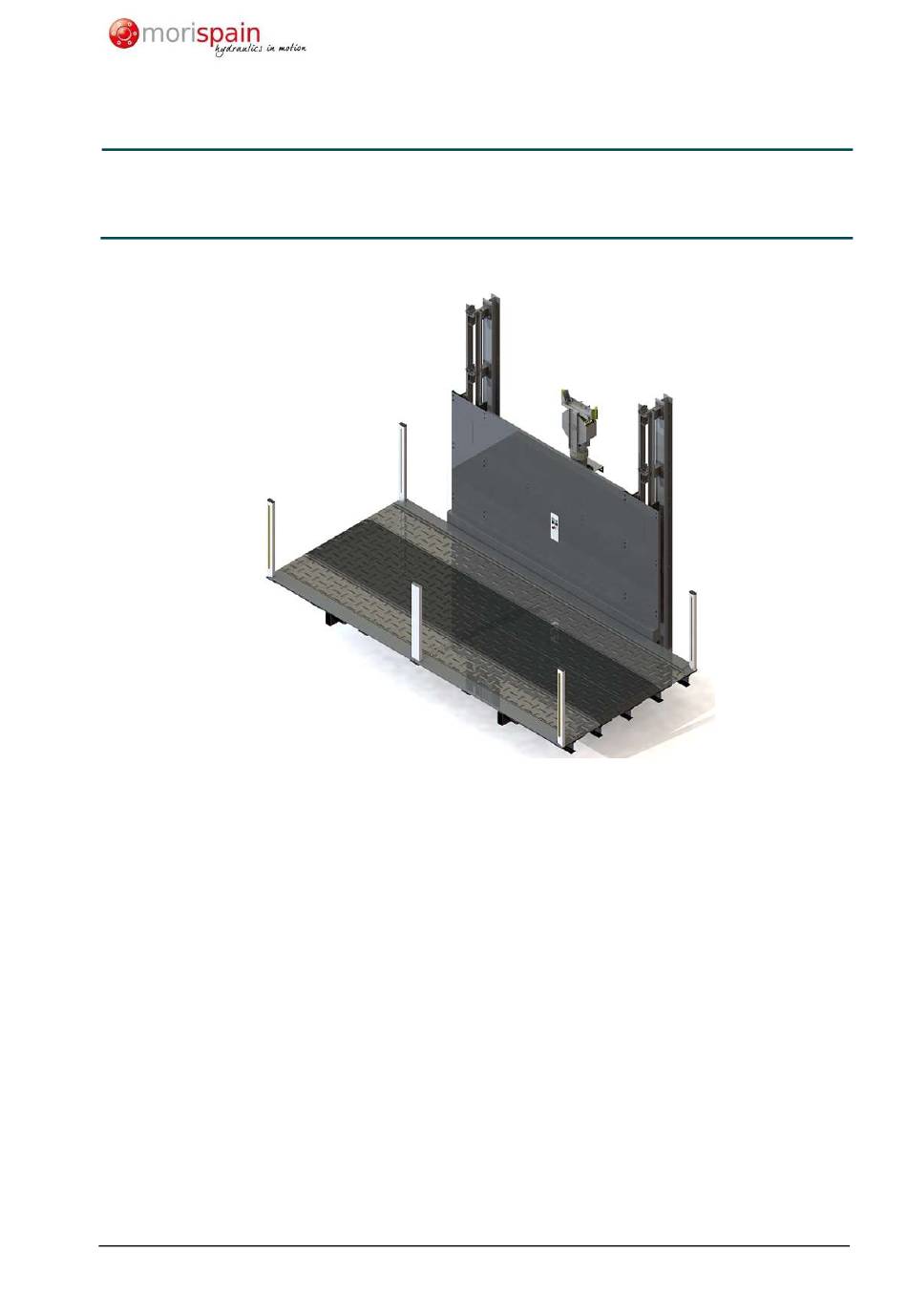

- Page 1 USER´s MANUAL CAR LIFT (MONTACOCHES) Modelo: MH KOMPACT Manufacturer : MORISPAIN S.A. Adresse: c\ Arangutxi 8, Polígono Industrial Júndiz 01015 Vitoria – Álava SPAIN 2019-NOVEMBER Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 1 de 28...
- Page 2 Serial Number : Building Adresse: NAme of Building Owner: Date of Car lift: Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 2 de 28...
-
Page 3: Table Of Contents
6.1. CAR OPERATION PANEL (C.O.P.) ................20 6.3. CONTROLLER ......................... 21 6.4. CONTROLLER CONDITIONS ..................21 7.1. RESCUE PROCEDURE ....................22 7.2. POWER SUPPLY FAILURE ................... 23 Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 3 de 28... - Page 4 8.2. MAINTENANCE RPOGRAM ..................25 8.3. MANUAL DOOR OPENING (ONLY FOR THE COMPETENT TECHNICIAN) ..27 8.4. MANUAL RESCUE (FOR THE COMPETENT TECHNICIAN ONLY) ....... 28 Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 4 de 28...
- Page 5 Max. Load: 3000 kg Complies with the provisions of the Machinery Directive 2006/42/EC. Complies with the provisions of the following harmonised standards: UNE-EN 81-41:2011 UNE-EN 12100:2012 Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 5 de 28...
-
Page 6: Scope Of This Manual
This document was drawn up by MORISPAIN S.A. and is intended for use by the owner. This manual is considered part of the equipment and, together with the rest of the documentation that accompanies it, must be given to the owner and kept in a good state of use and be accessible throughout the life of the equipment. -
Page 7: Safety Indications
Part 41: vertical platform lifts for use by persons with reduced mobility. - UNE-EN 12100:2012. Safety of machinery. General principles for design. Risk assessment and risk reduction. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 7 de 28... -
Page 8: Definitions
2.5. DEFINITIONS Installer: Person or company that assembles and installs the lift supplied by the manufacturer MORISPAIN S.A. Their tasks may include masonry, civil works, welding, mechanics, lighting or electricity. Owner: Person who has the power of disposal of the installation and is responsible for its operation and use. -
Page 9: To Be Taken Into Account By The Maintenance Organisation
- Must be able to provide a competent person for any inspection by an authorised third party or maintenance work on the building in the areas reserved for the maintenance organisation. - The need for regular maintenance. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 9 de 28... -
Page 10: Before Commisioning
Preventive maintenance shall be carried out to maintain the safety of the lift. Periodic checks of safety equipment help to locate faulty components before failure. ¡WARNING ! Attention shall paid following safety instructions. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 10 de 28... - Page 11 Fig. 1 Do not push / lean on doors. Fig. 2 Do not use in case of fire. Fig. 3 Do not allow use by unaccompanied children. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 11 de 28...
-
Page 12: Materials Used In The Car Lift
It is necessary to strictly comply with the specific standards in force in the country of use of the equipment. Do not dispose of equipment components in ordinary waste. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 12 de 28... -
Page 13: Introduction
The manufacturer declines all responsibility for any damage or injury to persons or other equipment resulting from the use of the hoist for any operation other than that for which it was designed. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 13 de 28... -
Page 14: General Description Of The Car Lift
5.2. GENERAL DESCRIPTION OF THE CAR LIFT Fig. 5 Front view of the lift and its components. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 14 de 28... - Page 15 Fig. 6 Rear view of the lift and its components Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 15 de 28...
- Page 16 Never remove electrical system guards when the system is energised. The lift's electrical systems are behind these guards and therefore there is a risk of electric shock if they are removed.. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 16 de 28...
- Page 17 The valve maintains the position of the cylinder. It closes automatically when the control panel cuts off the power supply or there is a power failure. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 17 de 28...
- Page 18 The owner must maintain the safety components in good condition. The maintenance company is responsible for these tasks, which include the following components: - Machine brake. - Speed limiter. - Wedging system. - Re-leveling system. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 18 de 28...
-
Page 19: Noise Emission
Blain L10 parachute valve (or similar) Safety components Certified according to Directive 2006/42/EC, and/or requirements of EN 81-41: Electric door lock. Not supplied by MORISPAIN S.A. To be guaranteed by the installer. 5.4. NOISE EMISSION The equivalent continuous A-weighted equivalent sound pressure level emitted by the lift is less than 70 dB(A). -
Page 20: Car Operation Panel (C.o.p.)
It is reduced to a call button, placed on a vertical pillar of the lift, or on the adjoining wall of the building. Optionally, it can be a key instead of a push button.. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 20 de 28... -
Page 21: Controller
- There is a time limit: if approximately 8 seconds elapse after the lift reaches the desired level and it is not accessed, then the door will automatically close. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 21 de 28... -
Page 22: Rescue Procedure
The technician shall initiate the manual rescue descent, by means of a hydraulic control that allows lowering at a slower speed. For further information, see section 8.4. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 22 de 28... -
Page 23: Power Supply Failure
The lift is able to perform this manoeuvre because it has a battery which automatically powers the safety systems and controls in the absence of external power. It is only possible to descend in level, not to go up. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 23 de 28... -
Page 24: Other Procedures
In the event of a fault, the push buttons on all levels will remain illuminated. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 24 de 28... -
Page 25: General Recomendations
If you detect any abnormal behaviour, contact your maintenance company immediately. Shut down the hoist in dangerous situations. 8.2. MAINTENANCE RPOGRAM Do not exceed the recommended maintenance intervals, unless otherwise stated by the manufacturer. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 25 de 28... - Page 26 Ropes Cover Pulley in Good conditions Car Frame fixations Ropes Installation Safety gear Accionament Rescue Procedure Lighting Electric safety chain Car calls Alarm devices Photocell Curtains Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 26 de 28...
-
Page 27: Manual Door Opening (Only For The Competent Technician)
1. Open the landing door lock with the emergency key. The lock returns to the closed position by itself after opening. Unlock the door. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 27 de 28... -
Page 28: Manual Rescue (For The Competent Technician Only)
Press the red emergency lowering lever on the distributor shown in the adjacent figure until the platform is on the ground. Manual de instrucciones del montacoches MH KOMPACT – rev. 2 Pág. 28 de 28...
