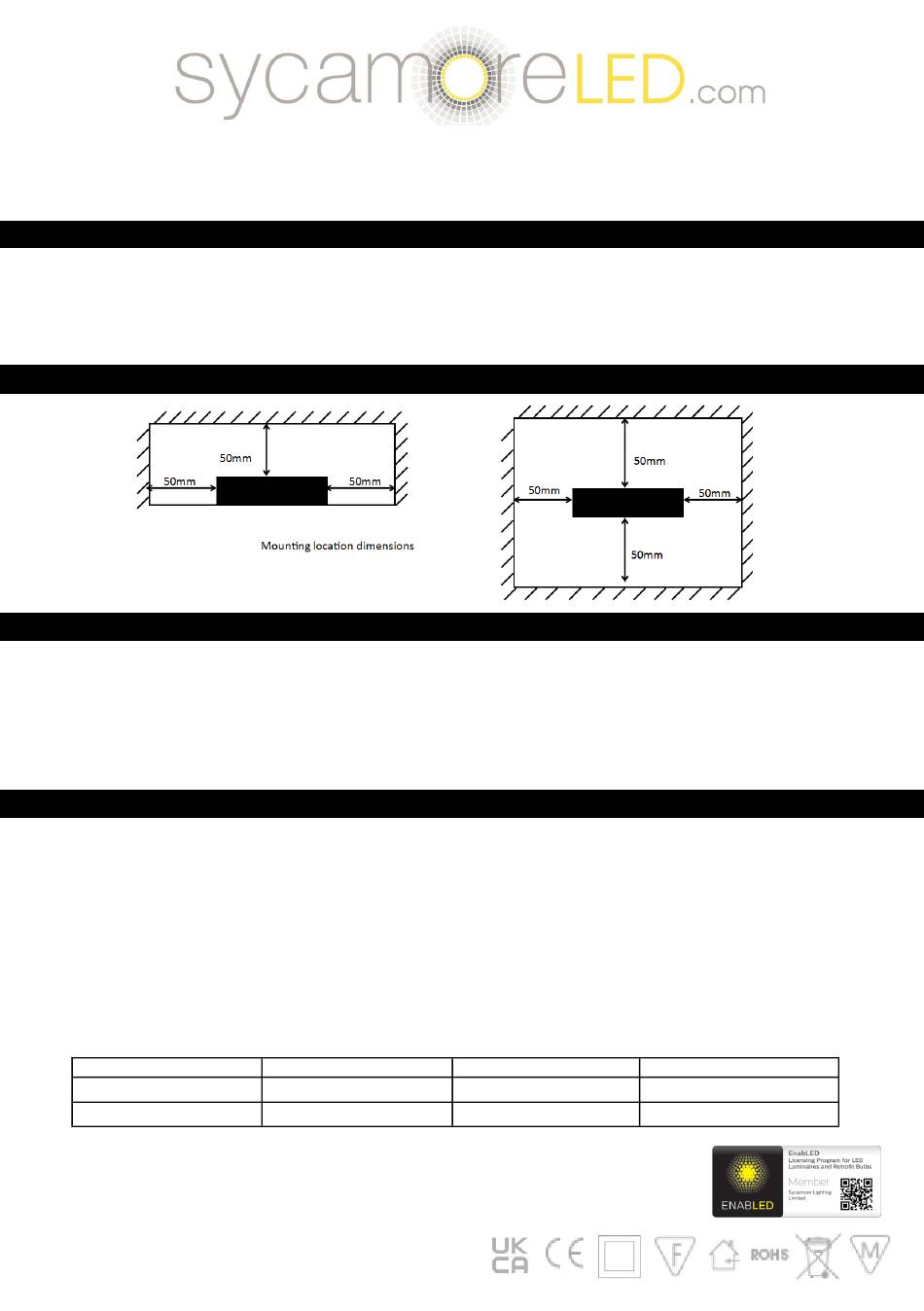

Sycamore SY2416 Installation Instructions

Thank you for purchasing this SycamoreLED.com product. Please make sure instructions are followed carefully prior to and during installation and product
is not altered, otherwise warranty may not be valid. For technical support or warranty information please visit www.sycamoreLED.com, or call our dedicat-
ed technical helpline +44 (0) 113 2866686.
1) Please read these instructions carefully before commencing any work
2) It is strongly recommended that this unit is installed by a qualified electrician
3) To prevent electrocution switch the power off at the mains supply before installing or maintaining this fitting
4) Ensure others cannot restore the electrical supply without your knowledge
5) The PSU must be rated 12 or 24VDC and be compatible with the pre-wired connector system of this product
6) Never exceed the wattage stated
1) This LED receiver is exclusively designed for 12 or 24 volt the Light Emitting Diode (LED) lamps used indoors.
1) The unit conforms to the directive 2004/108/EC for the electromagnetic compatibility and the low voltage directive 2006/95/EC.
2) The receiver can only be used with the LED lamps
3) The receiver is only suitable for use indoors. Protect the LED power supply against excessive heat (permissible operating temperature range
–20 to +45 degree C)
4) The loads indicated on the receiver must neither exceed nor below the following values; 0—48W at 12 volt and 0—96w at 24 volt
5) Connect the LED Lamps to the LED receiver with the correct polarity according to the schematic drawing
6) The maximum of the output cable to the LED Lamps should not exceed 2m in order to meet the EMC standard
7) If the LED receiver is used for purposes other than originally intended or it is connected in the wrong way, no liability can be taken over for
possible damages
Input voltage
Output voltage
Rated power
SycamoreLED.com
LS26 8XT
Technical helpline : 0113 2866686
*Please email sales@sycamoreled.com to register your product

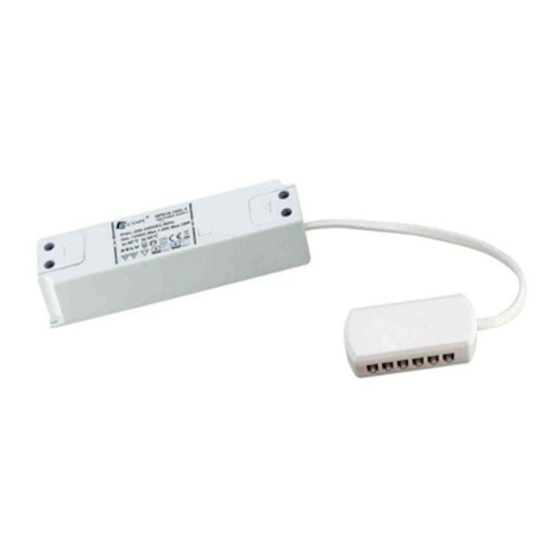

Installation instructions : Kinetic 12/24 volt Receiver
IMPORTANT—Please read prior to installation
Technical Information

APPLICATIONS

INSTALLATION

200-240v +/-10% 50Hz
12 or 24Vdc +/-0.5V
4Amp
Ambient Temperature ta:
Case Temperature tc:
Protection degree
Max 45 C
Max 80 C
IP20
