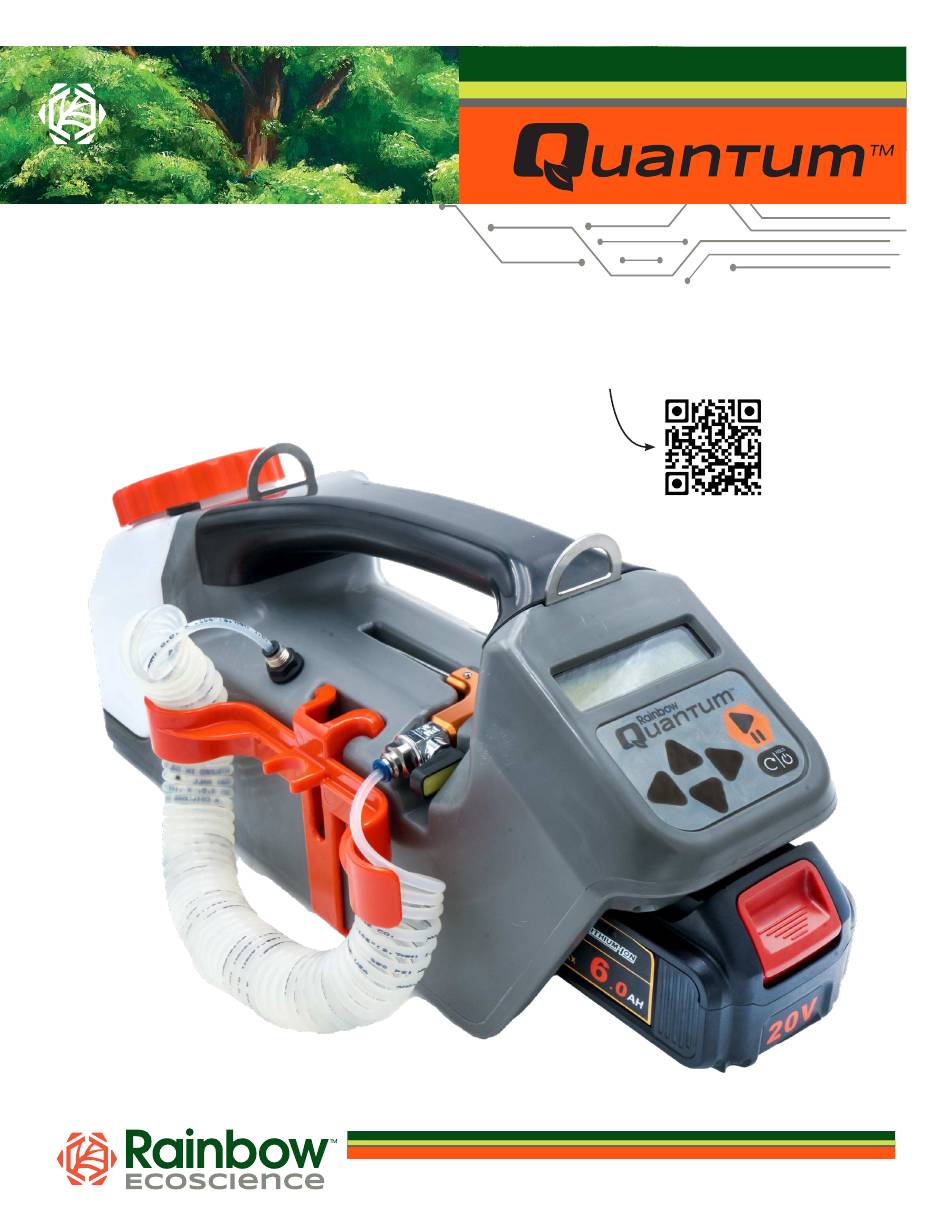

The Rainbow Quantum Micro-Injector represents

a new era in tree injection design and battery-

powered performance for the care of urban

ecosystems. The Quantum protects trees from

Digital Download of this Manual Available at:

deadly pests while doing minimal harm, using a

www.RainbowEcoscience.com/quantum

variable pressure system and plug-less tips. It is

Or scan here for the "How To" video

lightweight, accurate, and able to work all day.

Ordering & Tech Support: 877-272-6747 www.RainbowEcoscience.com

Table of Contents

Need help?

Do you have a question about the Quantum and is the answer not in the manual?

Questions and answers

Summary of Contents for Rainbow Quantum

Page 1 The Rainbow Quantum Micro-Injector represents a new era in tree injection design and battery- powered performance for the care of urban ecosystems. The Quantum protects trees from Digital Download of this Manual Available at: deadly pests while doing minimal harm, using a www.RainbowEcoscience.com/quantum...
Page 2: Table Of Contents
Starting The Device Priming The Device Calibrate Injecting With The Device Drilling Injection Sites Injecting Injections Wrap Up Storing Of The Device Quantum General Care & Storage Quantum Troubleshooting 10-12 Quantum Repair Instructions 12-15 Ordering & Tech Support: 877-272-6747 www.RainbowEcoscience.com...
Page 3: Quantum Overview
1 x Coiled Tubing Clip with Injection Tee Holster 2 x 15/64” High Helix Drill Reservoir Cap Bits Filter 1 x Quantum Maintenance O-Ring Fitting Coiled Tubing Clip With Injection Tee Holster 1 x Quantum Manual 1 x Storage Bag...
Page 4: Quantum Instruction For Use
Instructions For Use Set Up Your New Device Connect floating tee to the device by inserting Connect the other end of the one end of the coiled tubing into the ball valve tube into the straight push to Start by charging battery for at least 24 on the back of the injection tee handle.
Page 5: Calibrate
Instructions For Use Remove the plug from the reservoir priming port and insert injection tee tip into port. Turn the ball valve to the open position. press the start/ pause button and allow product to flow until there After completing the priming process, press are no visible air pause, then switch setting back to injection bubbles within the...
Page 6: Injecting With The Device
Instructions For Use 10mL Repeat the 10 ml calibration dose by pressing start to inject the now adjusted 10 ml dose into the graduated Use the up or down arrows to enter the actual amount cylinder. Continue the above steps 1-3 until the device of product injected into the graduated cylinder and distributes an accurate 10 ml dose.
Page 7: Drilling Injection Sites
Drilling Injection Sites Drill in avoid cavities or rot “pig tails” 15/64” healthy tissue Drill 3/4” 1” past bark Drill your injection sites into root flares as Use a 15/64” high helix drill bit and drill to a depth of ¾” to 1”, depending close to soil grade as possible.
Page 8: Injections Wrap Up
Instructions For Use STEPS close Repeat the injection Shut off ball valve before Close the ball valve and insert the tee into steps until you have proceeding to the next injection device holsters. completed the treatment. site. If you have completed injections for the day, proceed to purging the device (below). VIII.
Page 9: Storing Of The Device
Instructions For Use Purging Product From Lines (Back Into Reservoir) open Open the ball valve on the tee handle and Press the arrows left or right until the Press start/pause to begin running ensure that reservoir tank is fully inserted into mode is switched to ‘purge mode’.
Page 10 General Care & Storage Weekly Cleaning First complete daily cleaning steps on previous page Add silicone based lubricant to valve and Remove the reservoir and remove the cap, place reservoir mouth down for air drying Remove battery from the device. cap gasket and filter and let air dry.
Page 11 General Care & Storage Once dry, place device Store in a controlled Remove battery from the device. Lubricate valves in the device. in storage bag. indoor enviroment. General Recommendations • Calibrate device at start of day and when changing products. •...
Page 12: Quantum Troubleshooting
Troubleshooting SYMPTOM POSSIBLE PROBLEM SOLUTION Detach and re-attach reservoir ensuring that Reservoir not attached correctly the locking clip is engaged. Product will not circulate through the lines Replace with charged battery and or Battery power is low recharge battery. Product will not circulate through lines and Hard reset the device by removing battery and Motor has stalled...
Page 13 Troubleshooting SYMPTOM POSSIBLE PROBLEM SOLUTION Tubing only partially inserted Push tubing into fitting until you hear a click. Tubing has been scored too deeply Re-cut end or replace tubing segment. Leaking from Re-cut end to ensure straight edge, or push-to-connect ﬁttings Tubing may have been cut incorrectly replace tubing segment.
Page 14: Quantum Repair Instructions
Quantum Repair Instructions Replacing Set Screws/Tightening Injector Tee Tips Loosen set screw with a small flathead screwdriver. If screw is Use a wrench to tighten the tip (turn tip in clockwise worn, replace with a new one.
Page 15 Quantum Repair Instructions Replacing Or Removing The Fill Cap Gasket Insert rubber Wash filter gasket 1st then filter Remove gasket and filter from mouth of Filter should pop out of gasket and can be To replace, add gasket to the mouth of reservoir.
Page 16 Quantum Repair Instructions Repairing or Replacing Tubing Continued » Cut off Damaged tubing damaged tubing Residue Inspect the tubing ends for chemical residue build-up, deep scoring and kinks. Replace damaged tubing completely if necessary. Note: Push-to-connect fittings are designed to score the tubing and hold it firmly in place, over time the scoring becomes deeper and can cause leaking if the tubing is mishandled or not properly maintained.
Page 17 Quantum Repair Instructions Replacing Ball Valve Counter-clockwise Disconnect tubing by pushing in the plastic collet of the push- Use a 9/16” wrench to loosen the ball valve, turn counter- to-connect fitting and at the same time pulling out the tube.
Page 18 If you are ever dissatisfied, in any way, please contact us so that we can address whatever concern you have. Our goal is your complete satisfaction. Digital Download of this Manual Available at: www.RainbowEcoscience.com/quantum Ordering & Tech Support: 877-272-6747 www.RainbowEcoscience.com...
