Summary of Contents for New H3C Technologies MSR1000 Series

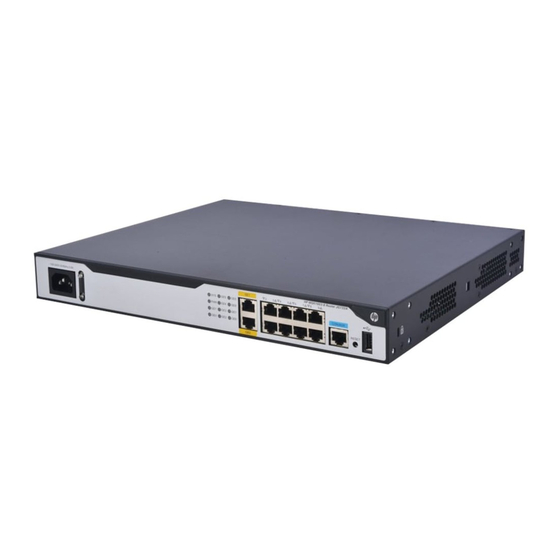

- Page 1 H3C MSR1000 Router Series Installation Guide New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 5W101-20220902...
- Page 2 No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd. Trademarks Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners. Notice The information in this document is subject to change without notice.
- Page 3 Preface This document describes the installation procedure for H3C MSR1000 router series, covering the procedures for preparing for installation, installing the router, and troubleshooting. This preface includes the following topics about the documentation: • Audience. • Conventions. • Documentation feedback. Audience This documentation is intended for: •...
- Page 4 Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software. An alert that calls attention to essential information.
- Page 5 Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
-
Page 6: Table Of Contents
Contents 1 Preparing for installation ·········································································· 1-1 Safety recommendations ································································································································ 1-1 Safety symbols ········································································································································ 1-1 General safety recommendations ··········································································································· 1-1 Electricity safety ······································································································································ 1-1 Examining the installation site ························································································································· 1-2 Temperature and humidity ······················································································································ 1-2 Cleanliness ·············································································································································· 1-2 Cooling ···················································································································································· 1-3 ESD prevention ·······································································································································... -
Page 7: Preparing For Installation
Table1-1 H3C MSR1000 router series models Identifier (marked on the front panel) Product code RT-MSR1008 RT-MSR1004S-5G RT-MSR1004S-5G-GL H3C MSR1000 Series RT-MSR1104S-W RT-MSR1104S-W-CAT6 NOTE: Installation of the router is subject to the actual environment. Safety recommendations To avoid any equipment damage or bodily injury, read the following safety recommendations before installation. -
Page 8: Examining The Installation Site
• Always make sure the power has been disconnected during installation or replacement. Examining the installation site The router can only be used indoors. To ensure correct operation and a long lifespan for your router, the installation site must meet the requirements in this section. Temperature and humidity Maintain the temperature and humidity in the equipment room as described in Table1-2. -
Page 9: Cooling
Maximum concentration (mg/m 0.05 0.04 0.01 Cooling The router uses passive cooling. Plan the installation site in advance to ensure adequate cooling for the router and make sure the following requirements are met: • Reserve a minimum clearance of 100 mm (3.94 in) around the air vents for an MSR1008, MSR1104S-W, or MSR1104S-W-CAT6 router. -
Page 10: Lightning Protection
• Keep the grounding equipment of the router far away from radio transmitting stations, radar stations, and high-frequency devices. • Use electromagnetic shielding, for example, shielded interface cables, when necessary. Lightning protection To protect the router from lightning, follow these guidelines: •... -
Page 11: Installation Accessories
Installation accessories Figure1-2 Installation accessories IMPORTANT: To wall-mount the router, you must prepare screw anchors and screws. Make sure the screw anchors and screws meet the following requirements: • The screw length is no less than 16 mm (0.63 in). •... - Page 12 Item Requirements Result • There is a minimum clearance of 100 mm (3.94 in) around the air inlet and outlet vents. Ventilation • An adequate ventilation system is available at the installation site. • MSR1008, MSR1104S-W, MSR1104S-W-CAT6: 0°C to 45°C (32°F to 113°F) Operating •...
-
Page 13: Installing The Router
Installing the router WARNING! To avoid injury, do not touch bare wires, terminals, or parts with high-voltage hazard signs. IMPORTANT: • The barcode on the router chassis contains product information that must be provided to local sales agent when you return a faulty router for repair. •... -
Page 14: Installing The Router
Figure2-1 Installation flowchart Start In a 19-inch rack On a workbench Mount the router On a DIN rail On a wall Ground the router Install SIM cards Install 4G/5G antennas Install 4G/5G antenna extension cables Connect the power cord Install cables Verify the installation Power on the router Troubleshoot the router... - Page 15 Figure2-2 Installing cage nuts Attach mounting brackets to the two sides of the router, as shown in Figure2-3. Figure2-3 Attaching mounting brackets to the router Use M6 screws to attach the mounting brackets on the router to the rack, as shown in Figure2-4.
-
Page 16: Mounting The Router On A Workbench
Mounting the router on a workbench You can mount an MSR1004S-5G or MSR1004S-5G-GL router on a workbench without using rubber feet. Restrictions and guidelines To mount the router on a workbench, follow these restrictions and guidelines: • Make sure the workbench is clean, stable, and reliably grounded. •... -
Page 17: Mounting The Router On A Wall
Installation accessories Figure2-6 DIN rail mounting racket and DIN rail (1) Metal spring (2) Screw hole (3) DIN rail To mount the router on a DIN rail: Press the DIN rail against the spring on the DIN rail mounting bracket. Press the DIN rail upward to for its bottom to fit onto the bottom flange of the DIN rail mounting bracket. - Page 18 Figure2-8 Installing screw anchors Remove the DIN rail mounting bracket attached to the router real panel. Keep the removed DIN rail mounting bracket and the four mounting screws secure. Figure2-9 Removing the DIN rail mounting bracket from the router Use the four mounting screws used for the DIN rail mounting bracket to secure the router mounting bracket to the rear panel of the router.
- Page 19 Figure2-11 Securing the router to the wall Mounting an MSR1104S-W/MSR1104S-W-CAT6 on a wall Mark two wall-mount screw hole locations on the wall. Drill holes with a minimum depth of 22 mm (0.87 in) in the marked locations. Make sure the holes are 140 mm (5.51 in) horizontally apart.
-
Page 20: Grounding The Router
Figure2-12 Mounting an MSR1104S-W/MSR1104S-W-CAT6 on a wall Grounding the router CAUTION: • Correctly connecting the grounding cable is crucial to lightning protection and EMI protection. When you install and use the router, first ground the router reliably. • Ensure a minimum resistance of 5 ohms between the router and the ground. To connect the grounding cable to the router: Remove the grounding screw from the grounding hole in the chassis. -
Page 21: Installing A Sim Card
Use the grounding screw to attach the ring terminal of the grounding cable to the grounding hole and fasten the screw. Remove the nut from a grounding post on the grounding strip. Use needle-nose pliers to bend a hook with the bear metal part of the grounding cable. Then attach the hook to the grounding post and fasten the nut. -
Page 22: Installing A 4G/5G Antenna
Insert the micro SIM card into the micro SIM card slot along the guide rails. Reinstall the cover and then fasten the screw on the cover. Figure2-14 Installing a micro SIM card Installing a 4G/5G antenna Only the MSR1004S-5G and MSR1004S-5G-GL routers support 5G antennas. Only the MSR1104S-W-CAT6 router supports 4G antennas. -
Page 23: Installing A 4G/5G Antenna Extension Cable
Figure2-15 Installing a 5G antenna Installing a 4G/5G antenna extension cable Only the MSR1004S-5G and MSR1004S-5G-GL routers support 5G antenna extension cables. Only the MSR1104S-W-CAT6 router supports 4G antenna extension cables. No 4G/5G antenna extension cable is provided with the router. Purchase 4G/5G antenna extension cables yourself as required. -
Page 24: Connecting The Power Adapter Or Power Cord
Figure2-16 Connecting a 5G antenna extension cable Connecting the power adapter or power cord CAUTION: Before connecting power to the router, make sure the building power has been reliably grounded. The MSR1004S-5G, MSR1004S-5G-GL, MSR1104S-W, and MSR1104S-W-CAT6 routers use a power adapter for power input. The MSR1008 router can use an AC power cord directly for power input. -
Page 25: Connecting The Power Cord
Figure2-17 Connecting the power adapter (MSR1004S-5G/MSR1004S-5G- GL/MSR1104S-W/MSR1104S-W-CAT6) Connecting the power cord Make sure the router is reliably grounded. Connect the power cord to an AC receptacle. Insert the AC output plug of the power cord to the power adapter receptacle on the router. Then use a cable tie to secure the power cord. -
Page 26: Connecting The Console Cable And Setting Terminal Parameters
Figure2-19 Connecting an Ethernet cable Connecting the console cable and setting terminal parameters Connecting the console cable CAUTION: The serial ports on PCs do not support hot swapping. To connect a PC to an operating router, first connect the PC end. To disconnect a PC from an operating router, first disconnect the router end. To connect the console cable: Select a configuration terminal, which can be an ASCII terminal with an RS-232 serial port or a PC. -
Page 27: Setting Configuration Terminal Parameters
Setting configuration terminal parameters To access the router from the console port, you must run a terminal emulator program (HyperTerminal, PuTTY, or Tera Term) on the configuration terminal. For information about using a terminal emulator program, see the program's user guide. The following are the required terminal settings: •... - Page 28 **************************************************************************** H3C H3C-Device-default BootWare, Version 1.01 **************************************************************************** Copyright (c) 2004-2021 New H3C Technologies Co., Ltd. Compiled Date : Oct 9 2021 Memory Type : DDR4 SDRAM Memory Size : 2GB PCB Version : Ver.B BootWare Validating... Press Ctrl+B to access EXTENDED-BOOTWARE MENU...
-
Page 29: Troubleshooting
Troubleshooting IMPORTANT: • The barcode on the router chassis contains product information that must be provided to local sales agent when you return a faulty router for repair. • Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C for permission. -
Page 30: Garbled Display On The Configuration Terminal
Garbled display on the configuration terminal Symptom The configuration terminal has garbled display when the router is powered on. Solution To resolve the issue: Verify that the following settings are configured for the terminal: Baud rate—9,600. Data bits—8. Parity—None. -
Page 31: Restoring The Factory Settings
Restoring the factory settings Scenario 1 Symptom When you replace the router, the router password is lost. As a result, you cannot log in to the router and do not know the router configuration. Solution Because the router is replaced, you do not need to save the configuration of the router. In this case, you can press and hold the RESET button to reboot the router and restore the factory settings.
