- Page 1 JioFi 5 steps to be connected everywhere.

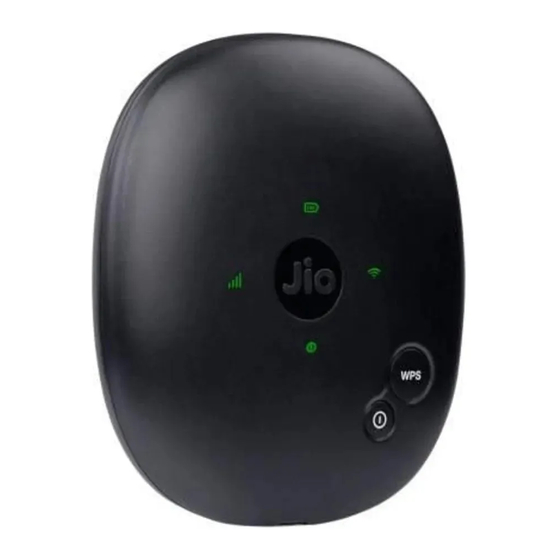

- Page 2 Know your JioFi Network signal strength WiFi indicator Power indicator button Power Battery button indicator indicator USB charging port...
- Page 3 Open the back cover and install the SIM and SD cards. To install the SIM card, insert the SIM card with the IC chip facing down. To install the SD card, slide the SD tray downwards (OPEN) to lift the tray, insert the SD card with the IC chip facing down, and slide the tray upwards (LOCK) to secure the tray.
- Page 4 Remember or write down the SSID (Service Set Identifier) and Password mentioned in the battery compartment before inserting the battery and replacing back cover. Commodity: Router JMR1140(Black) RSN: RAMMFLC00000001 MAC ID: 581D91000000 IMEI: 911504950000010 EAN: 8809423980096 SSID: JioFi4_000000 PWD: abcd000000 System Log IN USERNAME/PWD: administrator...
- Page 5 The Setup is done. Now Turn ON your device and connect up to 31 WiFi enabled devices on your wireless network by using the SSID and password.
- Page 6 To connect quickly, press WPS button for 3 seconds and then press the WPS button on your wireless device to connect. Welcome to your digital life. Download Jio4GVoice on your smart phone to enable HD Voice Calling and Video Calling using your JioFi.
-
Page 7: About Your Device
* JioFi works with Jio SIM card only. About your device Charging the device When charging the battery for the first time, it is recommended to charge it to 100% with adapter and cable provided in turned OFF position. Charging time USB Cable ~ Approx. - Page 8 Turning the device ON or OFF To turn ON the device, press and hold the Power button for 1 second. To turn OFF the device, press and hold the Power button for 3 seconds. Resetting the device Occasionally, you may need to perform a Factory reset when you forget login username or password.
- Page 9 Indicators Power Power save mode/Sleep mode* Blink Normal mode Power save mode/Sleep mode* in no service Blink Fast Normal mode in no service Network signal Good Signal strength Medium Signal Weak Signal No service/SIM card error/ Blink Fast no SIM card Battery Battery high/AC adaptor connected without battery inside...
- Page 10 Your device will enter a sleep mode after some time (when there is no device connected). Short press the Power button to bring it back to active state. This time period can be altered through WebGUI or managed devices section of MyJio App or jio.com.
-
Page 11: Manage Your Device
Connect your Computer/Smartphone to JioFi device over USB or WiFi interface. Enter the URL: http://jiofi.local.html in address bar of the browser to open the web configuration page. Click the 'Login' button on the top right corner of... - Page 12 Not able to change my device settings Please connect computer/smartphone to your JioFi device over USB/WiFi interface. Enter http://jiofi.local.html in the browser’s URL input field. Click the 'Login' button on the top right corner of your web page screen. The default username and password are 'administrator'.
- Page 13 Safety To the Owner Always keep the device at a distance of 20cm from medical devices like hearing aids, pacemakers as it may interfere while the device is turned on. It is advisable to consult your physician or the manufactur- er of the medical device before using your device.
-
Page 14: Using Your Device
Using your Device Use only original and authorized accessories. Unauthorized accessories may affect your device performance. Do not expose your device to moisture or water. Handle carefully. Do not drop! Kindly use your device with a Nano Sim card only. Do not try to insert sim card of any other size as this may lead to damage to sim slot connector pins and might render your device useless. -
Page 15: Technical Specifications
Information Technical specifications General Supported OS WinXP (SP3 onwards)/Vista/Win7/ Win8/Win10/MAC/Linux Input voltage Output voltage 4.35V Maximum Maximum power 3.5W consumption Memory 2Gbit ROM and 2Gbit RAM External interfaces Micro-USB port Nano-SIM card interface Micro-SD card interface (up to 32GB) Operating temp. charge Charging: 0 ˚C~+40 ˚C Discharge: 0 ˚C~+60 ˚C Dimensions (L*W*H) - Page 16 With love, from Jio Reach us If you have further question or require personal assistance, please contact JioCare by calling or sending on email. Phone: 198 from your Jio number or 1800-88-99999 from any network (24 Hrs.) Email: care@jio.com Visit www.jio.com We wish you a beautiful experience with Jio.
