Summary of Contents for CyberChill precision

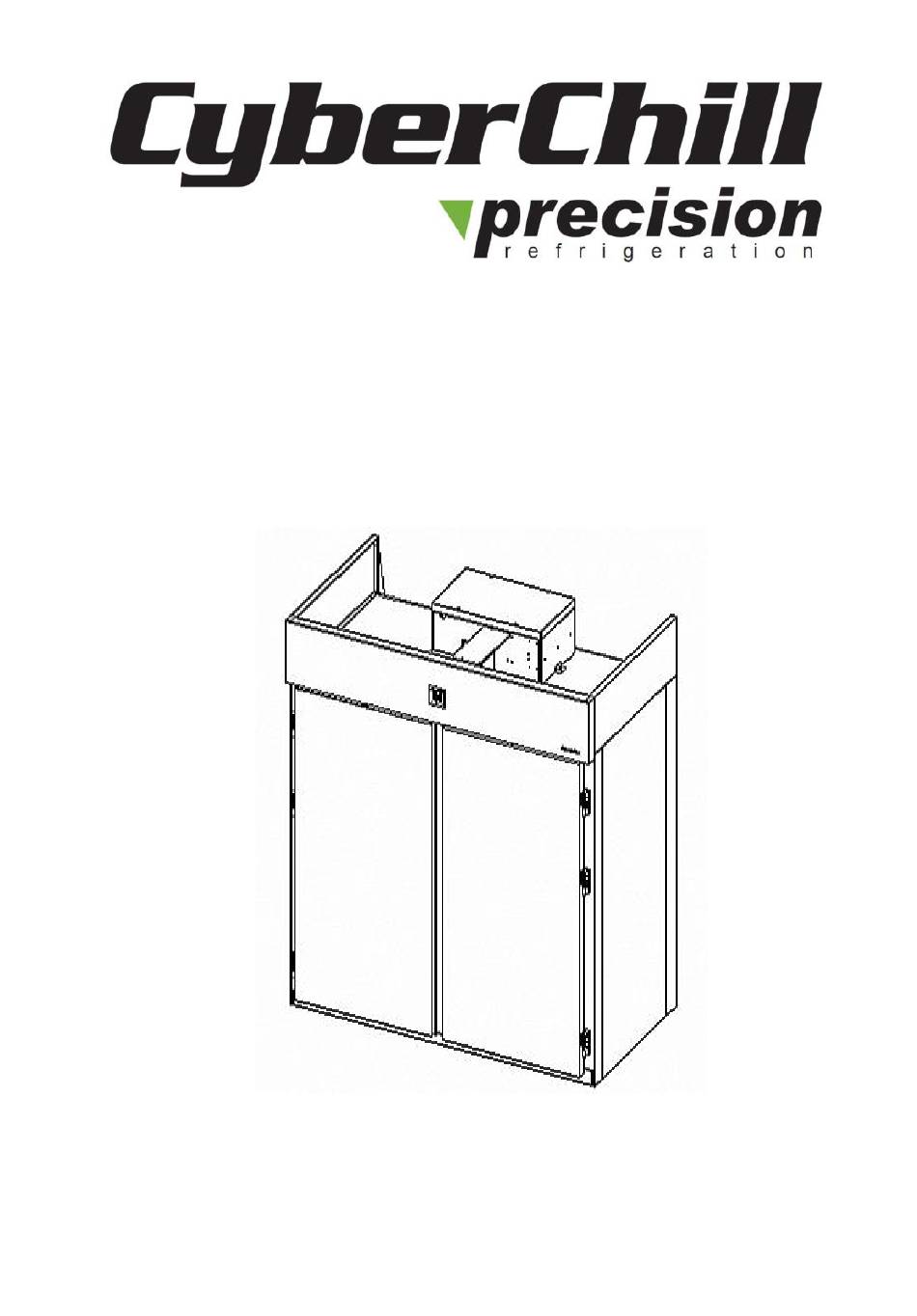

- Page 1 OPERATING INSTRUCTIONS 2 DOOR ROLL-IN REFRIGERATOR ©V1/2015...
- Page 2 This page is intentionally left blank.
-
Page 3: Table Of Contents
Contents General Hazards Electrical connection Unpacking Installation 4-13 Ventilation Initial start-up 15-16 Checks Using Your new piece of refrigeration equipment 16-17 Commissioning instructions Defrosting 17-18 Maintenance and cleaning: condenser 18-19 Gasket replacement Disposal requirements Fault finding Alarm Wiring diagram Note All information is subject to change without prior notice... -
Page 4: General Hazards
General Hazards All moving parts of the refrigerator are suitably guarded, any repairs and maintenance should only be carried out by a qualified professional. Any waste or redundant refrigeration devices must be disposed of in accordance with national laws and regulations. Electrical connection The product is supplied with a molded plug, which needs a suitable socket. -
Page 5: Unpacking
Unpacking Leave all packaging in place until refrigerator is in its final position to avoid damage. When the cabinet is in its final position, carefully remove all packaging and check for damage. Any damage should be reported immediately to your dealer. All packaging should be carefully disposed of and recycled where possible. - Page 6 Installation Steps: Fix No.1 base plate to specified location assigned by the site;...
- Page 7 2. Fix No.2 left-backing plate on No.1 base plate, fasten it with hook lock, to ensure a firm connection;...
- Page 8 Fix No. 3 right-back plate on No. 1 bottom plate and lock it firmly with left back plate and bottom plate by hook lock respectively, to ensure the flat top.
- Page 9 Install the left and right side-plates of No. 4 and No. 5 on No. 1 bottom plate respectively, and lock them firmly with the back and bottom plate by hook lock to ensure the flat top.
- Page 10 5.1 Connect the door frame wiring heater firmly 5.2 Install the door frame of No. 6 and No. 7 on the side panel, lock the side panel and the door frame by hook lock to ensure the flat top. 5.3 Install the door frame support of No. 8 at the lower part of door frame and fix the center mullion and bottom plate of door frame firmly by M5*10 screw.
- Page 11 6.1 Load the No. 9 top plate together with the connecting unit to the top of cabinet and lock it firmly by hook lock 6.2 Connect the door frame wiring heater firmly...
- Page 12 7.1 Install No. 10 and No. 11 side plates above the cabinet and connect them firmly by M5*10 screw. 7.2 Buckle No. 12 panel on left and right plate 7.3 Connect display wire...
- Page 13 8. Install No. 13 bumper strip into the cabinet liner (bottom) and fasten it firmly by M5*10 screw.
- Page 14 9.1 Hang the left and right doors of No. 14 and No. 15 on the hinge base of door frame, buckle the sealing plate of door hinge base, and the installation is complete. 9.2 Plug in to start up, power supply: 220V/50Hz/2000w...
-
Page 15: Ventilation
This product must be placed on a horizontal floor to ensure the automatic closure of cabinet doors and proper discharge of condenser water, which is especially important for freezer. Ventilation Refrigeration device will generate a lot of heat. Take a 2-door freezer as an example, the heat generated by the refrigerator is equivalent to a 3kw electric heater. - Page 16 provided around the refrigeration unit for ventilation and maintenance access. Ventilation grills must not be blocked, or even partially blocked as this could affect the performance and lifespan of the cabinet. LAE Electronic Controller Display...
-
Page 17: Initial Start-Up
Initial Start Up Plug the molded plug into a suitable socket. If necessary, push the button on the controller to start the unit. The cabinet air temperature will be displayed once the unit is running. To standby the unit when running, press and hold the button for 3 seconds. -
Page 18: Using Your New Piece Of Refrigeration Equipment
and the condensing unit cuts out. The preset temperature can be checked by pressing the button on the controller. Using Your New Refrigeration Equipment The cabinet must reach its preset operating temperature before loading any produce. Cover all foods ensuring that cooked and raw foods are kept separate to avoid cross contamination. -
Page 19: Defrosting
(starting) temperature is determined by the differential. Defrosting All CyberChill refrigerated cabinets are fitted with a fully automated defrost system that ensures the cooling system remains free from ice under normal conditions. If a manual defrost is required, this can be activated by simultaneously pressing &... - Page 20 Maintenance The cabinet is fully automatic and apart from cleaning needs very little maintenance. Interior and exterior should be cleaned with soap and water and no abrasives should be used as they will scratch and spoil the stainless-steel finish. Maintenance and Cleaning Before cleaning and maintenance, the cabinet should be in standby mode then unplugged from the power supply.
-
Page 21: Gasket Replacement
will overheat and this can lead to poor cooling performance, increased energy consumption and premature mechanical failure. The condenser should be brushed with a soft brush to remove any dust deposited on the alloy fins. The frequency of this cleaning is determined by the amount of dust in the surrounding area but should be cleaned at least 4 times a year. -
Page 22: Fault Finding
Fault Finding In the event of cabinet fault/failure, please check the following: 1. Plug is in socket and power to the socket can be proven by plugging another appliance into the same socket or swapping the problem cabinet to a socket that is known to work. 2. -
Page 23: Alarm
Alarm The controller is equipped with audio & visual alarm: Alarm display Alarm description Action required Door Open Alarm Close door Condenser High Temperature Check for blockage / clean Alarm High temperature safety Call engineer alarm High temperature alarm Press any button to cancel/check Low temperature alarm Press any button to cancel/check Probe T1 failure... -
Page 24: Wiring Diagram
Wiring diagram: Note: Each Roll-in cabinet has two heater wires, one is spare. -
Page 25: Note
Notes:...
