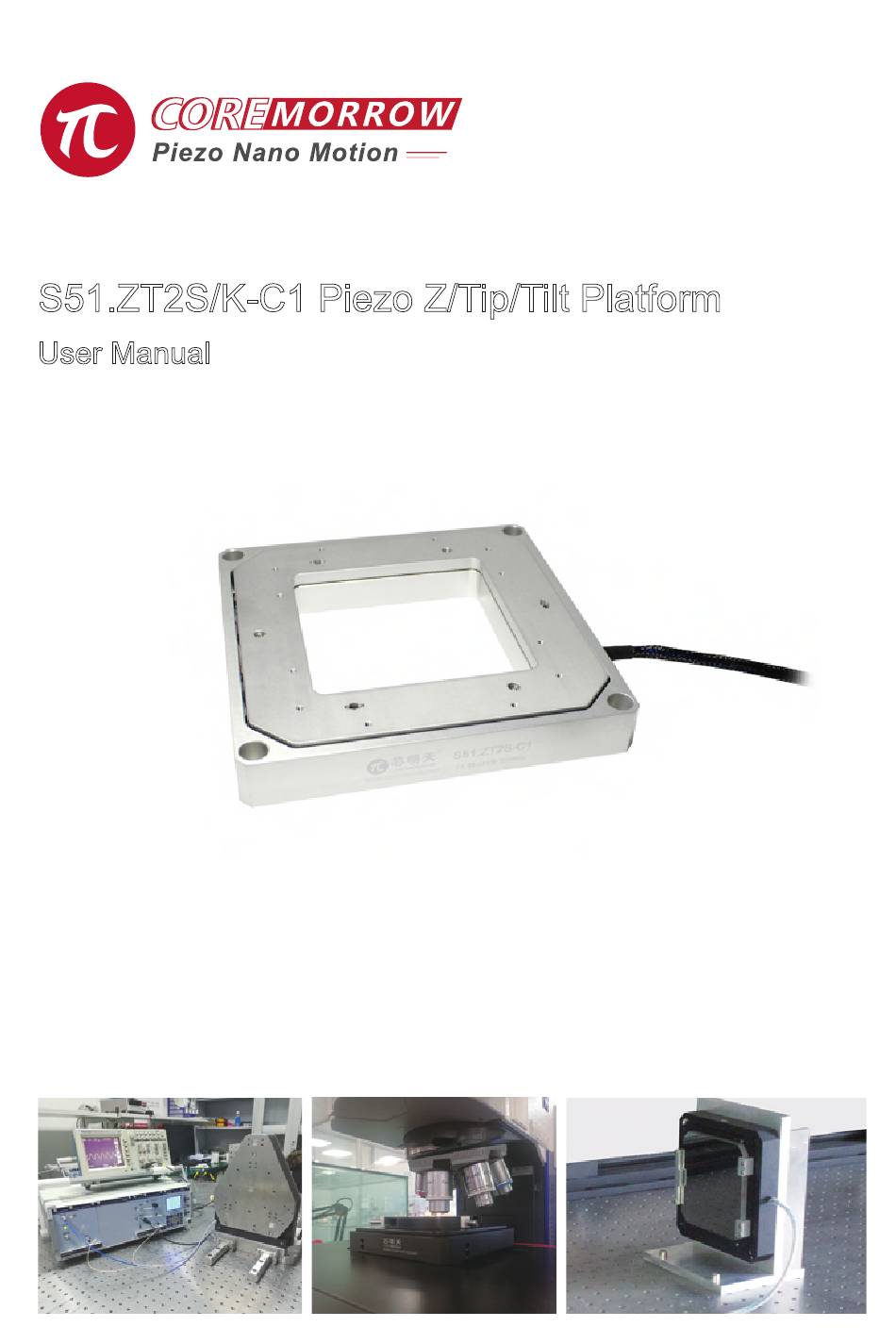

- Page 1 S51.ZT2S/K-C1 Piezo Z/Tip/Tilt Platform User Manual Version: V1.0 This document describes the following products: ■ S51.ZT2S-C1 ■ S51.ZT2K-C1...
- Page 2 With the continuous development and innovation of technology, CoreMorrow will timely add the latest information to the manual as required. If you need, please contact us, or to our website www.coremorrow. com for download, we apologize for any inconvenience caused to you.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning .........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Control Principle ..........................5 3.3 Motion direction ..........................6 3.4 Product Features ..........................6 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
Do not disassemble the product to avoid damage. Avoid stretching and bending the cable interface to prevent damage to the cable. Use the dedicated cable provided by CoreMorrow to connect S51.ZT2S/K-C1 to controller. Do not connect via an extension cable casually, if you need a longer cable, please contact... -
Page 6: Product Overview
S51.ZT2S/K-C1 Piezo Z/Tip/Tilt Platform User Manual 3. Product Overview 3.1 Product Introduction S51.ZT2S/K-C1 piezo Z/Tip/Tilt platform has the following advantages: High performance piezo stack: S51.ZT2S/K-C1 is driven by a highly reliable ceramic actuator with a fully insulated structure, so its performance and service life are far better than the traditional actuator. The insulating layer can effectively prevent the piezoelectric ceramic from being damaged when exposed to moisture. -
Page 7: Control Principle
3.2 Control Principle AXIS2 PZT2 PZT1 AXIS1 PZT3 Assume that the max. control voltage is A, The control mode is as follows: AXIS1（θx）： CH1=A/2 CH2+CH3=A AXIS2（θy）： CH2=CH3 CH2+CH1=A Z： CH1=CH2... -
Page 8: Motion Direction
S51.ZT2S/K-C1 Piezo Z/Tip/Tilt Platform User Manual 3.3 Motion direction AXIS2 AXIS1 3.4 Product Features Motion in θx, θy and Z Closed-loop version for high accuracy Fast response Aperture of 80×80mm Optional vacuum version 4. Operating environment A clean, dustfree and non-corrosive environment Operating temperature : -20~80℃... -
Page 9: Installation And Operation
5. Installation and operation Safety check should be carried out before installation, such as whether the connection wire is damaged or broken, whether the drive power supply is grounded, etc. 5.1 Installation and Precautions 1.Ensure that the installation plane is relatively flat; 2.Mount M6 on the mounting surface directly and tighten it;... - Page 10 S51.ZT2S/K-C1 Piezo Z/Tip/Tilt Platform User Manual For the protection of the product, we do not recommend that the load is too high. If a high load must be used, please appropriately low the position of the center of gravity of the load.
- Page 11 When mounting the load, tighten the load slowly. The torque should not be too large to prevent damage to the mechanism. Avoid stretching and bending cables. Use the dedicated cable provided by CoreMorrow to connect S51.ZT2S/K-C1 and the controller. Do not connect via an extension cable casually, if you need a longer cable, please...
-
Page 12: Operating
S51.ZT2S/K-C1 Piezo Z/Tip/Tilt Platform User Manual 5.3 Operating Please reconfirm the following information before turning on the power: S51.ZT2S/K-C1 has been grounded. The operating environment meets the operating environment requirements of it. Fixed screws must be tightened. After the above information is confirmed, relevant controller operations can be carried out: 1.Please read the user manual of the controller carefully before operation, and then start the controller. -
Page 13: Transportation And Inspection
6. Transportation and inspection 6.1 Transportation This product is packed in cartons. Transportation is carried out under the packaging conditions. This product can be transported by various means of transport under normal circumstances. In the process of transportation, direct rain and snow, corrosive substances, strong collision, extrusion, irregular placement and other improper behaviors should be avoided as far as possible. -
Page 14: Maintenance And Treatment
If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 15: Disposal
In order to fulfill our responsibility as a product manufacturer, we will dispose all old equipments on the market in an environmentally friendly manner. If you have equipment that cannot be disposed, you can ship it to CoreMorrow. Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin, Heilongjiang... -
Page 16: Driving And Sensor Cables
S51.ZT2S/K-C1 Piezo Z/Tip/Tilt Platform User Manual 7.4 Driving and Sensor Cables Driving cable and sensor cable are made of polyimide line, which can be used in vacuum. The connector interface uses 12-pin connector, the model is TGG.2B.312.CLAD62Z, and the wiring definition is shown in the following figure: 12-Pin male wiring diagram 12-Pin female wiring diagram Pin definition... -
Page 17: Customer Service
Computer operating system that installs supporting software 9.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
