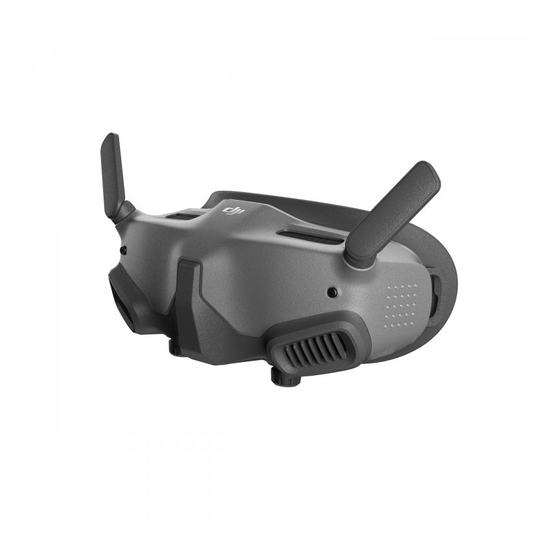

dji GOGGLES 2 User Manual

Hide thumbs Also See for GOGGLES 2:

Advertisement

Table of Contents

User Manual
v1.
0
2022.
11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOGGLES 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji GOGGLES 2

Summary of Contents for dji GOGGLES 2

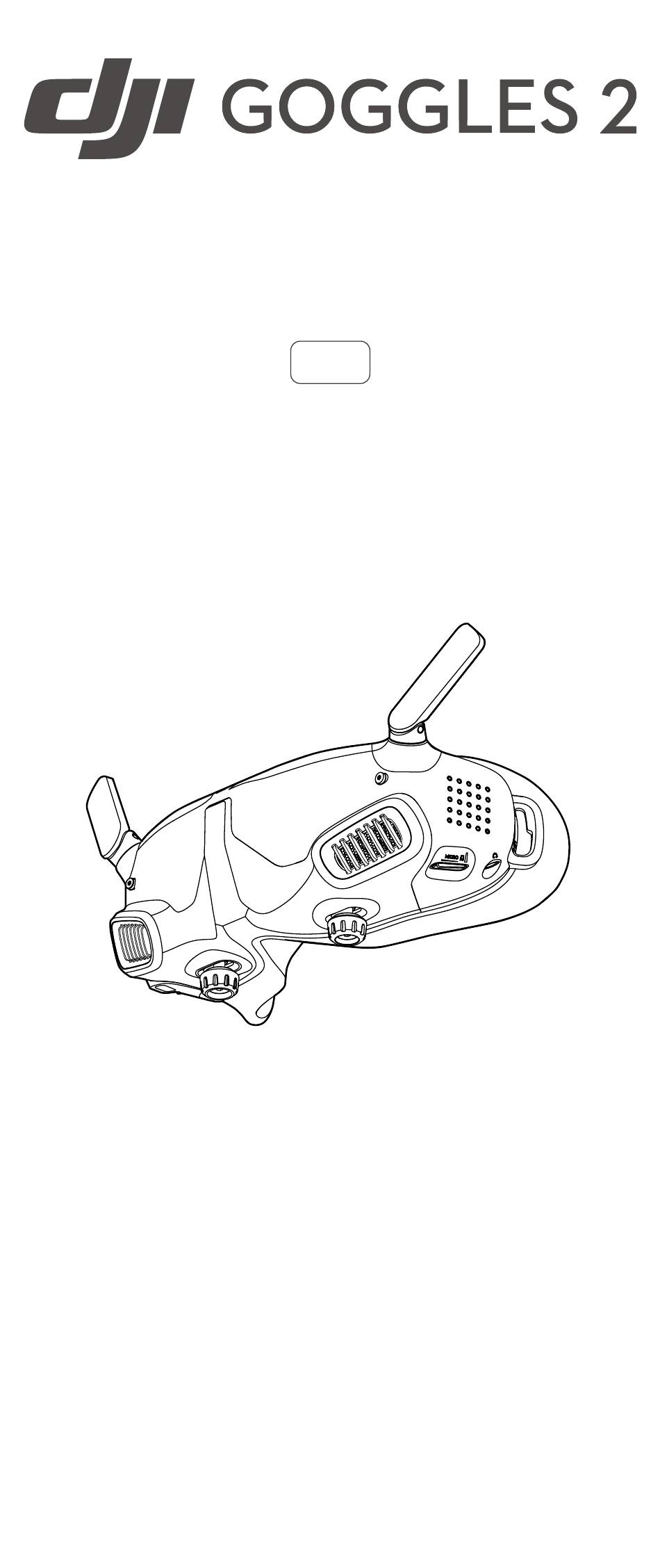

  • Page 1 User Manual 2022.
  • Page 2 Goggles Home Screen and Menu Switching Aircraft Using the Head Tracking Function Using the Wireless Streaming Function DJI Motion Controller Controlling the Aircraft Controlling the Gimbal and Camera Motion Controller Alert Motion Controller Calibration Firmware Update © 2022 DJI All Rights Reserved...
  • Page 3 Contents DJI Goggles 2 User Manual v1.0 Maintenance Replacing the Antennas Replacing the Foam Padding Cleaning and Maintenance of the Lenses Appendix Specifications Low Blue Light Statement After-Sales Information © 2022 DJI All Rights Reserved...

  • Page 4: Using This Manual

    Contents DJI Goggles 2 User Manual v1.0 Using this Manual Navigating to a Topic View a complete list of topics in the table of contents. Click on a topic to navigate to that section. Searching for Keywords Search for keywords such as “battery” and “install”...
  • Page 5 5.8 GHz is not supported in some regions. This frequency band will automatically be disabled when the aircraft is activated or connected to DJI Fly in these regions. Observe local laws and regulations. Using the goggles does not satisfy the requirement of visual line of sight (VLOS).

  • Page 6: Download Dji Assistant

    Download DJI ASSISTANT (Consumer Drones Series) https://www.dji.com/goggles-2/downloads * This user manual covers both DJI Goggles 2 and DJI Goggles 2 Motion Combo. The DJI Motion Controller mentioned in this manual is a product of the DJI Goggles 2 Motion Combo.

  • Page 7: Product Overview

    Product Overview © 2022 DJI All Rights Reserved...
  • Page 8 DJI Goggles 2 is equipped with high-performance dual displays and ultra-low-latency image transmission for use with DJI aircraft, giving you a real-time aerial FPV (First Person View) experience. The Wireless Streaming function enables you to project the live-feed from your mobile phone or computer to the goggles screen, bringing you an immersive viewing experience.
  • Page 9 Contents DJI Goggles 2 User Manual v1.0 1. Antennas 2. Touch Panel 3. Headband Attachment 4. Power Port Use the power cable (USB-C) provided to connect the power port of the goggles to the goggles battery. 5. USB-C Port 6. IPD (Interpupillary Distance) Slider / Diopter Adjustment Knob (hereinafter referred to as "knob")
  • Page 10 Contents DJI Goggles 2 User Manual v1.0 DJI Motion Controller 1. Battery Level LEDs 2. Lock Button Press twice to start the motors of the aircraft. Press and hold to make the aircraft take off automatically, ascend to approximately 1.2 m, and hover. Press and hold while the aircraft is hovering to make it land automatically and stop the motors.
  • Page 11 Contents DJI Goggles 2 User Manual v1.0 6. Shutter/Record Button Press once to take photos or start or stop recording. Press and hold to switch between photo and video mode. 7. Accelerator Press to fly the aircraft in the direction of the circle in the goggles. Apply more pressure to accelerate.

  • Page 12: Getting Started

    Getting Started © 2022 DJI All Rights Reserved...

  • Page 13: Installation

    Contents DJI Goggles 2 User Manual v1.0 Preparing the Goggles Installation 1. Unfold the antennas. Fold the antennas to avoid damage when the goggles are not in use. If the antenna is accidentally damaged, you can contact DJI after-sales to purchase a new one "Replacing the...

  • Page 14: Power Supply

    Contents DJI Goggles 2 User Manual v1.0 3. Attach the headband to the goggles. Power Supply Use the power cable provided to connect the power port of the goggles to the goggles battery. Only use the DJI goggles battery provided.
  • Page 15 Contents DJI Goggles 2 User Manual v1.0 It is recommended to use a USB Power Delivery charger to charge the goggles battery if the power level is too low. The battery level LEDs display the power level during charging and when in use.
  • Page 16 Contents DJI Goggles 2 User Manual v1.0 Preparing the Motion Controller Press the power button once to check the current battery level. Charge before using if the battery level is too low. USB Power Delivery chargers are not supported. Press once then press again and hold for two seconds to power the motion controller on or off.
  • Page 17 Make sure all the devices are linked. Connect the USB-C port of the goggles to your mobile device, run the DJI Fly App, and follow the prompted instructions to activate. Make sure the mobile device is connected to the internet during activation.
  • Page 18 Contents DJI Goggles 2 User Manual v1.0 The goggles only support standard USB-C protocols and MFI-certified Lightning cables. Non-standard cables are not supported. If the devices do not respond after connecting, use a different data cable and try again. Linking The aircraft must be linked with the goggles first, followed by the motion controller.
  • Page 19 Connect the goggles to your mobile device and run the DJI Fly App, select Connection Guide and then follow the on- screen instructions to link. Make sure the correct aircraft is selected, otherwise the linking will fail.
  • Page 20 Contents DJI Goggles 2 User Manual v1.0 the lenses and the diopter to get a clear view. 1. Rotate both the knobs in the direction as shown to unlock them. Once unlocked, the knobs will pop out. 56 - 72 mm 2.
  • Page 21 Contents DJI Goggles 2 User Manual v1.0 The diopter lenses do not support astigmatism correction. If you require astigmatism correction or if the goggles’ diopter is unsuitable, you can purchase additional lenses and use the eyeglass frames provided to install them on the goggles. Refer “Using the Eyeglass...
  • Page 22 Contents DJI Goggles 2 User Manual v1.0 diopter is unsuitable, you can purchase additional lenses and use the eyeglass frames to install them on the goggles. When purchasing lenses, bring the eyeglass frames (a pair) to a professional optical shop to ensure that the shape, size, astigmatism axis, and edge thickness (<...
  • Page 23 < 2.8 mm Contents DJI Goggles 2 User Manual v1.0 3. Adjust the diopter of the goggles according to your needs and lock the knobs. For example, if you usually wear -6.0 D glasses and the self-prepared lens is -3.0 D, then you will need to adjust the diopter of the goggles to -3.0 D...
  • Page 24 DJI Goggles 2 © 2022 DJI All Rights Reserved...

  • Page 25: Using The Touch Panel

    Contents DJI Goggles 2 User Manual v1.0 Using the Touch Panel The touch panel enables you to operate with only one hand: 15min 15min 10min 10min To ensure flight safety when using the motion 20.5km/h 1.8km/h 20.5km/h 1.8km/h 12'59'' 12'59'' controller, press the brake button once to brake 500m 1024.4m...
  • Page 26 Contents DJI Goggles 2 User Manual v1.0 You can change the settings to enter Menu by Mode Manual 20.5km/h 1.8km/h 20.5km/h 500m 1024.4m 500m swiping left from the right. To make the change, select Settings from the menu and select...
  • Page 27 Contents DJI Goggles 2 User Manual v1.0 When operating the touch panel, use slow and precise swipes to maximize function accuracy. Goggles Home Screen and Menu The actual screen interface and menu options may differ from the descriptions in this manual and vary depending on the aircraft used, the available functions, and the firmware version of the goggles.
  • Page 28 Contents DJI Goggles 2 User Manual v1.0 within the detection range. Gray bars indicate there are no obstacles within the detection range. The display of the obstacle detection status interface varies by aircraft (as a bar on the top or a ring at the center).
  • Page 29 Contents DJI Goggles 2 User Manual v1.0 7. Video Bitrate Displays the current video bitrate of the live view. 8. Remote Controller and Video Downlink Signal Strength Displays the remote controller signal strength between the aircraft and remote controller and the video downlink signal strength between the aircraft and the goggles.

  • Page 30: Shortcut Menu

    Contents DJI Goggles 2 User Manual v1.0 15. Home Point Indicates the location of the Home Point. The goggles will display the screen saver if they are disconnected from the aircraft and not used for an extended period. Tap the touch panel to exit the screen saver.

  • Page 31: Camera Settings

    Contents DJI Goggles 2 User Manual v1.0 Camera Settings 15min 15min 10min 10min 锁屏 Manual Shuttle Apeture Mode 1/200 Manual 1200K Swipe up from the bottom of the touch panel to enter the Camera Settings and to quickly change camera parameters.
  • Page 32 Contents DJI Goggles 2 User Manual v1.0 2. Album Shows the photos or videos stored on the microSD of the goggles. Select any file to preview. 3. Transmission The Transmission menu has a Pilot sub-menu and Audience sub-menu. The video transmission mode for the current device can be set under the Pilot sub-menu, including but not limited to: a.
  • Page 33 Contents DJI Goggles 2 User Manual v1.0 video transmission rate and clearer image quality. However, there will also be a higher chance of wireless interference and the amount of equipment that can be accommodated will be more limited. To avoid interference in a multiplayer competition, manually select a fixed bandwidth and channel.
  • Page 34 Contents DJI Goggles 2 User Manual v1.0 command (CSC) on the remote controller. If the emergency propeller stop is disabled, the motors can only be stopped mid-flight with the same control action in an emergency, such as if a collision occurs, a motor stalls, the aircraft rolls in the air, or is out of control and is ascending or descending quickly.
  • Page 35 Contents DJI Goggles 2 User Manual v1.0 c. Select Reset Camera Parameters to restore all camera settings to default. Display Adjust screen brightness, zoom, and display or hide the Home Point. About a. View device information such as the serial number and the firmware of the goggles and linked devices.
  • Page 36 Contents DJI Goggles 2 User Manual v1.0 Switching Aircraft To change aircraft, open the goggles menu and select Status, then select Switch and choose the aircraft you wish to use. Follow the on-screen instructions to complete the change. Using the Head Tracking Function...
  • Page 37 Contents DJI Goggles 2 User Manual v1.0 DJI Motion Controller © 2022 DJI All Rights Reserved...

  • Page 38: Controlling The Aircraft

    Contents DJI Goggles 2 User Manual v1.0 Controlling the Aircraft The motion controller has two modes: Normal mode and Sport mode. Normal mode is selected by default. Lock Button Lock Button Takeoff: Press twice to start the motors of the aircraft. Press and hold to make...

  • Page 39: Motion Control

    Contents DJI Goggles 2 User Manual v1.0 Brake Button Braking: Brake Button Press once for the aircraft to brake and hover in place. Press again to unlock the attitude. RTH: Press and hold the brake button until the motion controller beeps to indicate that RTH has started.
  • Page 40 Contents DJI Goggles 2 User Manual v1.0 Ascent Descent: To control the ascent or descent of the aircraft, first tilt the motion controller 90° up or down. Once the circle in the goggles goes into the ascend or descend icon, press the accelerator to make the aircraft ascend or descend.
  • Page 41 Contents DJI Goggles 2 User Manual v1.0 Controlling the Gimbal and Camera 1. Gimbal Tilt Slider: push up and down to adjust the tilt of the gimbal. 2. Shutter/Record Button: press once to take a photo or to start or stop recording. Press and hold to switch between photo and video mode.
  • Page 42 Contents DJI Goggles 2 User Manual v1.0 Motion Controller Alert The motion controller sounds an alert during RTH. The alert cannot be cancelled. The motion controller sounds an alert when the battery level is between 15% and 6%. A low battery level alert can be cancelled by pressing the power button.

  • Page 43: Firmware Update

    Contents DJI Goggles 2 User Manual v1.0 Firmware Update © 2022 DJI All Rights Reserved...
  • Page 44 1. Use the DJI Fly App to update the firmware for the entire set of devices including the aircraft, goggles, and motion controller. 2. Use DJI Assistant 2 (Consumer Drones Series) to update the firmware for a single device. Using DJI Fly Power on the aircraft, goggles, and motion controller. Make sure all the devices are linked. Connect the...
  • Page 45 Contents DJI Goggles 2 User Manual v1.0 2. Launch DJI Assistant 2 and log in with a DJI account. 3. Select the device and click Firmware Update on the left side of the screen. 4. Select the firmware version. 5. The firmware will be downloaded and updated automatically. 6. The device will restart automatically after the firmware update is complete.

  • Page 46: Maintenance

    Maintenance © 2022 DJI All Rights Reserved...

  • Page 47: Replacing The Antennas

    Contents DJI Goggles 2 User Manual v1.0 Replacing the Antennas If an antenna is damaged, you can contact DJI after- sales to purchase a new one for replacement. To remove the antenna, hold the bottom of the antenna and pull it upwards.
  • Page 48 Contents DJI Goggles 2 User Manual v1.0 Replacing the Foam Padding 1. Hold the bottom of the foam padding and remove it gently as shown below. DO NOT pull the sides when removing the foam padding. Otherwise, the padding may be damaged.
  • Page 49 Contents DJI Goggles 2 User Manual v1.0 Cleaning and Maintenance of the Lenses Use a piece of soft, dry, and clean cloth to wipe in a circular motion from the center to the outer edges of each lens. Make sure to disconnect the goggles from the power outlet before cleaning and make sure that no cables are connected.
  • Page 50 Appendix © 2022 DJI All Rights Reserved...

  • Page 51: Specifications

    Contents DJI Goggles 2 User Manual v1.0 Specifications Visit the DJI official website for the latest specifications: https://www.dji.com/goggles-2/specs DJI Goggles 2 Model Number RCDS Weight Approx. 290 g (with headband) 167.40×103.90×81.31 mm (antenna folded) Dimensions 196.69×103.90×104.61 mm (antenna unfolded) Screen Size 0.49 in (single screen) Resolution 1920×1080 p (single screen) Screen Refresh Max. 100 Hz Rate IPD Range 56-72 mm Diopter Range +2.0 D to -8.0 D...
  • Page 52 Contents DJI Goggles 2 User Manual v1.0 Wi-Fi Protocol Wi-Fi 802.11b/a/g/n/ac 2.4000-2.4835 GHz 5.150-5.250 GHz (in-door use only, not available Operating in some countries/regions) Frequency 5.725-5.850 GHz (not available in some countries/ regions) 2.4 GHz: <20 dBm (FCC/CE/SRRC/MIC/KC) Transmitter 5.1 GHz: <20 dBm (FCC/CE/MIC/KC) Power (EIRP) 5.8 GHz: <20 dBm (FCC/SRRC/KC), <14 dBm (CE)
  • Page 53 Contents DJI Goggles 2 User Manual v1.0 DJI Goggles 2 Battery Weight Approx. 122 g Dimension 73.04×40.96×26 mm Capacity 1800 mAh Voltage 7V - 9V 1. Type Li-ion Chemical LiNiMnCoO System Energy 18 Wh Charging 0° to 45° C (32° to 113° F) Temperature Max Charging 12.6 W (5 V 2 A / 9 V 1.4 A)
  • Page 54 The screen supports all-mode low blue light, protecting users from exposure to harmful blue light. DJI Goggles 2 has obtained the Low Blue Light certification. It is highly recommended to follow the steps below to protect your eyes against prolonged display use: Look away from the screen and then at a distant place for 20 seconds every 20 minutes.

  • Page 55: After-Sales Information

    Contents DJI Goggles 2 User Manual v1.0 After-Sales Information Visit https://www.dji.com/support to learn more about after-sales service policies, repair services, and support. © 2022 DJI All Rights Reserved...
  • Page 56 This content is subject to change without notice. Download the latest version from https://www.dji.com/goggles-2 Trademarks is a trademark of SZ DJI TECHNOLOGY CO., LTD. (abbreviated as “DJI”) and its affiliated companies. Names of products, brands, etc., appearing in this document are trademarks or registered trademarks of their respective owner...
