nvent Schroff RackPower RP 2325 Wiring Diagram

INPUT CORD
LENGTH SEE
IDENTIFICATION
TABLE
TECHNICAL SPECIFICATIONS
MONITORED SWITCHED
UNIT TYPE:
ORIENTATION:
VERTICAL, 0U FULL
OUTLET QTY & TYPE: (20)C13, (4)C19
INPUT VOLTAGE:
INPUT CURRENT:
(2) 16AMP, SINGLE-POLE
BREAKER QTY & TYPE:
SINGLE-PHASE
INPUT PHASE:
RATED POWER:
INPUT PLUG:
INPUT POWER CORD: SEE IDENTIFICATION TABLE
FEATURES
+-1% TO ISO/ IEC 62052-21
METERING ACCURACY
VOLTAGE(V), CURRENT(A), APPARENT
POWER(kVA), REAL POWER(kW),
METERING ATTRIBUTES
POWER FACTOR, ENERGY(kWh)
INPUT(PHASE), CIRCUIT BREAKERS
METERED COMPONENTS
REMOTE OUTLET SWITCHING
ENVIRONMENTAL CONDITIONS
-5 TO 60 C (23 TO 140 F)
OPERATING TEMPERATURE
STORAGE TEMPERATURE -20 TO 60 C (-4 TO 140 F)
HUMIDITY
5-90% RH / 5-95% RH;
(OPERATING/STORAGE)
NON-CONDENSING
MAX OPERATING
ELEVATION, ABOVE MSL
COMPLIANCE
RoHS COMPLIANT
SAFETY&ENVIRONMENTAL
IDENTIFICATION TABLE
MODEL IS SHOWN IN DEFAULT CONFIGURATION. FOR
OPTIONAL CONFIGURATIONS, USE ITEM IDENTIFIER
CODE IN PLACE OF EACH ASTERISK. ORDERABLE
BASED ON FORMAT: RP2325* * * *
200-240VAC
DO NOT INCLUDE TRAILING ZEROS IN * * * * SUFFIX
32A
OPTIONS LISTED ON THIS ROW ARE NON STANDARD,
CONTACT SALES FOR ADDITIONAL INFORMATION
7.4kVA
NOTES
:
1. INSTALLATION SHALL COMPLY WITH ALL APPLICABLE
SEE NOTE 7
AND LOCAL CODES.
2. PRIMARY DIMENSIONS ARE IN MILLIMETERS. SECONDARY DIMENSIONS
ARE IN [INCHES]
3. UNIVERSAL MOUNTING BRACKET IS AN ALTERNATIVE MOUNTING
METHOD TO THE TOOLLESS MOUNT FOR 3RD PARTY ENCLOSURES.
BRACKET IS PROVIDED WITH THE UNIT.
4. DETAILED INSTALLATION INSTRUCTIONS CAN BE FOUND IN THE QUICK
START GUIDE
5.
CONNECT EXTERNAL EARTH GROUND TO THE 10-32 SIZE THREADED NUT
6.
SEE PRODUCT DOCUMENTATION FOR FURTHER INFORMATION
7.
INPUT PLUG CONFIGURATION (SEE IDENTIFICATION TABLE) FOR DUAL-
YES
RATED UNITS, NEMA PLUGS ARE NAM RATED ONLY AND CAPTIVE AUS/NZ
PLUGS ARE EMEA RATED ONLY
3000M(9840FT)
THIS DRAWING AND SPECIFICATIONS HEREIN ARE THE PROPERTY OF CIS
GLOBAL AND SHALL NOT BE COPIED, REPRODUCED OR USED IN WHOLE OR IN
PART, AS THE BASIS FOR THE MANUFACTURE OR SALE OF ITEMS WITHOUT
WRITTEN PERMISSION FROM CIS GLOBAL. THIS DRAWING IS BASED UPON
LATEST AVAILABLE INFORMATION AND IS SUBJECT TO CHANGE WITHOUT NOTICE

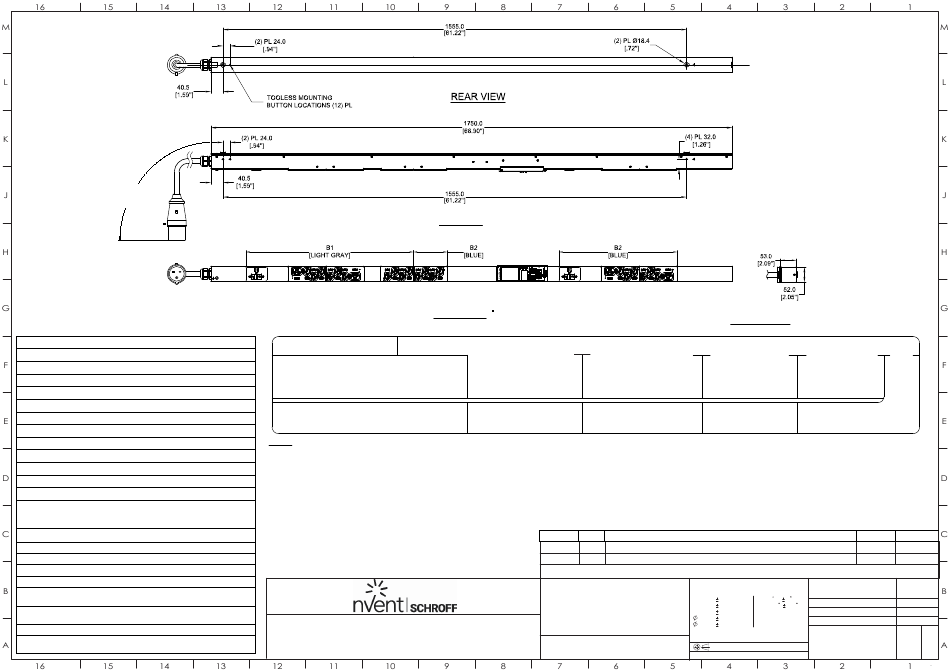

SIDE VIEW
FRONT VIEW
*
RP 2325
INPUT PLUG
(DEFAULT) 332P6(IP44)=0
NATIONAL, STATE
ECN-2210-0226
ECN/ECO
TITLE:
PROJECT:
RackPower
BOTTOM VIEW
* *
CORD OPTION
CHASSIS COLOR
(DEFAULT) 3m [10'] = 0
(DEFAULT) BLACK = 0 BLUE = B
1m [3.2'] = 1
RED = R WHITE = W
2m [6.6'] = 2
GREEN = G YELLOW = Y
1.2m [4'] = G
0.5m [1.6'] = A
ORANGE = A
1.5m [4.9'] = B 1.8m [6'] = F
2.5m [8.2'] = C
E2 REVISE METER ACCURACY AND ATTRIBUTES CONTENT
E1 INITIAL DRAFT REVIEW
REV. DESCRIPTION
REVISIONS
UNLESS NOTED, DIMENSIONS ARE IN
MILLIMETERS & TOLERANCES ARE:
Advantage Series
X. 1 MM
X.X 0.5 MM
Metered Switched
X.XX 0.20 MM
X.X 0.3 MM
X.XX 0.10 MM
BRACKETED DIMENSIONS ARE IN
INCHES FOR REFERENCE ONLY
THRID ANGLE PROJECTION
INTERPRET PER ASME Y14.5M-1994
*
ORIEN TATION
(DEFAULT) TOP FEED = 0
BOTTOM FEED = 2
2022/10/08 LRF
2022/05/13 LRF
DATE APPROVED
PART NO: REV.
E1
RP2325WXYZ_DA
X 1
DRAWN BY: LRF 2022/05/13
X.X 0.5
ENGINEER: LJB
2022/10/08
APPROVED BY: 2022/10/08
Hanson
SIZE:
SCALE:N/A
SHEET
A3
1 OF 3
