E-Key – Ultra Secure RF Remote Controls
Versatile 433MHz remote control transmitters & receivers with AES Encryption & rolling-code security
features.
Receivers for standalone (relays) or for access control system integration (Wiegand compliant outputs for use
with E-Keys running Wiegand, HID, Mifare or other bit formats)
Applications
 Security access control systems or standalone
Remote keyless entry

 Remote Garage door & gate operation
Car park barrier arms

 Home automation and security
General & security lighting

 Swimming pool controls (pumps, lighting)
Personal emergency alarming

 Any other application requiring wireless remote control
Features

2 or 4 button E-Key in Classic styling

4 button E-Key in Metallic styling, rated IP65

128 bit AES encrypted data transmission guarantees security as all transmissions are immune from
code grabbing and code scanning

16 bit rolling-code further ensures only legitimate E-Keys are accepted

Standard data-encryption key or your own unique data-encryption key

Transmission range over 100m without substantial barriers

Blue 'transmitting' LED on the E-Key for visual indication of any button press

E-Key battery life with normal use is estimated as more than the battery shelf life of 10 years

Up to 433 E-Keys may be added to each receiver unit

Access Control System integration receiver
Four Wiegand compliant data output channels
o
E-Keys are auto-added once seen by the receiver
o
The encryption key of the first E-Key is registered and all subsequent E-Keys must match that
o
of the first E-Key seen by the receiver
E-Keys are supplied pre-programmed with your Wiegand/HID/Mifare/other bit format
o

Standalone relay output receiver
Four voltage-free SPDT relay output channels provide a universal interface to any equipment
o
Easy-add first E-Key with the ADD button on the receiver
o
Additional E-Keys added via the ADD button or remotely in unison with an existing E-Key
o
Versatile relay operation modes (pulse, Flip/Flop, time delay, hold, etc.)
o
HRW Limited Unit E, 11/F, Sun Ying Industrial Centre
9 Tin Wan Close, Tin Wan
Hong Kong

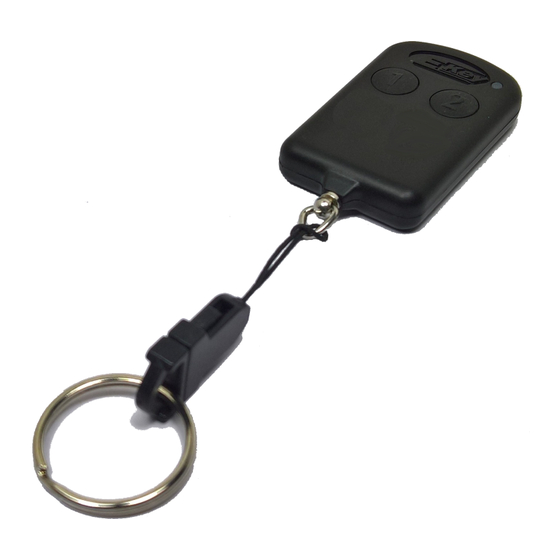

EKTX2C EKTX4C
Ph +852 2546 7402
Fax +852 2546 7403
EKTX4M
www.hrw.hk
