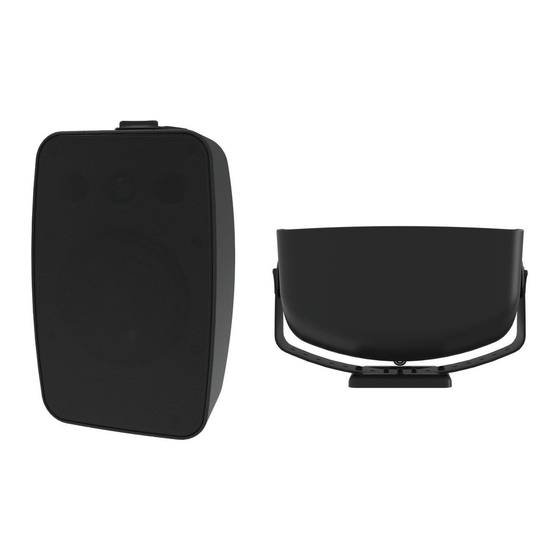

SAROS SMT6T-AW and SMT8T-AW Series
Saros® 2-Way All Weather Surface Mount Indoor/Outdoor Speakers
The Crestron Saros® speakers deliver professional grade performance
and flexible installation. The speakers support both surface and pole
mounting. The speakers have a clean and contoured enclosure with
weatherized construction, which can be mounted to most solid flat
surfaces using the included brackets.
In the Box
1
SAROS SMT Speaker
Additional Items
1
Bracket, wall mount
1
Bracket, U shape (mounting yoke)
2
Grille, speaker
4
Adhesive, grille
1
Hook, grille removal
4
Anchor, wall
10
Screw
4
Washer
2
Screw, knob
1
Plug, grommet
Installation
Prepare the Preconstruction Mounting Kit
1. Run the speaker wire (not included) from the amplifier to the speaker
location.
Quick Start
1
Advertisement
Summary of Contents for Saros SMT6T-AW Series
- Page 1 Quick Start SAROS SMT6T-AW and SMT8T-AW Series Saros® 2-Way All Weather Surface Mount Indoor/Outdoor Speakers The Crestron Saros® speakers deliver professional grade performance and flexible installation. The speakers support both surface and pole Installation mounting. The speakers have a clean and contoured enclosure with weatherized construction, which can be mounted to most solid flat surfaces using the included brackets.
- Page 2 Quick Start SAROS SMT6T-AW and SMT8T-AW Series Saros® 2-Way All Weather Surface Mount Indoor/Outdoor Speakers 2. Attach the mounting bracket to the mounting surface using four 3. Pull the speaker wire through the indicated wire feed hole on the included Philips screws and anchors.
- Page 3 Quick Start SAROS SMT6T-AW and SMT8T-AW Series Saros® 2-Way All Weather Surface Mount Indoor/Outdoor Speakers Attach the Speaker to the Mounting Kit 4. Select the desired pitch to attach the yoke bracket to the mounting bracket. Then, push the yoke bracket onto the three rubber nubs on the mounting bracket.
- Page 4 Quick Start SAROS SMT6T-AW and SMT8T-AW Series Saros® 2-Way All Weather Surface Mount Indoor/Outdoor Speakers 2. Connect the wire from the amplifier to the phoenix connector on the b. Connect the wires from the amplifier (or the previous speaker) to front speaker baffle: the supplied terminal block, using the IN terminals;...
- Page 5 Quick Start SAROS SMT6T-AW and SMT8T-AW Series Saros® 2-Way All Weather Surface Mount Indoor/Outdoor Speakers d. If wiring for a 70V/100V distributed run, set the proper wattage 3. Fit the grille onto the speaker. for each speaker on the Transformer Tap selector on the front of Optionally, to ensure a stronger hold of the grille in the channel, insert the speaker.
- Page 6 Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource. Crestron, the Crestron logo, and Saros are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Other trademarks, www.crestron.com/model/6511863 registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
