AALTO WALL ROUTER - QUICK GUIDE
This is a quick guide for installing the Aalto Wall Router.
Make sure you also have the Aalto Control 4.0 User Manual at hand.

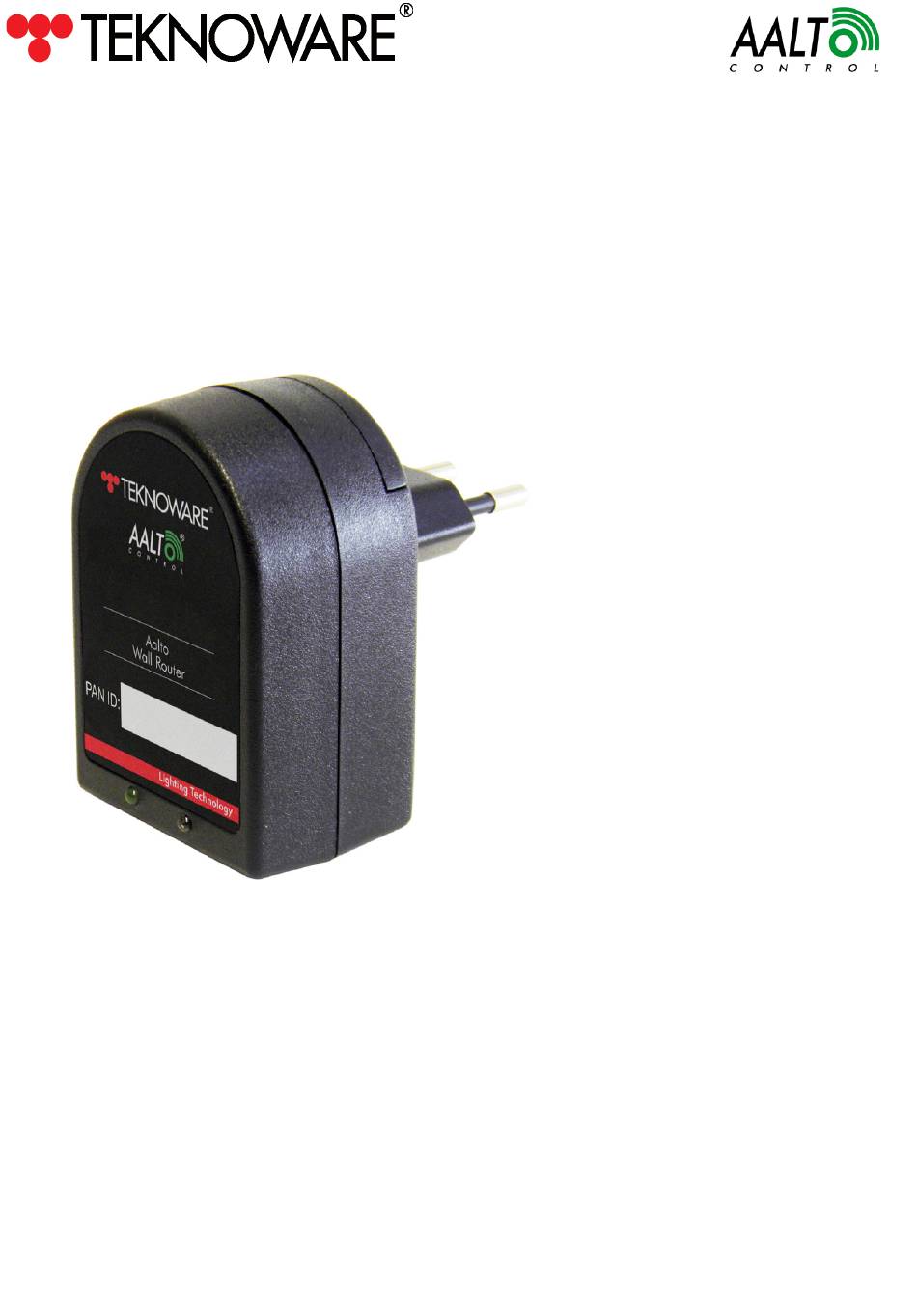

Aalto Wall Router is a small wireless network extender which can be used for extending the
range of an Aalto Control network.

1. To Install the Wall Router

1. Install the Wall Router before adding the luminaires to the Aalto Control 4.0 software.
2. Make sure that the Wall Router is in the same PAN ID network with the Aalto Control
luminaires and Coordinator.
3. Plug the Wall Router into a standard wall power socket in a safe location. Write down
the RF-ID of the Wall Router.
4. When adding the luminaires in the Aalto Control 4.0 software, do not add the Wall
Router to the software. If the router is found in an automatic luminaire search (see
page 9 in the Aalto Control 4.0 User Guide), identify it by using the RF ID, and delete it
from the software.
© Copyright 2014 Teknoware Oy – We reserve the right to make modifications without notice
NOTE
VOT75 - 26.02.2014
