Eavision Agricultural Automatic Sprayer

User Manual

V2.1 / 2022.06

EA-20X

Table of Contents

Need help?

Do you have a question about the EA-20X and is the answer not in the manual?

Questions and answers

Summary of Contents for EAVISION EA-20X

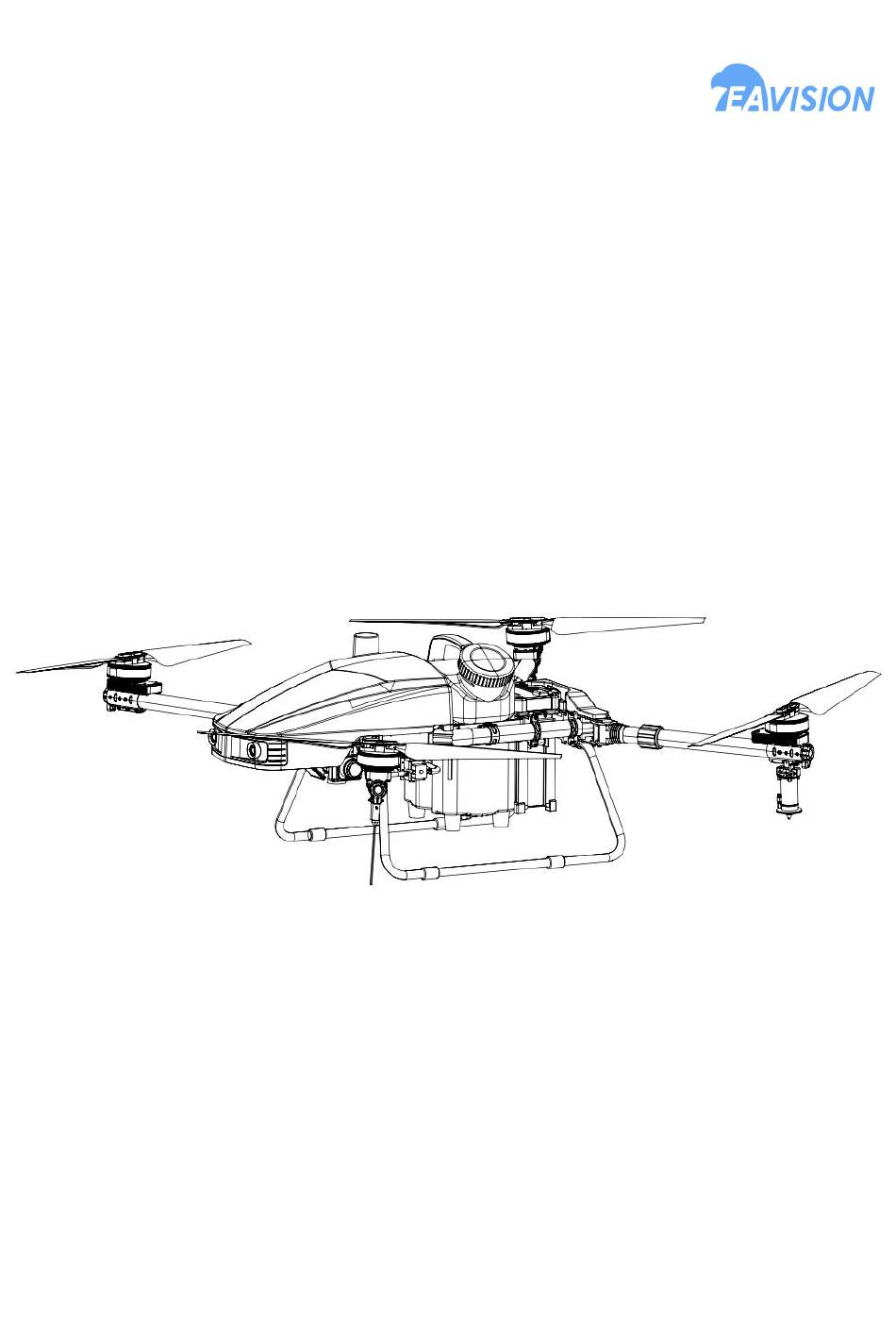

Page 1 Eavision Agricultural Automatic Sprayer User Manual V2.1 / 2022.06 EA-20X...
Page 2: Table Of Contents
Table of Contents Product overview ................................ 2 Disclaimer ..................................3 Aircraft system composition ..........................4 Technical parameters ..............................5 Remote control ................................8 Remote control parts ............................9 Remote control ports ............................10 Remote control operation ..........................11 Operating the aircraft ..........................12 Linking ................................13 Operation control ............................13 Remote control indicator ..........................14 Notice ..................................
Page 3: Product Overview
Product overview The EA-20X series of low-altitude all-area detection plant protection drones are the multi-rotor plant protection drones launched by Suzhou EAVISION Robotics Technologies Co., Ltd. Build upon the company’ s industry-leading binocular vision technology, the drone can complete plant protection services for various terrains and crops.
Page 4: Disclaimer
In the process of using the product, the user acknowledges to be responsible for their own behavior and all consequences arising therefrom. EAVISION Technologies shall not be liable for all losses caused by the user's failure to use the product in accordance with this document, and shall not be liable for any indirect, consequential, punitive, incidental, special or penal damages.
Page 5: Aircraft System Composition
If operation of the drone is necessary, it is pertinent to ensure that no idle person is within 200 meters of the operating area. EAVISION Technologies is not responsible for any product damage, equipment damage and/or personal injury caused 　...
Page 6: Technical Parameters
Technical parameters 1070 mm @ Front and rear power axles Wheelbase 1330 mm @ Left and right power axles 24.55 kg（Standard Model） Aircraft Bare Frame Weight 25.25 kg（All-Terrain Model） Dimensions (without propellers) 1430*1170*510 mm Arm Lengths 506 mm Folded Aircraft Dimensions 960*620*510 mm Liquid Container 15L/20 L...
Page 7 Liquid Atomization 10-100 μm Liquid Flow 400 ~3500 ml/min 4~5 m Suitable for this drone EAVISION EA2020, EA-20X Battery Type Lithium Ion Battery 13S Voltage 48.75 V Energy Output 975 Wh Battery Weight Around 6.75 Kg Discharge Ambient Temperature Range 3℃~55℃...
Page 8 Fuel Tank Capacity 15 L Engine Output 236 CC Maximum Engine Power 6000 W Engine Speed 3700 RPM Fuel Type #92 Petrol Oil Type SE15W-30W Fuel Consumption ≤0.50 L/KW Dimensions (Not including handles and 189*138*41mm antenna) Operation Frequency 5.8 G Remote control Transmission Distance 1.2KM...
Page 9: Remote Control
Remote control Overview EAVISION remote control adopts new advanced high-definition image transmission communication technology, with adaptive frequency band, which can automatically select the working frequency band with the lowest interference. The remote control is equipped with omnidirectional antennas as standard, and the image transmission and control distance can reach 1.2 to 1.8 kilometers.
Page 10: Remote Control Parts
Displays the system status of the remote Turn on/off forced spraying control 6. Battery Level Indicator Displays the current built-in battery level 13. Button (customizable) of the remote control 14. Touchscreen 7. Centering Dial (customizable) Built-in Android system, can directly run EAVISION APP...
Page 11: Remote Control Ports
Remote control ports Overview - Transmitter Top Overview - Transmitter Bottom 1. Standard HDMI Port 5. TF Card Slot External display, video output External storage 2. 4P DATA Port 6. SIM Card Slot External RTK port Access to mobile network 3.
Page 12: Remote Control Operation
Remote control operation Power On/Off 1. When the remote control is off, short press the power button once, the battery indicator will light up, if the battery is low, please charge it. 2. When the remote control is turned off, short press the power button for about 1 second, the battery indicator lights up, then press and hold the power button for about 2 seconds.
Page 13: Operating The Aircraft
Operating the aircraft The joystick mode of the remote control can be changed in "System Settings" in "SIYI TX" APP. The joystick mode is divided into mode 1 (Japanese standard), mode 2 (American standard) and mode 3 (Chinese standard), as shown in the following figure:...
Page 14: Linking
Linking 1. Enter "System Settings" in "SIYI TX" APP, find “Frequency” and click "Start". 2. The status indicator of the remote control will flash red quickly, and it will display “Linking” on the screen. 3. Press and hold the link button of the receiver for 2 seconds, the receiver status indicator will flash red quickly.
Page 15: Remote Control Indicator
Remote control indicator The status indicator of the remote control has different meanings by flashing three colors and different flashing frequencies. Indicator Remote Control Status Red light flashes quickly Linking Red-green-yellow flash alternately slowly Image transmission is starting Red-green-red-green-red flash alternately Unexpected shutdown of Android system Red light flashes slowly Firmware does not match...
Page 16: Checklist Before Use
Checklist before use 1. Check whether the equipment is complete before operation  EA-20X aircraft  Remote control  Battery  Charging station  Surveying tool  Mobile base station 2. Check aircraft  Check whether the aircraft arm sleeve is properly tightened and whether the screws are securely in place, especially the motor fixing screws and propeller fixing screws.
Page 17: Operating Instructions
Operating instructions 1. The Smart AG App Smart AG is an important software for controlling the aircraft. Its main functions include task sending, route planning, spraying parameter settings, operation mode settings, flight parameter settings, forwarding differential signals, and aircraft data interaction, etc. . Download the App The App works with Android systems.
Page 18 Do not carry magnetic objects such as keys, mobile phones, etc. when calibrating. Power on the drone, open the EAVISION App, and after pairing the drone enter the details of the drone and click "Magnetic Compass Calibration". Follow through with compass calibration according to the App prompts.
Page 19: Maintenance Instructions
 After the ESC emits three short, high pitched sounds, do a self-check and wait for the drone to broadcast a ready to operate notice.  Plan routes, set parameters, and upload the information into the piloting program. Always ensure that there is no one within 10 meters when the drone takes off. 7.
Page 20: Battery Maintenance And Precautions
Slowly charge to revive the battery after long storage times. 2) Notes:  Do not charge EAVISION smart batteries with unofficial chargers.  Do not use or store batteries near open flames, heat sources, flammable material, explosives, or corrosive items.
Page 21: List Of Dangers And Hazards
List of dangers and hazards Type Number Description Recommended Response Rotating propeller hazard Seek Medical Attention Immediately Use sand or a fire extinguisher to douse out Accidental battery fires the fire Seek medical attention and attempt to Pesticide residue on skin immediately wash off with water Dangers Try the hover and if unable to resort to crash...
Page 22: Fault Handling Instructions
Fault handling instructions Fault Handling Instructions 1) Power on the drone again (make sure the entire system is powered off and then powered on again), if the problem is fixed, you may continue operations. Navigation Failure 2) If the problem persists, the aircraft should be powered off (including backup batteries) and proceed to contacting customer services.
Page 23 before switching. 1) Check whether there are any obstacles between the take-off point and the Failure to Locate Safe operation area. If there are no obstacles, you may continue. Zones 2) If there is an obstacle between the take-off point and the plotted area, we recommend relocating to a new zone.
Page 24: Warranty
Warranty The scope of the "Warranty" warranty for EAVISION aircraft products: Products subject to free warranty service must meet the following requirements:  Normal use within the specified product warranty period  Quality reasons such as product performance failure ...
Page 25 List of “Warranty” EAVISION Components Parts name Warranty period List # Flight control 12 Months 12 Months Power distribution board 12 Months GPS and signal communication equipment 12 Months Cameras 12 Months Distance sensors 12 Months Spraying control module 12 Months...
Page 26: Nameplate
Nameplate Refer to the nameplate for the factory number and model number ＦＣＣ　Ｓｔａｔｅｍｅｎｔ　 Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment Ｔｈｉｓ　ｄｅｖｉｃｅ　ｃｏｍｐｌｉｅｓ　ｗｉｔｈ　Ｐａｒｔ　１５　ｏｆ　ｔｈｅ　ＦＣＣ　Ｒｕｌｅｓ．　Ｏｐｅｒａｔｉｏｎ　ｉｓ　ｓｕｂｊｅｃｔ　ｔｏ　ｔｈｅ　ｆｏｌｌｏｗｉｎｇ　ｔｗｏ　ｃｏｎｄｉｔｉｏｎｓ：　（１）　Ｔｈｉｓ　ｄｅｖｉｃｅ　ｍａｙ　ｎｏｔ　ｃａｕｓｅ　ｈａｒｍｆｕｌ　ｉｎｔｅｒｆｅｒｅｎｃｅ，　ａｎｄ　...
Page 27 Repair Date Repairer Records Date Description Details Remarks: 1. This certificate must be stamped by the authorized sales unit of EAVISION Robotic Technologies to take effect. Co., Ltd. 2. For details, please refer to the Applicable detailed list of company guarantees.
Page 28 Please Follow EAVISION Official Social Media Channel： YouTube，Facebook，Twitter，LinkedIn,Instagram The contents of this manual and product specifications are subject to change without prior notice. Suzhou Eavision Robotic Technologies Co.,Ltd. Address: Unit1-A, No.3 Workshop, 28 Xiasheng Road, SIP, Suzhou, Jiangsu Province, China Website：www.eav.top...
