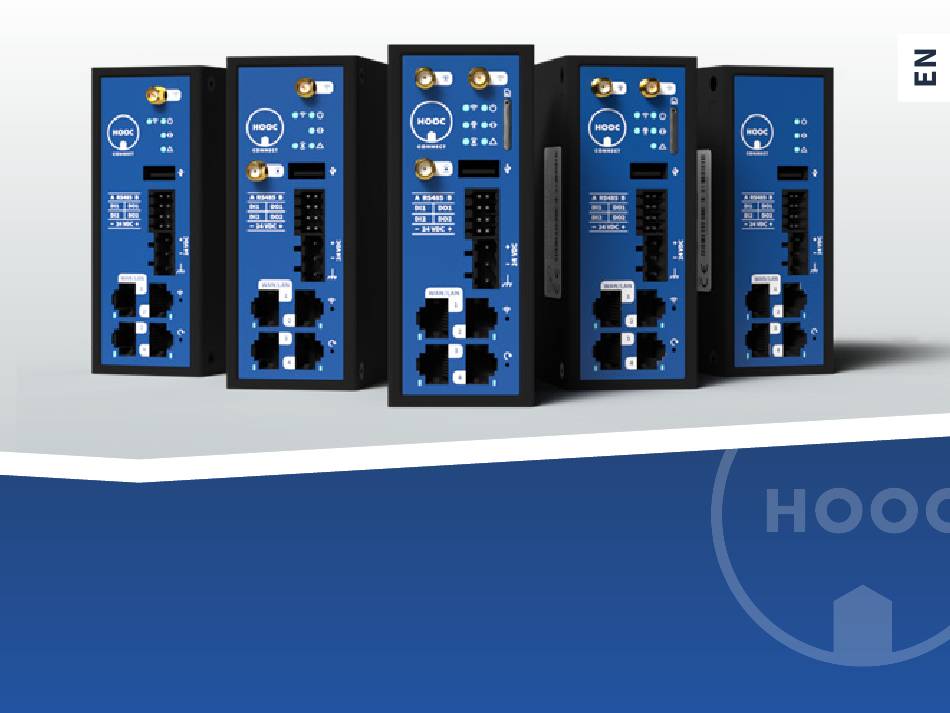

- Page 1 INSTRUCTION MANUAL Connect X, Connect XM, Connect XF, Connect XH und Connect XT...
-
Page 2: Scope Of Delivery
(Weidmüller BLDF 5.08/03/180 SN BK BX) • 1x female plug I/O (Weidmüller B2L 3.50/08/180 SN BK BX) • 1x WiFi antenna (only for Connect X, XM, XF or XH) • 1x LTE antenna (only for Connect X or XM) • 1x LoRa antenna... -
Page 3: Legal Notice

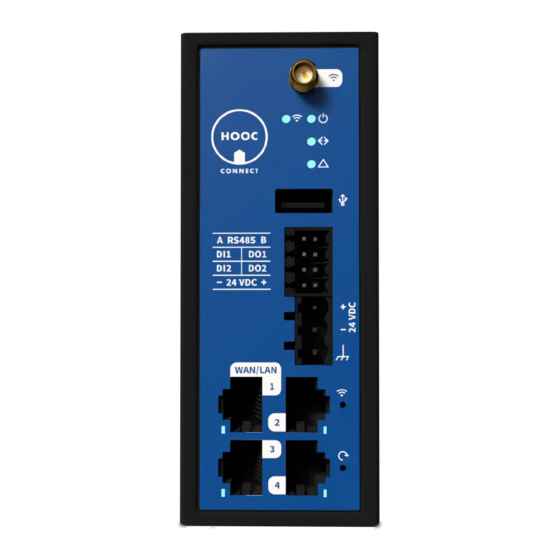

USAGE • in areas where blasting is in progress or The HOOC gateway is designed for the re- where explosive atmospheres may be mote control of systems and sites, by means present, including gas stations, fuel de- of a secure VPN connection via the Inter- pots and chemical plants;... - Page 4 LTE antenna WiFi antenna SIM card holder (Nano) LED «WiFi status» LED «Power status» LED «Mobile status» LED «Secure Remote Access status» LED «LoRa status» LED «Device status» LoRa antenna Digital I/O and RS485 Power supply Button «WiFi Access Point» Ethernet-Port 1 Ethernet-Port 2 Reset button...
- Page 5 CONNECTORS / CONNECTION / LED X XM XF XH XT Power supply CHECK CHECK CHECK CHECK CHECK Digital I/O and RS485 CHECK CHECK CHECK CHECK CHECK CHECK CHECK CHECK CHECK CHECK Ethernet Port 1 (WAN / LAN /Configurable software with activity LED) CHECK CHECK CHECK CHECK...
-
Page 6: Quick Start
(see «Linking via • Then, place the SIM card in the holder HOOC ManagementPortal»). («Connection»). Please note that this only applies to the Connect X and XM • There you enter the required information and the 20-digit serial number of your gateways. - Page 7 STEP 1: INSTALLATION • The gateway can be installed both verti- • In order to ensure that an- cally and horizontally. Make sure to leave tenna is used correctly, enough free space (distance of min. 25 mm) please pay attention to the for the ventilation slots.
-
Page 8: Step 1: Installation
STEP 1: INSTALLATION 1. Hold the gateway at a slight angle over 2. Now press the gateway straight down. the upper edge of the top-hat rail. Then Make sure not to release it until it has cli- click it into the upper opening (behind cked into the lower fixture. -
Page 9: Step 1: Typical Connection Diagram
STEP 1: TYPICAL CONNECTION DIAGRAM The gateway provides an additional connection Internet LoRa for the functional earth. It is recommended to con- nect it to the protective WiFi earthing in the control - + A B cabinet. This will improve the immunity of the device to conducted and radiated RF interference, as well as... - Page 10 STEP 1: CONNECTION (MODELL X, XM) SIM CARD (NANO, FORM FACTOR 4FF) 1. Press with a small tool 2. Place the SIM card from 3. Push the holder back on the holder and pull behind on the holder. with light pressure. it out.
- Page 11 STEP 1: CONFIGURATION • Connect your HOOC gateway to the pow- • Configure your gateway using the follo- er supply. wing controls: • Connect your computer to the LAN net- Reject configuration work (ethernet port 2 of your gateway). Save configuration •...
- Page 12 Configuration mode active LED FOR WIFI, VPN, MOBILE & LORA Switched off Initialization Connected STATUS LED Normal operation No connection to the Internet Cannot obtain an IP address Standard gateway not accessible DNS server not accessible No connection to HOOC Cloud...
- Page 13 • Log in to the HOOC ManagementPortal • If you do not have an account, you first (https://my.hooc.me). want to register as a HOOC reseller (as de- scribed in the opening pop-up). You will then receive an e-mail from HOOC. Click on the link contained therein to complete the registration.
- Page 14 ClientApp is available in the HOOC Ma- nagementPortal under «Downloads- Software and Tools». • After that, log in the ClientApp with the same user data as in the HOOC Manage- mentPortal • Now you are ready to go: Access, monitor, program and control your plant remotely.
- Page 15 INSTRUCTIONS FOR USE INSTALLATION clean it carefully with a dust cloth. Further- Please install your gateway in such a way, more, you should avoid any external me- that there is enough free space around it, so chanical influences (e.g. shock). In any case, that it can always cool down.
-
Page 16: Technical Data
TECHNICAL DATA EXTERNAL POWER SUPPLY REQUIREMENTS • 2x digital inputs, galvanic isolation, • Limited current source according to current limit 15 mA, input voltage IEC60950-1 or PS2 classified IEC62368-1, nominal: 0-30 V, value at input voltage short circuit current <8A 0-5 VDC is ‹inactive›, value input voltage >15 VDC is ‹active›... - Page 17 TECHNICAL DATA WIFI FEATURES MECHANICAL PROPERTIES • WiFi access point or WiFi client • 110 mm x 44.5 mm x 127 mm (H x B x T) • IEEE 802.11 b/g/n, max. 150 Mbps • Weight 400 g • Supported encryption protocol: •...
- Page 18 HOOC AG | Torweg 8 | 3930 Visp | +41 27 948 46 00 | info@hooc.ch www.hooc.ch/connect...
