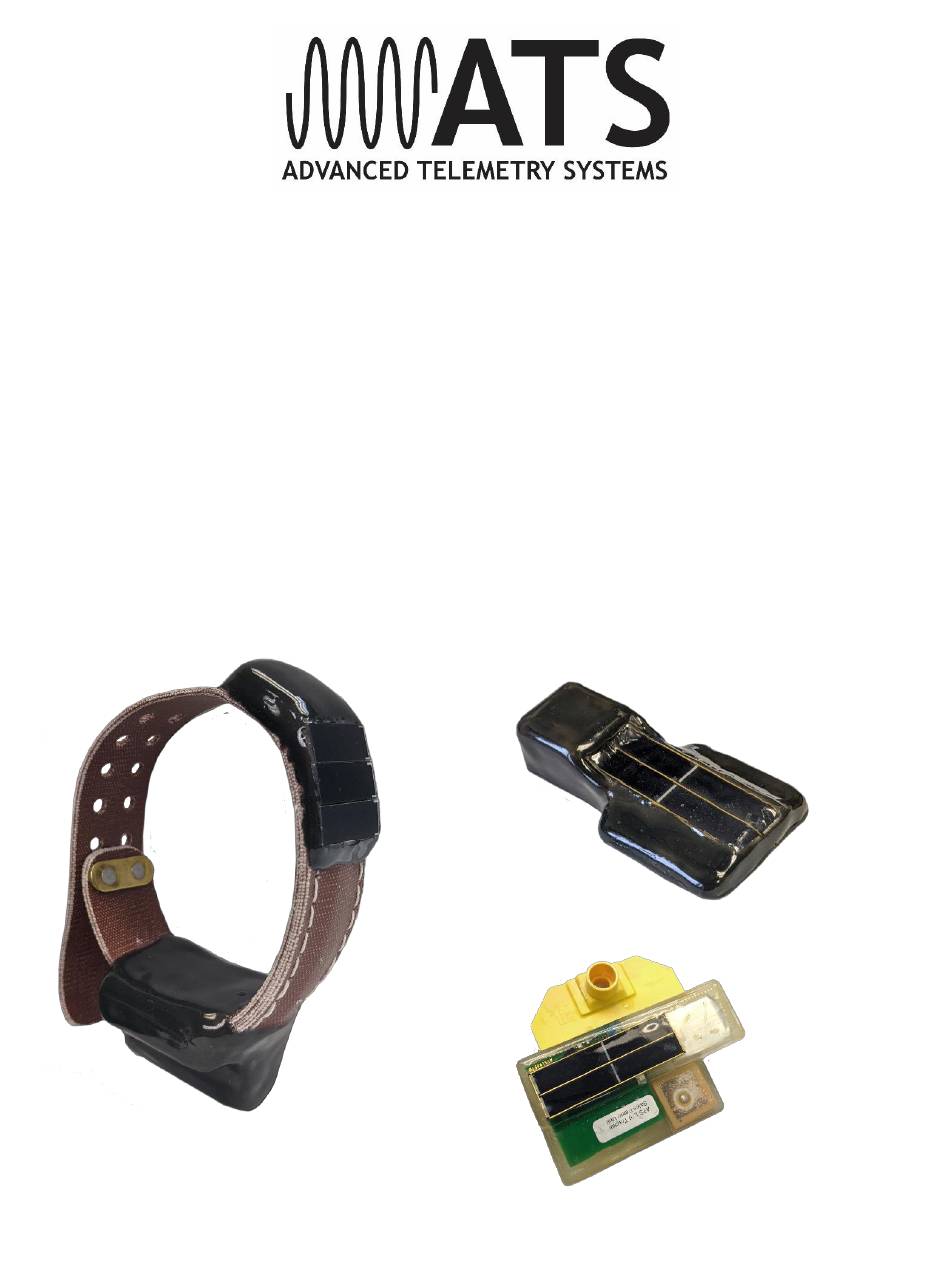

L20 Solar-Cell Tracker
User's Manual
IMPORTANT: Your L20's SIM card has been activated for a 5-year period of service.
After this period, ATS will contact the customer to determine if the data period should be
renewed.
Trackers ARE NOT refurbishable. Do not return trackers for refurbishment service
or disposal.
1
Oct 28, 2022
Advertisement
Table of Contents
Related Manuals for ATS L20
Summary of Contents for ATS L20
- Page 1 User’s Manual IMPORTANT: Your L20’s SIM card has been activated for a 5-year period of service. After this period, ATS will contact the customer to determine if the data period should be renewed. Trackers ARE NOT refurbishable. Do not return trackers for refurbishment service or disposal.
- Page 2 Introduction The L20 Solar-Cell Tracker is a lightweight, solar rechargeable, LTE-M Cellular enabled GPS tracking device. With indefinite battery life due to rechargeability, the L20 is well- suited for use in multiple longer studies. Tracker configuration and data download is done via web browser at ATSloggers.io.
- Page 3 Section 3 Using the Web Interface All configuration and data downloads for L20 trackers are done via a simple browser web interface at atsloggers.io. This interface changes values within a cloud that the trackers connect to on each scheduled LTE session Logging in From any web browser, enter ‘atsloggers.io’...
- Page 4 Taking the tracker out of sleep mode Taking the magnet off of the tracker will take the L20 out of sleep. Five blinks of the LED will confirm this. On wakeup, the L20 will always attempt to connect to LTE to upload data and update settings (provided the battery is not significantly drained).
- Page 5 LED Blink Pattern Table There are a number of events on the L20 that are indicated by LED blinks patterns, and the guide to each pattern is shown below in Table 1. Interaction LED pattern Meaning Place magnet on Tracker...
- Page 6 The L20 has an onboard solar charging circuit that is able to charge the battery in both high and low-light scenarios. There are separate battery thresholds for different events within the L20, as when battery drops too low, activity is kept at a minimum in order to charge.
- Page 7 Section 6 Attaching the Tracker The method of attaching the L20 to an animal varies on the exact model that was ordered. Glue-on Attachment The Glue-on configuration is up to the customer, when it comes to choosing adhesives and location on the animal. To ensure proper operation, do not cover the solar panel, even with a clear material.
- Page 8 Should you encounter any difficulty during configuration or operation of your trackers, please contact ATS Sales and Service at 763.444.9267 during normal business hours. This and other ATS User Manuals, as well as software, are available for download from the ATS website, at www.atstrack.com.
