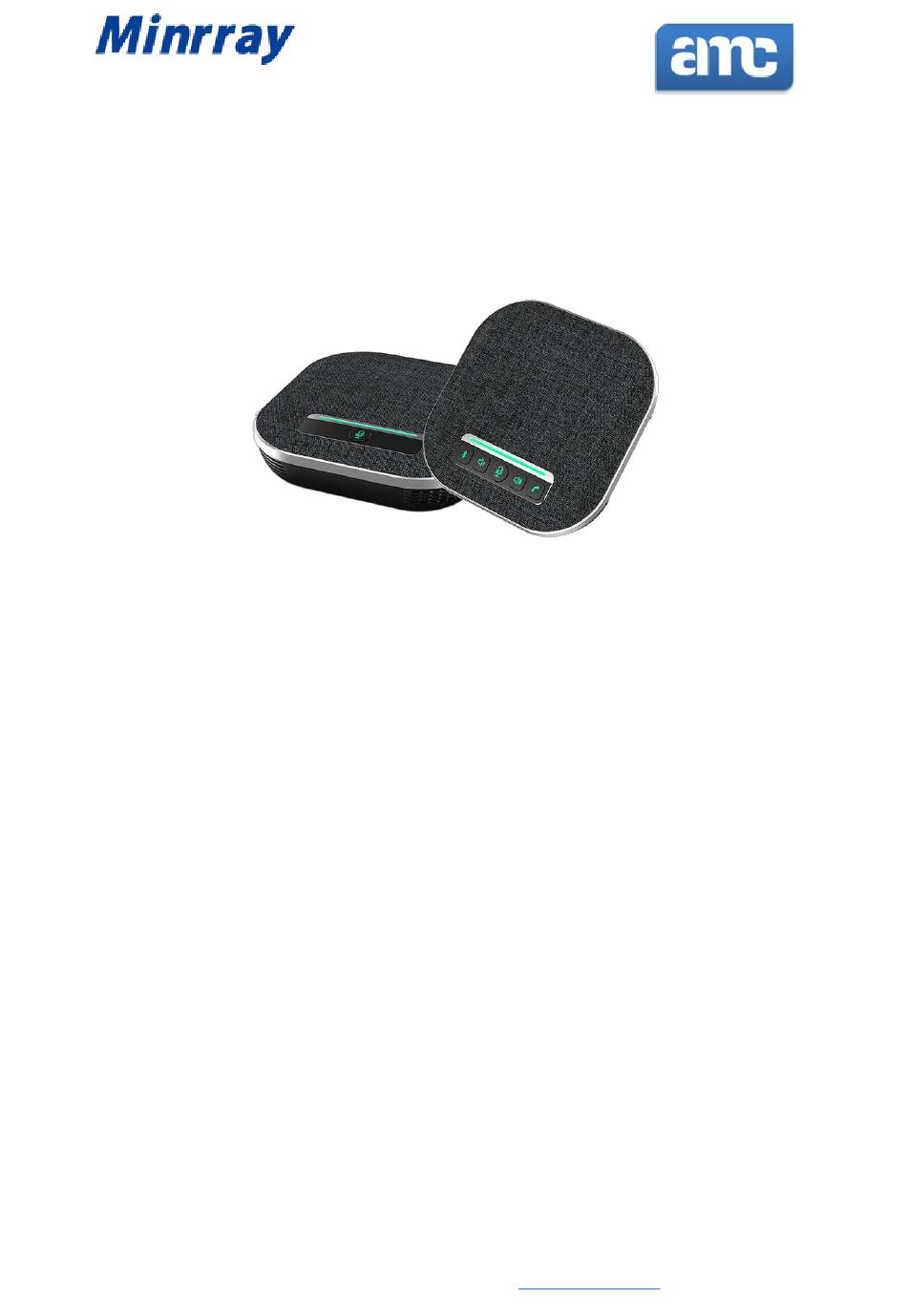

VC700 Omnidirectional Microphone Kit
VC700 is a professional-grade omnidirectional microphone kit, which adopts international
advanced voice processing technology, provides 48K sampling rate, and echo cancellation is
up to 500ms. The sound quality is clear and beautiful, intelligent noise reduction completely
eliminates clutter, and the voice is restored with high fidelity. Built-in 4-channel high-definition
microphone array, the best pickup distance is 12, the sound is lifelike, clear and natural. The
high-fidelity digital sound system has a wide sound field, full and transparent. Suitable for
meeting scenes of different sizes. It supports Bluetooth connection, allowing easy and
pleasant remote communication anytime, anywhere.
VC700 has perfect expansion capabilities. When it needs to be used in a larger meeting
room or for group discussions, the product is equipped with an expansion unit, which has a
speaker system and a microphone system, so the two equipment can work in a conference
environment at the same time. The speakers and microphones of the main unit and the
expansion unit are fully synchronized, and they can be controlled with each other at the
same time, which greatly optimizes the omnidirectional microphone's pickup and playback
capabilities, bringing a better experience to the user.
ambient media & comunicación s.l.
plaza mayor 5 | 28450 collado mediano | spain | tel. +34 91 3250849 | info@ambientmedia.es | CIF. ESB-83140053

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the amc VC700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for minrray amc VC700

  • Page 1 VC700 Omnidirectional Microphone Kit VC700 is a professional-grade omnidirectional microphone kit, which adopts international advanced voice processing technology, provides 48K sampling rate, and echo cancellation is up to 500ms. The sound quality is clear and beautiful, intelligent noise reduction completely eliminates clutter, and the voice is restored with high fidelity.
  • Page 2 Features:  Full duplex deep echo cancellation, 48k broadband voice call HD technology, intelligent microphone mixing, dynamic noise suppression, automatic gain technology.  The main microphone has 4 built-in unidirectional microphones to form a 360-degree sound pickup, and the collection distance is 12 meters. ...
  • Page 3 Technical Specification: Item Parameter Description Product Appearance Acoustic echo Full-duplex echo cancellation depth can reach more cancellation(AEC) than 65dB ≥500ms Echo length Two-way noise Noise compression below: 25dB compression(NC) Audio technical parameters Automatic Direction finding Technology of Support Intelligent microphone (EMI)...
  • Page 4 3.5MM audio in/out interface Connect with extended RJ45metwork port microphone USB Interface TYPE-B audio in/out interface Long press 3S to open the Power switch device Expansion Microphone Connected with main RJ45 network port microphone Button silk screen Volume button decrease/increase volume Bluetooth button Turn on/off Bluetooth Off-hook/on-hook(off-hook...
  • Page 5 Press the volume down button and the microphone mute button at the same time for 5 seconds. At this time, the green Mobile Phone Mode light of the button indicator flashes 5 times, indicating that it has entered the mobile phone mode.
  • Page 6 Blue light flashing Bluetooth pairing status Bluetooth status indicator Blue light is on Bluetooth is connected Red light is on Mute the microphone Microphone status green light is indicator The microphone is working always on Red light is on Mute the microphone green light is The microphone is working always on...
  • Page 7 Operating temperature 0°C-50°C (Operating statue) humidity 20%-85% Safety specifications CE MARK (LVD & EMC DIRECTIVE ); ROHS Dimension 152mm*152mm*38mm USB cable/cascade cable/instruction Standard accessories manual/certificate/warranty card Accessories Optional Bluetooth Dongle ambient media & comunicación s.l. plaza mayor 5 | 28450 collado mediano | spain | tel. +34 91 3250849 | info@ambientmedia.es | CIF. ESB-83140053...
