Summary of Contents for ULANZI AY6C
- Page 1 USER MANUAL User manual Gebrauchsanleitung Manual de Usuario...

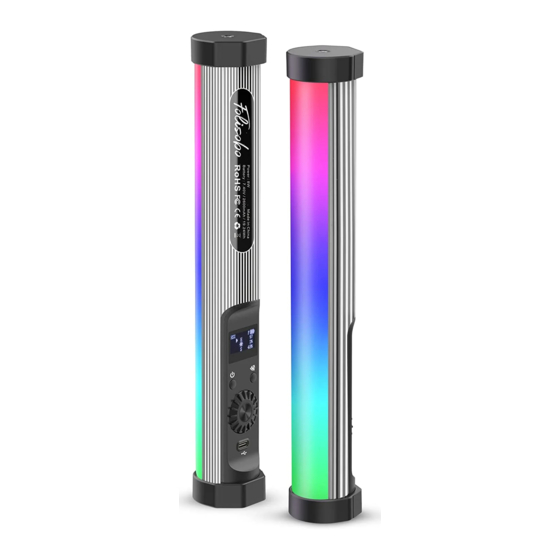

- Page 2 INTRODUCTION INTRODUCTION Thank you for purchasing our product! Magnets at both ends enable the light wand to be adsorbed on iron surfaces. And it also can be used handheld or mounted on a bracket. photography fill light The lithium battery of the light wand has a capacity of 7.4V 2600mAh, which is available to be charged via the Type-C interface.
- Page 3 WARNING PART NAME 1. Please keep the product dry. Do not touch it with wet hands, and do not immerse it in water or expose it to rain. 1/4 ” Screw Hole LED Lamp Beads 2. Do not use the product in high temperatures or closed spaces under direct sunlight. PC transparent tube OLED Display Screen 3.
-
Page 4: Power On/Off
Note 1. Power ON/OFF Once turning on, the OLED display shows the memorized parameters of the previous use and the light wand works based Long press the [ ] button to turn on the power, the LED lights up on these parameters. and displays current battery level and working mode. -
Page 5: Hsi Mode
5. HSI Mode 4. CCT Mode Short press the multi-function knob to set brightness and color temperature respectively, then Short press the multi-function knob to set hue, brightness, and saturation respectively, then rotate to adjust hue (H) from 0 to 1530, brightness( ) from 0% to 100%, and saturation(S) from 0% to rotate the knob to adjust the brightness from 0% to 100% or color temperature from 2500K to 8500K. - Page 6 6. RGB Mode 7. SCENE Mode Short press the multi-function knob to set R/G/B color from 0 to 255 respectively, and get different Support 10 kinds of scene effects. Short press the multi-function knob to switch effect and rotate the colors by adjusting the above-mentioned parameters.
- Page 7 8. Restore the Default Setting Scene Mode Effect Scene Mode Effect Long press the multi-function knob for 7 seconds to restore the default setting (CCT mode, color Lightning1 Lightning1 Fire truck Fire Truck Simulation temperature 5500K, brightness 0%). Lightning2 Lightning2 Fast RGB RGB Cycle at Fast Speed 9.
-
Page 8: Usb Charging
10. USB Charging 12. Three-Sided Magnetic Adsorption Adopt the Type-C interface for charging the light wand. Connect Type-C to USB cable with a USB The top and bottom of the light wand and both ends of the side where its control panel is located are adaptor(sold separately) to charge the light wand. -
Page 9: Specification
SPECIFICATION SPECIFICATION 280x 38mm(11.02 x 1.5in) Aprox.100 min at 100% Charging Battery Duration Size Name photography fill light (high: 42.9mm/Width: 42.5mm) Type-C brightness Interface (1.69 x 1.67in) TLCI Charging Power 5V2A Fixed Interface 1/4 ” Screw Hole x 2 Number of CCT Color 69pcs (24pcs of warm white light + 24pcs 2500~8500K( 100K) - Page 10 SPECIFICATION SPECIFICATION Note： Illumination at 100% Power The specifications of this product are tested according to the samples from the company's laboratory. The finished Lamp Beads/ 0.3m 0.5m Lumen product possibly has a slight difference, which will not affect regular use. Design and Distance specifications are subject to Warm White Light...
-
Page 11: Fcc Warning
However, there is no guarantee general RF exposure requirements. The device can be used in portable exposure conditions without restriction that interference will not occur in a particular installation. FCC ID: 2A5T8-AY6C...
