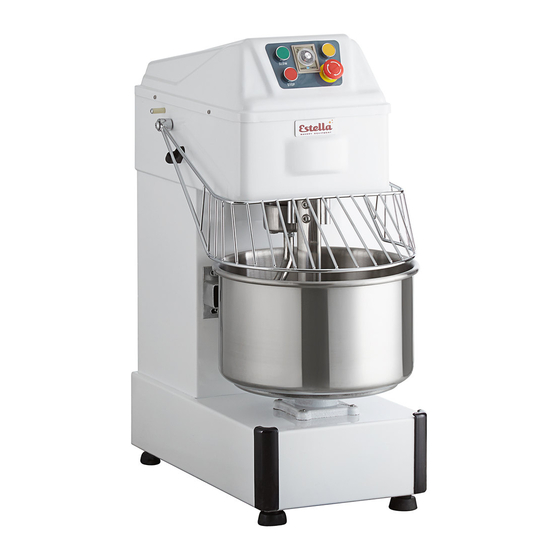

Estella 348SM20 User Manual

Spiral mixers with guards

Hide thumbs Also See for 348SM20:

11/2021

USER MANUAL

SPIRAL MIXERS

WITH GUARDS

348SM20

348SM30

20 Qt.

30 Qt.

Table of Contents

Need help?

Do you have a question about the 348SM20 and is the answer not in the manual?

Page 1 11/2021 USER MANUAL SPIRAL MIXERS WITH GUARDS 348SM20 348SM30 20 Qt. 30 Qt.
Page 2: Table Of Contents
INDEX Important Safety Information ........2 Operation .
Page 3: Important Safety Information
SAFETY When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Keep the working around surrounding the machine clean and organized . 2. Consider environmental conditions surrounding the machine. Do not use the machine in humid, wet or poorly lit environments.
Page 4: Operation
OPERATION 1. Before use conﬁrm the power supplied to the unit is correct . Run the machine empty for a few seconds to conﬁrm that no moving parts are colliding and there is no abnormal noise. Failure to do so may cause damage to your machine and void the warranty . 2.
Page 5: Specifications & Capacities
SPECIFICATIONS & CAPACITIES 348SM20 348SM30 Bowl Capacity 20 QT. 30 QT. Flour Capacity 17.5 LB. 27.5 LB. Minimum Flour Capacity 5.25 LB. 8.25 LB. Dough Capacity (60% AR)* 32 LB. 55 LB. Voltage 120V 120V 1500W 1500W Horsepower Phase Single...
Page 6: Circuit Diagram
CIRCUIT DIAGRAM...
Page 7: Troubleshooting
TROUBLESHOOTING Issue Cause The axles can't work when Poor contact of the electrical operating the machine equipment into the outlet The mixing bowl is out of Check to see that everything is Moving direction is not correct position aligned correctly Leaks oil Sealing washer is damaged Replace the sealing washer...
