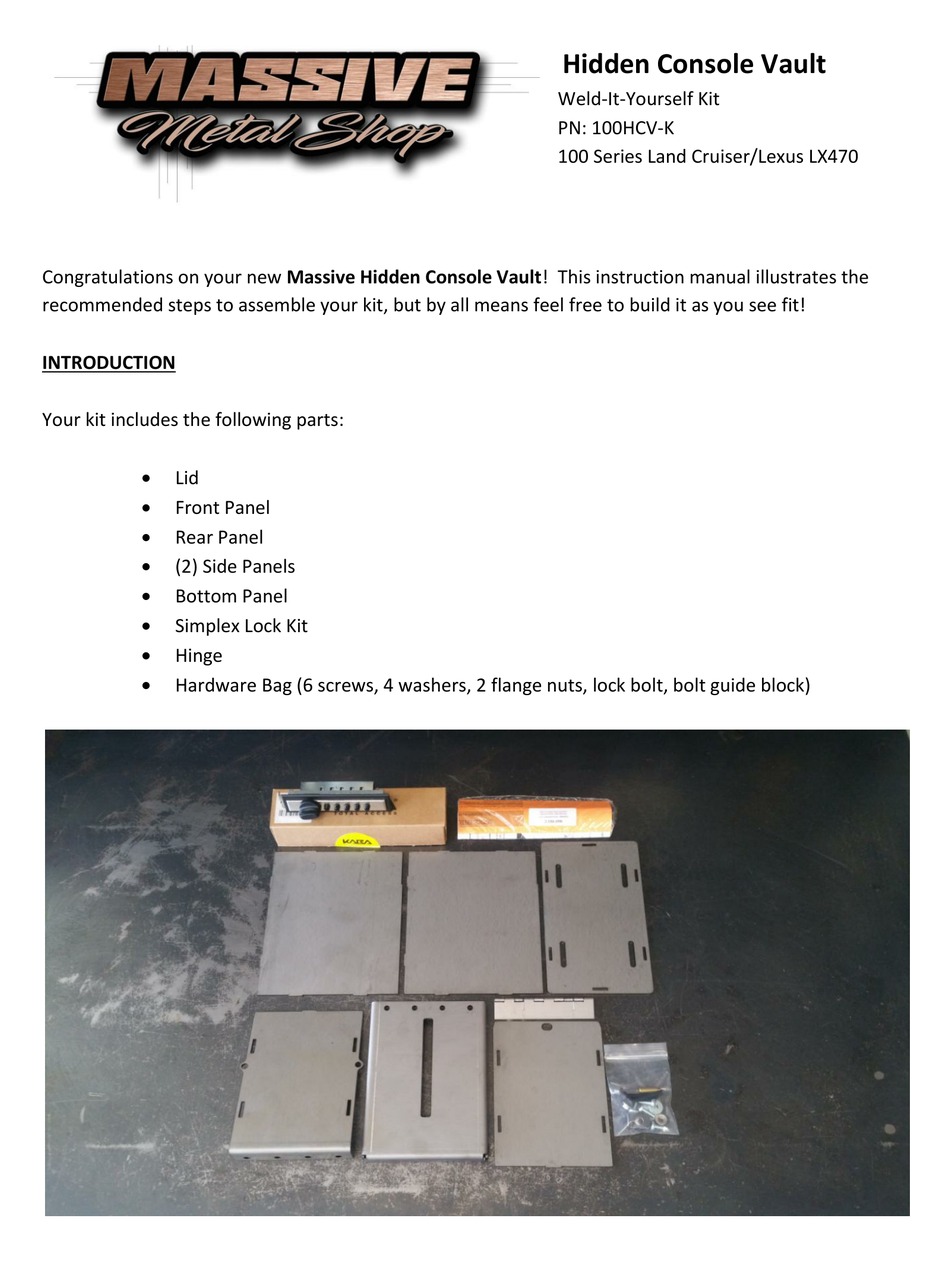

Congratulations on your new Massive Hidden Console Vault! This instruction manual illustrates the
recommended steps to assemble your kit, but by all means feel free to build it as you see fit!
INTRODUCTION
Your kit includes the following parts:
Lid
Front Panel
Rear Panel
(2) Side Panels
Bottom Panel
Simplex Lock Kit
Hinge
Hardware Bag (6 screws, 4 washers, 2 flange nuts, lock bolt, bolt guide block)
Hidden Console Vault
Weld-It-Yourself Kit
PN: 100HCV-K
100 Series Land Cruiser/Lexus LX470

Advertisement

loading
Need help?

Need help?

Do you have a question about the 100 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Massive 100 Series

  • Page 1 PN: 100HCV-K 100 Series Land Cruiser/Lexus LX470 Congratulations on your new Massive Hidden Console Vault! This instruction manual illustrates the recommended steps to assemble your kit, but by all means feel free to build it as you see fit! INTRODUCTION Your kit includes the following parts: ...
  • Page 2 Take note of the orientation of the side panels. There is a relief cut for the spring hinge (circled in red). VAULT ASSEMBLY 1. Degrease all surfaces before welding. 2. Weld the hinge on the proper end to prevent tampering/removal of the pin. ...
  • Page 3 3. Assemble the vault by sliding the panels into place using the slots and tabs. Use magnets or clamps to hold the vault together. All edges should fit flush with each other. Grind off any burrs if necessary to achieve good fitment.
  • Page 4 4. Slide the hinge into place in the relief cut, underneath the rear panel’s top flange, as pictured.
  • Page 5 5. Tack weld the panels together anywhere you prefer. A good place to place tack welds is inside the slots since these welds may be ground off later. 6. Seat the hinge flush against the rear panel flange. Grind off any burrs if necessary in order to achieve good fitment between the hinge barrel and flange.
  • Page 6 7. Weld all 14 slots on the front, rear, and bottom panels. 8. Weld the side panels between the tab locations as shown. Avoid welding near the holes in the rear panel where the rear cup holder mounting bolts pass through.
  • Page 7 9. Weld the front and rear panels on either side of the tab location as shown.
  • Page 8 10. Tack weld the flange nuts over the holes on the rear panel. Verify the mounting screws freely pass through the holes. These will be used to reattach the rear cup holder bracket. 11. Grind down all of the slot and plug welds flush.
  • Page 9 LID/LOCK ASSEMBLY Remove the four Phillips screws to disassemble the lock, being careful not to disturb the position of the internals (cam, knob, etc.). The buttons fall free so it’s best to disassemble the lock upside down. 2. With the lid upside down, place the part C into the lid’s slot from underneath, as pictured.
  • Page 10 3. Place part B onto the lid, as pictured. Then place the lock body (part A) on top of the assembly and screw together.
  • Page 11 4. Insert the lock’s bolt into its slotted arm and through the supplied bolt guide block. Turn the lock knob to fully extend the lock arm (see manufacturer’s instructions for lock operation). Position the bolt guide block approximately 1/16” away from the slotted arm. 5.
  • Page 12 6. Tack weld the bolt guide block to the lid. Remove the clamp and place the lid on the vault. Check for interference between the bolt guide block and the front panel. The lid should swing open and closed without any obstruction. Verify the lock is functioning properly, locking the lid in place and unlocking to allow it to open.
  • Page 13 8. Weld the lid corners. Grind down the corners to a smooth, even radius.
  • Page 14: Final Assembly

    FINAL ASSEMBLY 1. Place the lid onto the vault, centered and flush against the hinge barrel. Grind off any burrs if necessary in order to achieve good fitment between the barrel and lid edge. Plug weld the lid onto the hinge. Grind down the remaining plug welds.
  • Page 15 2. Reinstall the lock. 3. The lock chassis should sit flush against the lid. If there is a gap along the red line pictured below, there may be a slight interference between the lock chassis and the hinge leaf (circled in red).
  • Page 16 4. Verify proper lid and lock functionality. 5. Remove the lock, primer and paint it pink, and you’re all done!

This manual is also suitable for:

100hcv-k
