Summary of Contents for VIS-A-VIS Vitalinq 94W-15

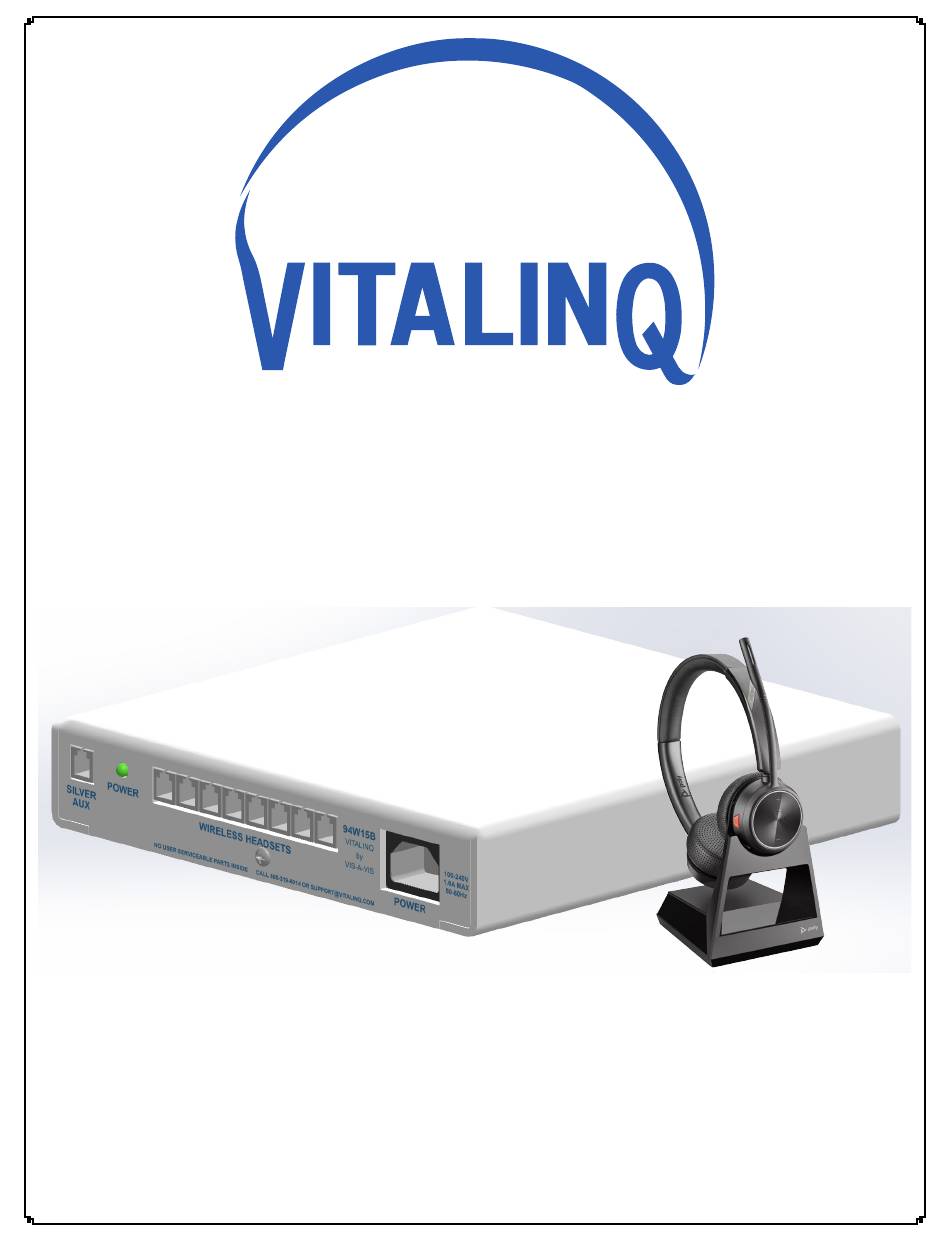

- Page 1 VIS-A-VIS, INC. Operations and Setup Manual Vitalinq™ Model 94W-15 Wireless Headset System 7936 Camino Circle Miami, FL 33143 support@vitalinq.com (800) 319-6014...
- Page 3 To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Excessive sound pressure from earphones and headphones can cause hearing loss. Please understand that Vis-A-Vis, Inc. does not accept liability for damage arising from abuse or misuse.
-
Page 4: Table Of Contents
Contents The Vitalinq 94W Wirless Headset System System Overview Vitalinq 94W Setup Vitalinq 94W Sound Adjustments Cleaning and Maintanance Using the 94W with a Vitalinq 94A-07 Intercom Optional Configurations and Notes Revised: 10/27/2022... -
Page 5: The Vitalinq 94W Wirless Headset System
• DECT™ adaptive power system automatically adjusts to save power • Quick and convenient charging of the headset The wireless headsets used by Vis-A-Vis and provided for use with the Vitalinq™ 94W console pro- vide DECT™ radio technology. Due to a dynamic transmission power adjustment, the DECT technol- ogy offers an increased transmission range, minimized radiation exposure, and good energy efficien- cy. -
Page 6: System Overview
System Overview Overview of the headset Poly Savi 7210 Headset Mute/unmute Volume up Power Volume down Link Manual connect Overview of the base station Auto answer (auto link - leave on) Subscribe/link LED Subscription/link button Charging LED Headset base listening volume Wideband/narrowband audio switch Headset microphone sensitivity/gain Power jack... -
Page 7: Vitalinq 94W Setup
Vitalinq 94W Setup The Vitalinq 94W wireless headset system is easy to set up. Just follow the steps below. If you have any questions, don’t hesitate to contact Vis-A-Vis for support at 800-319-6014 or by email at sup- port@vitalinq.com. Choose a location for the 94W console with a suitable room for placement of the console and all the headset base stations that will be connected. -
Page 8: Vitalinq 94W Sound Adjustments
Setup — continued 7. Connect the interface cable from the headset base station to the Vitalinq 94W console. 8. Connect the power cord from the headset base station to the 110 VAC outlet strip. 9. Place the headset on the base and allow it to charge for at least 20 minutes. 10. -
Page 9: Using The 94W With A Vitalinq 94A-07 Intercom
Using the 94W with a Vitalinq 94A-07 Intercom NOTE: Please notify Vis-A-Vis at the time of order that the 94W15 will be used connected to a 94A-07 system so that it can be internally configured correctly! System Setup The setup information below provides instructions for connecting the Vitalinq 94W-15 console to the Vitalinq 94A-07 Cath Lab Communication System console. -
Page 10: Optional Configurations And Notes
Data cables are provided to connect each base station to the Vitalinq 94W console. Please contact Vis-A-Vis for additional information regarding any non-standard configuration or to obtain custom cable lengths. Our phone number is 1-800-319-6014, or email us at support@vitalinq.com. Please visit us on the web at www.vitalinq.com. - Page 11 Page 7...
