Summary of Contents for ENcombi ECpv2

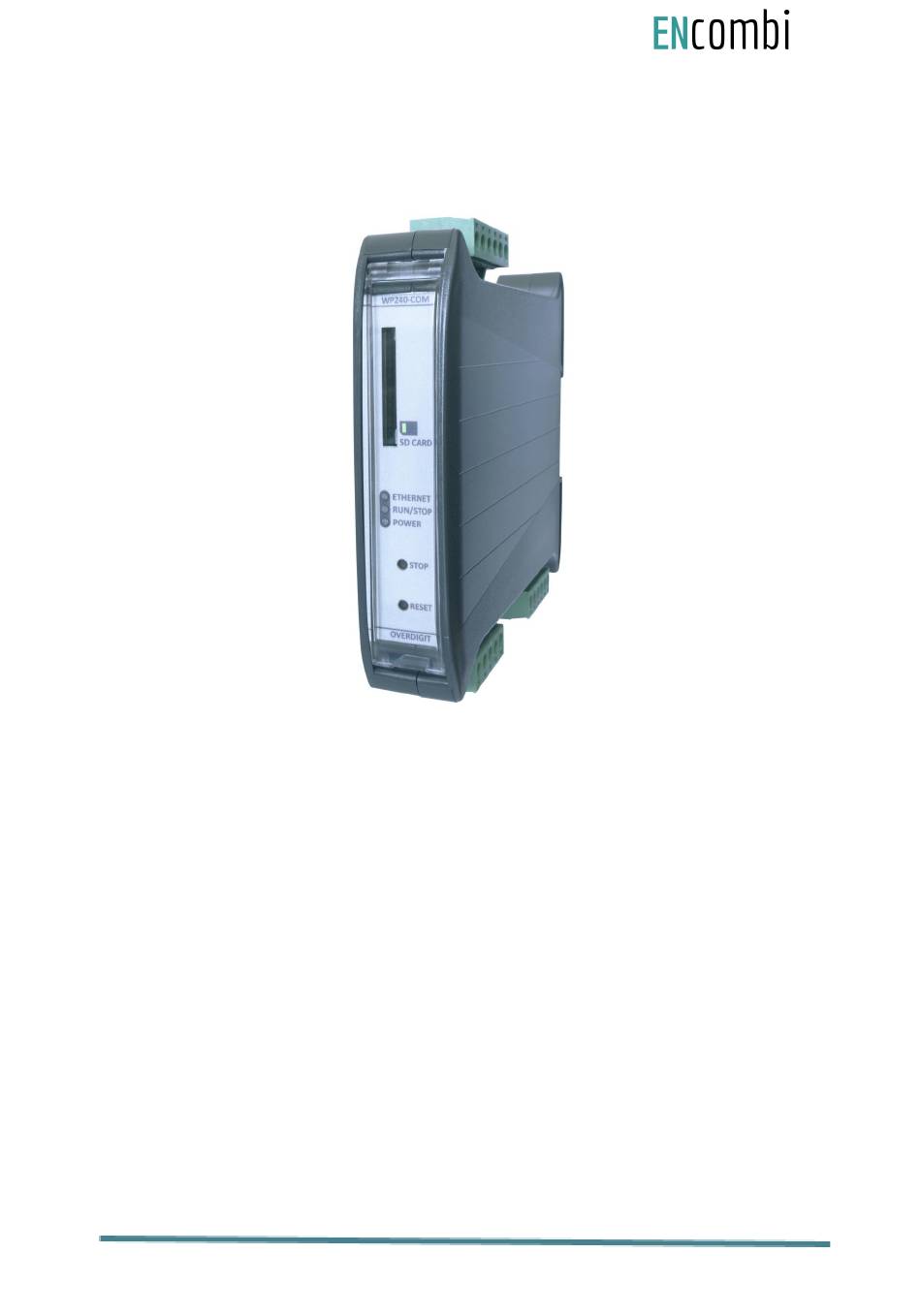

  • Page 1 ECpv2 Quick Start Guide...

  • Page 2: Table Of Contents

    Document change log Introduction ECweb Connecting to ECweb with Internet Explorer or Pale Moon browser on PC/laptop Connecting to ECweb using any other browser or mobile device Troubleshooting Connection to ECweb established...

  • Page 3: Document Change Log

    Document change log 2022-06-28 First version...

  • Page 4: Introduction

    Introduction All configuration and real time monitoring of the ECpv2 is done by connecting with a standard web browser to its built-in webserver (ECweb). The ECweb can run on any device featuring a web browser. Use for instance a panel PC as a local HMI on site. A laptop or portable device which will give you monitoring and control capabilities even from remote if connectivity to the ECpv2 is in place.

  • Page 5: Ecweb

    ECweb ECweb is the built-in webserver of the ECpv2. All configuration and real time monitoring of the ECpv2 is done via ECweb. Connection to ECweb is done with a standard web browser Using a laptop/PC and either the Internet Explorer browser or the Pale Moon browser running on Java is the best option for connecting to ECweb.

  • Page 7: Troubleshooting

    [2;249] excluding “101” as this is used by the ECpv2 itself. 3. Once the IP of your laptop is in place you must be able to ping the ECpv2. This can be done by opening a command prompt and writing the command “ping xxx.yyy.zzz.www”...

  • Page 8: Connection To Ecweb Established

    In the upper right corner you can see the current access login level. Find more information about this in the chapter revolving password scheme. In the lower left corner ECpv2 will display any info and warning messages it wants to communicate to the user. Some messages will clear themselves automatically. Others demand user action to be acknowledged first.
  • Page 9 ECpv2 to follow. 3. “Monitoring” provides a high level overview of the installation as well as detailed information about each individual inverter and power meter. 4. “Control” gives access to set up of ECpc controller related parameters such as IP configuration, Internal clock handling etc.
