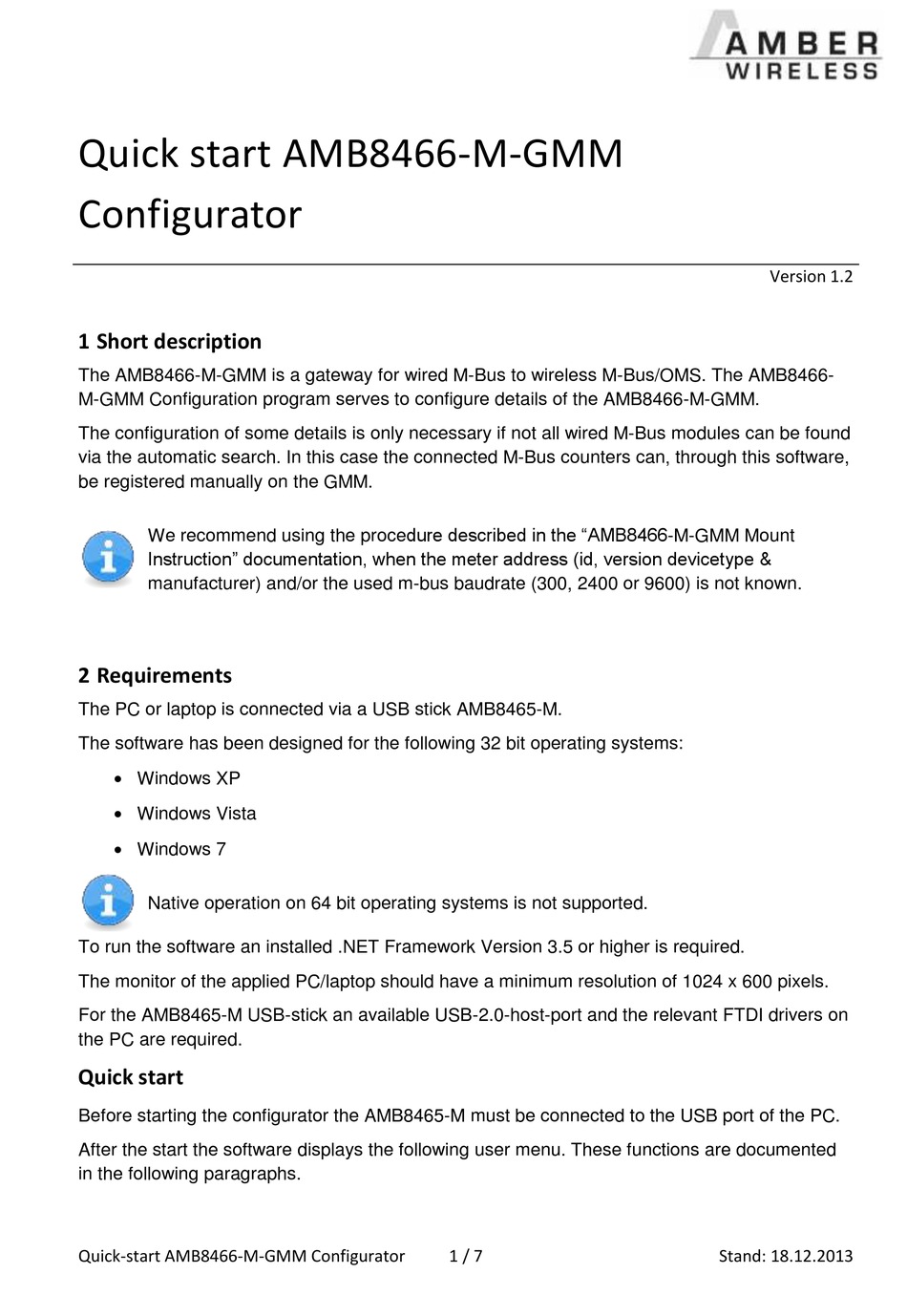

Quick start AMB8466-M-GMM
Configurator
1 Short description
The AMB8466-M-GMM is a gateway for wired M-Bus to wireless M-Bus/OMS. The AMB8466-
M-GMM Configuration program serves to configure details of the AMB8466-M-GMM.
The configuration of some details is only necessary if not all wired M-Bus modules can be found
via the automatic search. In this case the connected M-Bus counters can, through this software,
be registered manually on the GMM.
We recommend using the procedure described in the "AMB8466-M-GMM Mount
Instruction" documentation, when the meter address (id, version devicetype &
manufacturer) and/or the used m-bus baudrate (300, 2400 or 9600) is not known.
2 Requirements
The PC or laptop is connected via a USB stick AMB8465-M.
The software has been designed for the following 32 bit operating systems:
Windows XP
Windows Vista
Windows 7
Native operation on 64 bit operating systems is not supported.
To run the software an installed .NET Framework Version 3.5 or higher is required.
The monitor of the applied PC/laptop should have a minimum resolution of 1024 x 600 pixels.
For the AMB8465-M USB-stick an available USB-2.0-host-port and the relevant FTDI drivers on
the PC are required.
Quick start
Before starting the configurator the AMB8465-M must be connected to the USB port of the PC.
After the start the software displays the following user menu. These functions are documented
in the following paragraphs.
Quick-start AMB8466-M-GMM Configurator
1 / 7
Version 1.2
Stand: 18.12.2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Amber Wireless AMB8466-M-GMM
- Page 1 Version 1.2 1 Short description The AMB8466-M-GMM is a gateway for wired M-Bus to wireless M-Bus/OMS. The AMB8466- M-GMM Configuration program serves to configure details of the AMB8466-M-GMM. The configuration of some details is only necessary if not all wired M-Bus modules can be found via the automatic search.
- Page 2 After opening the COM-port the following buttons are activated: Read Configuration Write Configuration Firmware Update Close (COM-port) Quick-start AMB8466-M-GMM Configurator 2 / 7 Stand: 18.12.2013...
- Page 3 2.4 Read configuration To configure an AMB8466-M-GMM the current configuration has to be read out first. This is performed by the “Read Configuration” button. After activating this button the hint “Please press OK and then activate the config mode of the GMM” appears. Confirm with the “OK” button and establish the configuration mode of the AMB8466-M-GMM within the receiving window.
- Page 4 Nom), the activation of the synchronous transmit mode (TX Sync Enable) and two buttons for the selection of the wM-Bus mode S or T. This data is used exclusively for the radio link. Figure 4: User-settings and enhanced user-settings Quick-start AMB8466-M-GMM Configurator 4 / 7 Stand: 18.12.2013...
- Page 5 On the contrary the enhanced user-settings are used for the configuration of the wired M-Bus devices. After a read out the devices registered on the AMB8466-M-GMM are displayed in this window. In the above example there are two meters which are assigned to tabs “#00” and “#01”.
- Page 6 After the write procedure has been completed its success should be verified by a further read procedure. Figure 5: Write configuration After configuration the rotary switch position 0/0 has to be used for normal operating mode. Quick-start AMB8466-M-GMM Configurator 6 / 7 Stand: 18.12.2013...
- Page 7 After a firmware update the device has to be re-configured. Subsequently the Step “Read Configuration” as described in chapter 2 has to be conducted. To retain the configuration of the AMB8466-M-GMM the following Steps have to be performed: 1.
