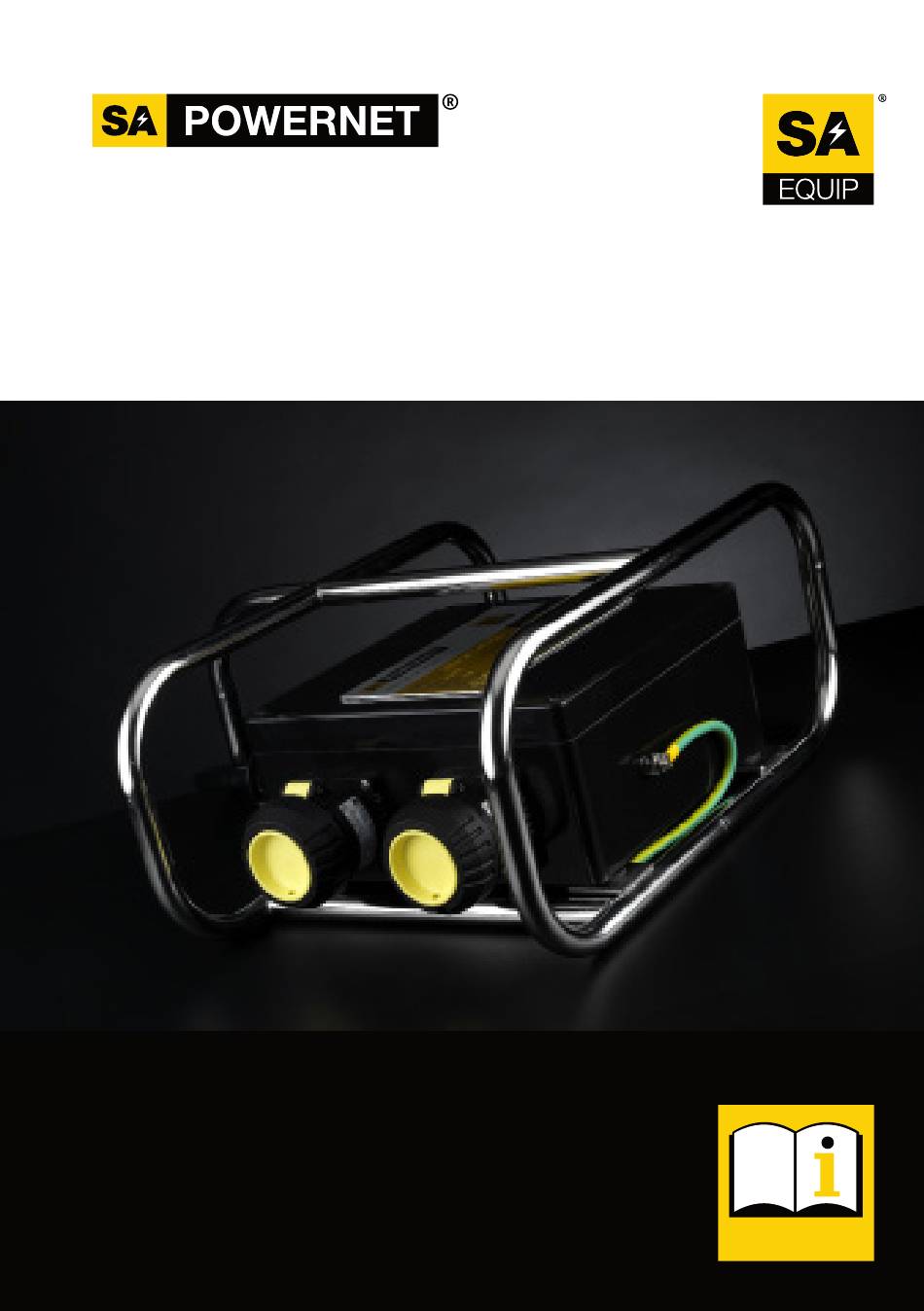

SA POWERNET EX SPLITTER UNIT
ATEX, UKCA EX AND IECEX* APPROVED FOR ZONE 1 & 2 (GAS),
21 & 22 (DUST)*
*Some variations are not IECEx approved and/or do not have dust certification - see product
type label
USER MANUAL
IT IS MANDATORY TO READ THIS USER MANUAL
TO ENSURE THAT THIS EQUIPMENT IS USED
CORRECTLY AND SAFELY.
I S S U E 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SA POWERNET PNSB12 Series
Summary of Contents for SA POWERNET PNSB12 Series
- Page 1 SA POWERNET EX SPLITTER UNIT ATEX, UKCA EX AND IECEX* APPROVED FOR ZONE 1 & 2 (GAS), 21 & 22 (DUST)* *Some variations are not IECEx approved and/or do not have dust certification - see product type label USER MANUAL...
-
Page 2: Product Information
** = cable length WARRANTY The SA POWERNET EX Splitter Unit has a product warranty of one year from the date of delivery. The warranty does not cover cables. The warranty covers only materials and manufacturing defects. User abuse and/or failure to comply with these instructions will invalidate the warranty and may also invalidate the safety certification. -
Page 3: Before Use
Misuse of electrical equipment can result in injury or death. Only connect the SA LUMIN EX Splitter Unit to a properly installed power supply system. Check the supply is providing the correct voltage and current for the Splitter Unit, this is clearly displayed on the type label. -
Page 4: During Use
No repairs to individual components used are permitted. No user modifications are permitted and only original spares from SA Equip must be used. The use of any other parts will invalidate any warranty and could compromise the safety and functionality of the equipment. - Page 5 CERTIFICATION The SA POWERNET EX Splitter Unit is ATEX and IECEX certified as portable equipment for use in Zone 1 and 2 (Gas) and Zone 21 and 22 (Dust) areas. Each transformer has a marking plate bearing the specific product information and certification details as follows:...
-
Page 6: Ingress Protection
OPERATING TEMPERATURE Ta -**°C to +**°C The chart below shows the minimum and maximum ambient temperatures that the SA POWERNET EX Splitter Unit are certified for use in. This varies according to the plug and sockets as follows: ATX all voltages Ta -40°C to +55°C... -
Page 7: Specification
SPECIFICATION Specification of the product range is as follows: PRODUCT CODE STRUCTURE PNSB###/**-4EX/*** ### = Voltage ** = Cable length in metres *** = Plug & Socket Type ATX = ATX CEA = CEAG STA = Stahl Voltages 12VAC, 24VAC, 42VAC, 110VAC, 230VAC Maximum Current Draw Cable Options HOFR Braided Cable... - Page 8 10 Clifton View F +44 (0)333 240 6555 East Mains Industrial Estate info@saequip.com Broxburn EH52 5NE United Kingdom saequip.com English is original language version Copyright © 2021 SA Equip LLP Information and specification is subject to change without notice. Issue 7 02/2021.
