Toa MT-S0601 Instruction Manual

MATCHING TRANSFORMER
Thank you for purchasing TOA's Matching Transformer.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read
all the instructions in this section for correct and
safe operation.
• Be sure to follow all the precautionary instructions
in this section, which contain important warnings
and/or cautions regarding safety.
• After reading, keep this manual handy for future
reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below
are used in this manual to prevent bodily injury and
property damage which could result from mishandling.
Before operating your product, read this manual first
and understand the safety symbols and messages
so you are thoroughly aware of the potential safety
hazards.
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
• Be sure to use this matching transformer only for the specified
speakers. If any other speaker is used, the transformer
could detach and fall, resulting in personal injuries. Also, the
transformer could generate heat, causing a fire.
CAUTION
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
• When installing the matching transformer, consult the
shop from where it was purchased because installation
requires specialized skills and professional experience.
If the transformer should fall, it could result in personal
injuries.
• Avoid using an 83 Ω tap when the speaker line of high
impedance is a 100 V line. Otherwise, heat builds up in
the matching transformer, possibly causing a fire.
INSTRUCTION MANUAL

2. GENERAL DESCRIPTION

The MT-S0601 matching transformer is designed to be
installed in the speaker and used
impedance speaker into the high-impedance version.
3. INSTALLING THE MATCHING
TRANSFORMER

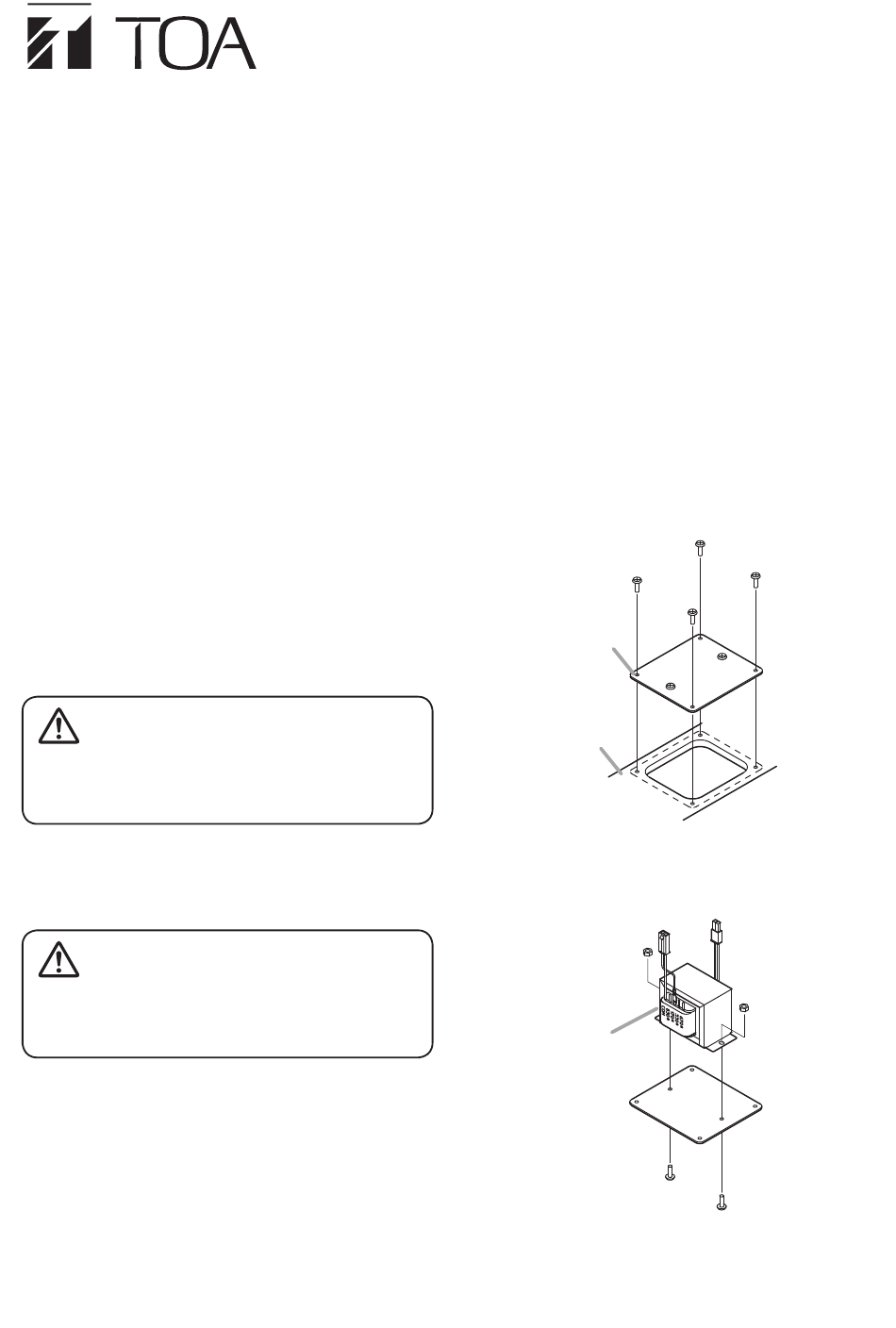

Step 1. Remove four screws holding the blank panel to
the speaker and remove the panel.
Blank Panel
Speaker
Step 2. Mount the matching transformer to the back side
of the blank panel.
Use screws and nuts attached to the blank panel.
MT-S0601
MT-S0601
to convert the low-
