LRA-DCRXA + LRA-PBTXA Wireless Chime Receiver with Strobe Manual

THINGS TO KNOW PRIOR TO USE

• Each LRA-DCRXA (receiver) can pair with a total of four (4) wireless transmitters
• Once four (4) transmitters have been paired to a receiver, you cannot add an additional
transmitter unless you delete a transmitter from the receiver
• There is no limit to the number of receivers you can pair with a transmitter
• The receiver is powered by 3 x c'-sized alkaline batteries or plug-in transformer (not included)
PRODUCT FEATURES & SPECIFICATIONS
• Wireless range from transmitter to receiver is up to 1,000 ft.(line of sight)
• Each receiver can pair with a total of two (2) transmitters
• Receiver has three (3) operating modes; a) sound only, b) strobe only & c) sound & strobe
• Assign one (1) of eighteen (18) available melodies to each transmitter
• Strobe has two flashing patterns; a) slow & b) fast
• Operating frequency: 868MHz
• Operating temperature: 32F to 104F
• • Product dimensions: 2.5'' L x 1.2'' W x 4.72'' H
• Product weight: .45 lbs
Phone: (904) 245-1184
email: info@safeguardsupply.com
2260 Moon Station Ct. NW #110 Kennesaw GA 30144

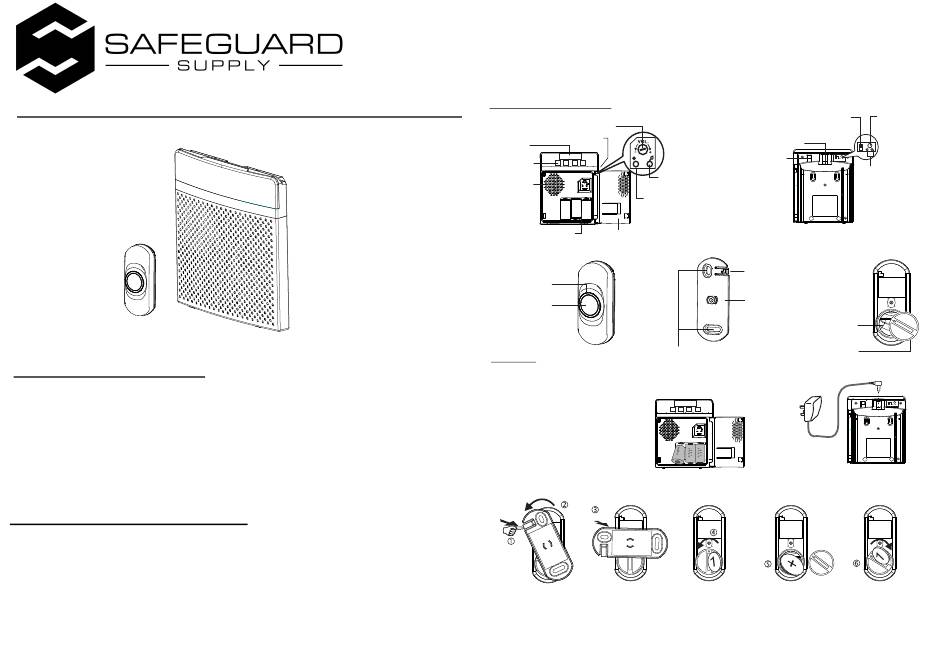

PARTS & FUNCTION
LRA-DCRXA Receiver
Volume control
Function Switch
Flasher
Zone LED
Speaker
Zone selector
button
Battery compartment
Battery cover
LRA-PBTXA Push Button
Indicator
Push button

POWER

Mounting holes
LRA-DCRXA Receiver
1. Flip to open the battery cover
2. insert 3 'C' size batteries
3. Close the battery cove
LRA-PBTXA Push Button
1. Use finger to unlock the lock lever
2. Rotate the mounting bracket 90 degrees and lift bracket from front of push button unit.
3. Remove the mounting bracket from the unit.
4. Rotate the Battery cover using a coin.
5. Insert a CR2032 battery to battery compartment provided.
6. Close the battery cover using a coin.
Vibration Pad
On/Off
DC Jack
Cancel
On
Off 12V
Pad Pad Rea
On dy
Melody
selector button
Lock lever
Mounting bracket
Battery compartment
Battery Cover
12V DC
400mA
3 x 'C' size
Vibration out
Indicator
On
Off 12V
Pad Pad Rea
On dy
