Lippert Furrion FDHS24D3A Quick Start Manual

110V SMART RV TV
MODEL: FDHS24D3A/ FDHS321DA/ FDHS39T5A/ FDFS43T5A/
FDUS50F2A/FDUS55F9A
LIPPERT NO.: 2022111214/ 2022111215/ 2022111216/ 2022111217/
2022111218
QUICK START GUIDE

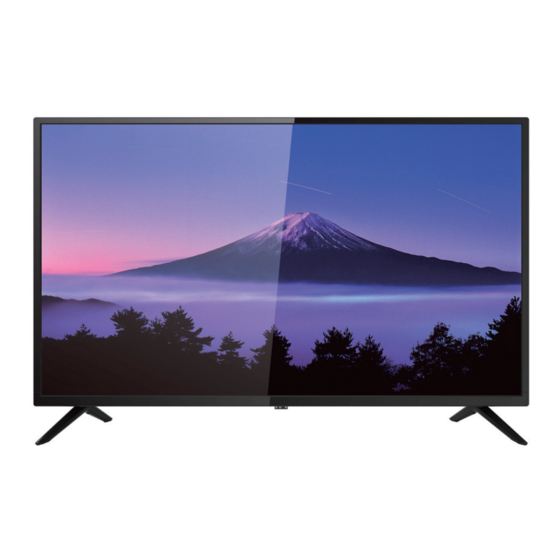

* Product picture for reference only
CCD-0006085 | REV DATE: 10.20.2022
This quick start guide will help you install and use the device properly. For further support and to download the
complete user manual please visit www.furrion.com/support.
WHAT'S IN THE BOX
Wall mount screw x 4
CONNECT
WARNING: Do not connect the power source before making connections. Open the cable access door to
connect the cables.
NOTE: All external devices and cables shown in the diagram are for reference only and not included in the
package.
RJ45
IN
TV Connect Guide
TV stands screw x 4
32" (BB4*18mm)x 4
39" (BB4*16mm)x 4
43"
50" (BM4*18mm)x 4
55"
IN
VIDEO (Yellow)
AUDIO
L (Red)
R (White)
OR
OR
