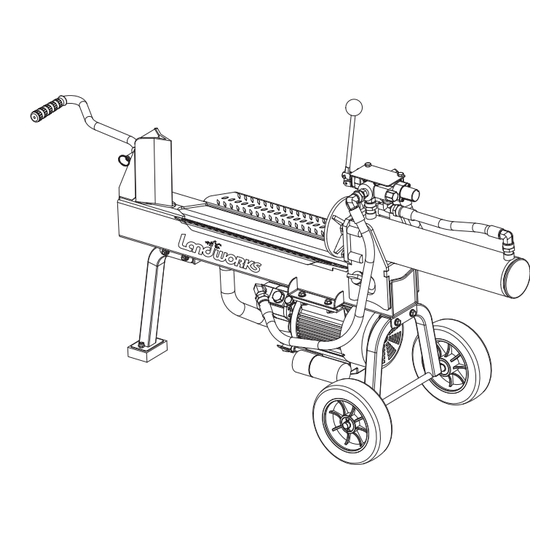

Electric Powered Hydraulic Log Splitter
Operator's Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules
and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required. Keep
these instructions to assist in future servicing.
REV 1.2
Advertisement
Table of Contents
Summary of Contents for Landworks GUO079
- Page 1 Electric Powered Hydraulic Log Splitter Operator’s Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
-
Page 2: Table Of Contents
INDEX TECHNICAL SPECIFICATIONS ---------------------------------------------------------------------------------------------------------- 1 SAFETY DEFINITIONS ---------------------------------------------------------------------------------------------------------------------- 2 SAFETY SYMBOLS ----------------------------------------------------------------------------------------------------------------------- 2 SAFETY GUIDELINES ------------------------------------------------------------------------------------------------------------------- 4 ELECTRICAL SAFETY --------------------------------------------------------------------------------------------------------------------- CONTROLS AND FEATURES ----------------------------------------------------------------------------------------------------------- 5 PARTS LIST ----------------------------------------------------------------------------------------------------------------------------------- 6 EXPANDED DRAWINGS ------------------------------------------------------------------------------------------------------------------ 9 MAINTENANCE AND STORAGE ------------------------------------------------------------------------------------------------------ 11 TROUBLE SHOOTING -------------------------------------------------------------------------------------------------------------------- 11 TECHNICAL SPECIFICATIONS Maximum Exerted Splitting Force... -
Page 3: Safety Definitions
SAFETY DEFINITIONS The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and review. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures and care while using the product. - Page 4 SYMBOL MANING Always keep feet away from the wedge and the ram. Moving parts can crush or cut. Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface. Open Flame alert. The power cord is extremely flammable. Keep the splitter away from open flames, sparks, pilot lights, heat, and other potential ignition sources.
-
Page 5: Safety Guidelines
DANGER indicates a hazardous situation which, if not avoided,will result in serious injury and possibly death. WARNING indicates a potential hazardous situation which, if not avoided, could result in serious injury or death. CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE indicates information considered important, but not hazard-related (e.g., messages relating to property damaged). -
Page 6: Electrical Safety
ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. -
Page 7: Parts List
PARTS LIST Control Valve Supporting Bar Handle Bottom Plate Wheels Primary Beam Kit Eletromotor Oil Hose Hose Clamp R Pin Oil Dipstick Hydraulic Cylidner Handle Spring Washer M6 Nut Hexagon Flange Hexagon Flange Hexagon Flange Outer hexagon bolt Bolt M8x50mm Bolt M8x25mm Bolt M6x35mm M10x30mm... - Page 8 ASSEMBLY Recommended tools STEP #1 Recommended tools: Needle nose pliers STEP #2 Recommended tools: Ratchet Wrench (13mm) M8 Nut, Hexagon Flange Bolt M8x50mm STEP #3 Recommended tools: Ratchet Wrench (13mm) M8 Nut, Hexagon Flange Bolt M8x50mm STEP #4 Recommended tools: Ratchet Wrench (16mm) Spring Washer φ8 Hexagon Flange Bolt M8x25mm Tightening torque:45-60 N.m...
- Page 9 STEP #5 Recommended tools: Ratched wrench (10mm) M6 Nut, Hexagon Flange Bolt M6x35mm, Recommended tools: Slotted screwdriver STEP #6 STEP #7 Recommended tools: Wrench (27mm 22mm) Hose connector recommend tightening torque:80 N.m Recommended tools: Wrench (27mm 22mm) STEP #8 Hose connector recommend tightening torque:80 N.m STEP #9 Add hydraulic fluid before first Use.
-
Page 10: Expanded Drawings
EXPLODED DRAWINGS (19) Part No. Description Q’ty Part No. Description Q’ty R Pin Primary Beam Kit 8 " Wheel Hexagon Flange Bolt M6x35mm Bottom Plate Handle Flange Nut M8 Flange Nut M6 Hexagon Flange Bolt M8x50mm Supporting Bar Hydraulic Cylinder Kit Filter Oil Dipstick Elastic Ring... - Page 11 OPERATION 1. Read the Operator’s Manual completely before attempting to use this log splitter. 2. Do not allow anyone to operate your log splitter who has not read the Operator’s Manual or has not been instructed on the safe use of the log splitter. 3.
-
Page 12: Maintenance And Storage
MAINTENANCE AND STORAGE 1. Always shut off the power source while repairing or adjusting the splitter except as recommended by the manufacturer. 2. Clear debris from movable parts, but only when the power source is shut off. 3. Check to be sure all nuts and bolts are tight to assure the equipment is in safe working condition prior to each usage, and periodically during usage.
