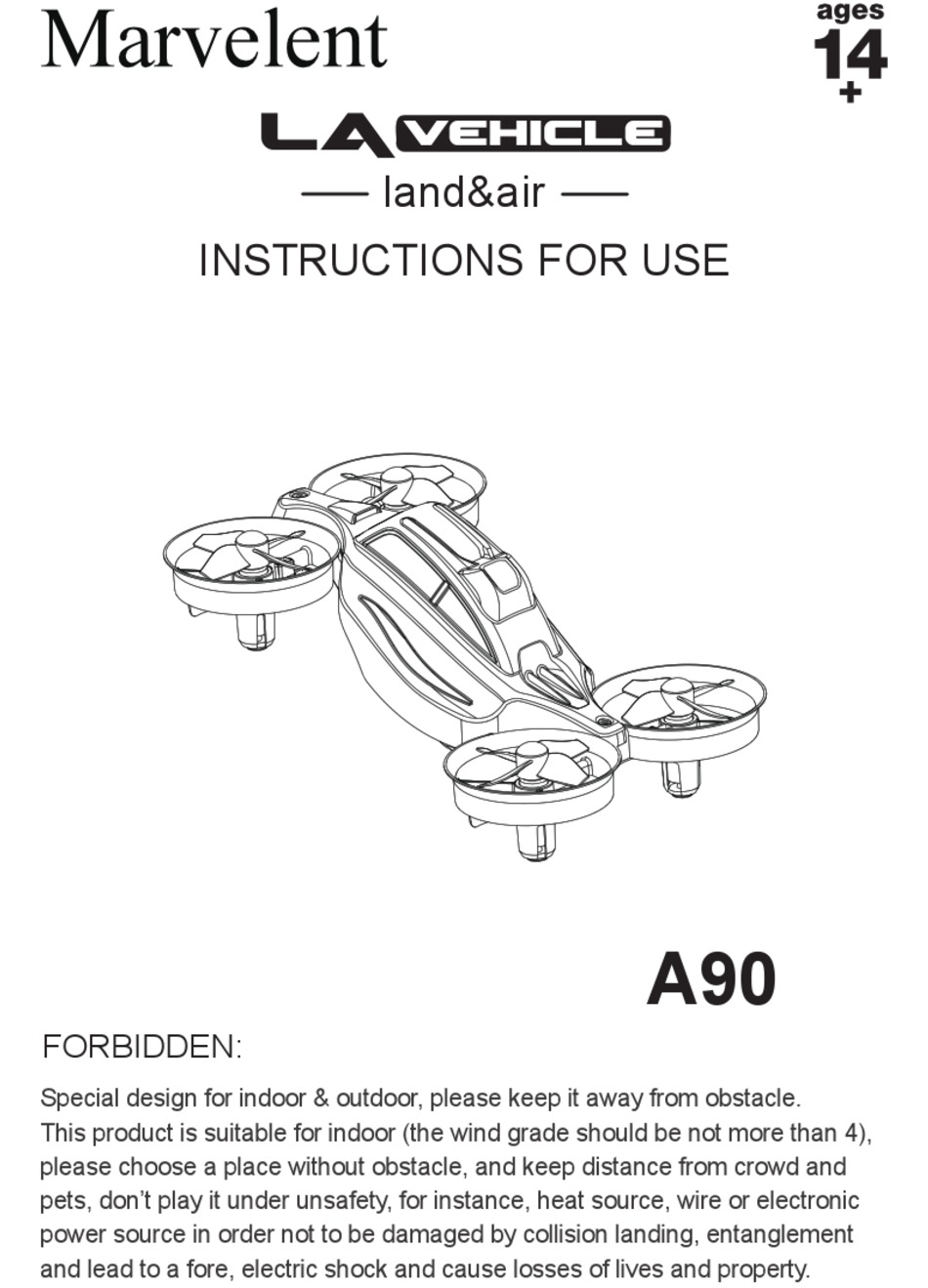

INSTRUCTIONS FOR USE

A90

FORBIDDEN:

Special design for indoor & outdoor, please keep it away from obstacle.

This product is suitable for indoor (the wind grade should be not more than 4),

please choose a place without obstacle, and keep distance from crowd and

pets, don't play it under unsafety, for instance, heat source, wire or electronic

power source in order not to be damaged by collision landing, entanglement

and lead to a fore, electric shock and cause losses of lives and property.

Table of Contents

Need help?

Do you have a question about the LA VEHICLE land&air A90 and is the answer not in the manual?

Questions and answers

Summary of Contents for Marvelent LA VEHICLE land&air A90

Page 1 Marvelent vehicle land & air INSTRUCTIONS FOR USE FORBIDDEN: Special design for indoor & outdoor, please keep it away from obstacle. This product is suitable for indoor (the wind grade should be not more than 4), please choose a place without obstacle, and keep distance from crowd and pets, don’t play it under unsafety, for instance, heat source, wire or electronic...
Page 2: Table Of Contents
CONTENT 1.0 Disclaimer & Warnings 2.0 Safety Guidelines 3.0 Packing list 4.0 Drone’s Details 5.0 Transmitter Functions 6.0 Joystick Mode 7.0 Installation 8.0 Charging 9.0 Operation Guide 9.1 Pairing 9.2 Calibrating the Gyro 9.3 Taking-Off / Landing Method 10.0 Function Details 10.1 Emergency Stop 10.2 Trimming 10.3 Headless Mode...
Page 3: Disclaimer & Warnings
1.0 DISCLAIMER & WARNINGS 1. Please read this disclaimer, warnings and safety guidelines carefully before using our product. This product is not recommended for people under the age of 14. By using this product, you hereby agree to this disclaimer and signify that you have read it fully.
Page 4: Safety Guidelines
2.0 SAFETY GUIDELINES 2.1 Check Before Use (1). This product is not a toy, but a high precision drone that integrates various electronic stability and control mechanisms. Please be sure to set up this drone carefully and correctly to ensure safe, accident-free operation. (2).
Page 5 2.3 Use of Battery (1) Please ensure the batteries are fitted in the correct orientation as shown in the instruction manual. (2) Avoid short circuits by fitting the batteries incorrectly, and do not crush the batteries as this may cause the risk of an explosion. (3) Do not mix new and old batteries as this can lead to a poor performance of the product.
Page 6: Packing List
2.4 Maintenance 1. Clean the product after each use with a clean, soft cloth. 2. Avoid prolonged exposure to direct sunlight and avoid the buildup of heat on the drone or batteries. 3. This device is not waterproof and must not be submerged or subjected to water under any circumstance.
Page 7: Drone's Details
4.0 DRONE’S DETAILS Propeller A Propeller B Propeller B Propeller A It is crucial that all the propellers are installed in the correct position (Pay attention to the letter A or B printed underneath each propeller). WARNING Power Switch...
Page 8: Transmitter Functions
5.0 TRANSMITTER FUNCTIONS Indicator Light Speed Switch Flip Trim Headless Left Joystick Right Joystick LED ON/OFF One Key Take-off One Key Land Trim Power Switch (Short Press) Emergency Stop (Long Press) Calibrating the Gyro (Short Press) 6.0 JOYSTICK MODE Left Joystick Right Joystick Forward Ascend...
Page 9: Installation
7.0 INSTALLATION 7.1 Drone Battery Installation: Push down to open the battery compartment, align the battery plug with the drone plug and connect them. Pay attention to the positive and negative directions of the battery plug when connecting the battery. The plug in the wrong direction cannot be WARNING connected.
Page 10 7.2 Propellers HEAD Installation: As shown above, connect each propeller to its corresponding motor shaft, either position "A/B", then lock the propeller to the motor shaft. To remove the blades: insert the blade driver diagonally into the bottom of the blade with downward pressure.
Page 11: Charging
7.3 Transmitter Battery Battery Cover 3 x AAA batteries (not included) Always use alkaline batteries, never mix old and new batteries. WARNING 1. Unscrew the battery cover, press and slide the battery cover out, and insert 3 x AAA batteries(not included), make sure to insert them following the correct polarity as shown.
Page 12: Operation Guide
1. Plug the USB charging cable into a USB charging port on the computer, power bank or USB adapter (5V @ 0.5 to 2.0A ). 2. Connect the wire of battery with USB charging cable. 3. Charging time: about 60-70 minutes. 4.
Page 13: Calibrating The Gyro
HEAD (3). Place the drone on a flat and level surface with the head forward and the tail facing towards the operator. (4). Slowly push the left joystick of the transmitter up to the top and transmitter will beep once and then pull down to the bottom and transmitter will beep once again.
Page 14: Taking-Off / Landing Method
9.3 Taking-Off / Landing Method 1.2m Short Press One Key Take-Off One Key Land Method 1: Short press the one key take-off/land button “ ”, the drone will automatically take off and hover at an altitude about 1.2 meter. Short press the one key take-off/land button “ ”...
Page 15: Trimming
10.2 Trimming F/B Sideward Fly Trim 1- Forward trim 2- Backward trim 3- Left trim 4- Right trim If the drone sways in an unprompted direction, use the trim buttons to correct the flight: L/R Sideward Fly Trim If the drone drifts left, short press down the right joystick while pushing the direction joystick right to balance the drone;...
Page 16: Headless Mode
10.3 Headless Mode Short press the headless button Short press the headless button , the remote control will beep once, and at the same time all the LED lights of the drone body will flash twice simultaneously then break for 0.5 seconds, then flash twice and then break for 0.5 seconds, thus the drone has entered headless flight mode.Short press down the left joystick again to exit headless mode.
Page 17: Speed Switch
Under Headless Mode, the forward direction is the direction that the head of drone faces when the drone takes off. In order to make sure the pilot can tell drone's direction, we recommend that pilots to stay in the same orientation as the drone head faces when the drone takes off.
Page 18: 360 Flips
10.5 360 Flips Short Press Perform 360 flips by pressing the "flip" button and immediately operate the right joystick in the desired direction. 10 Feet When you get familiar with all the functions of the drone, you can try this amazing flip mode.
Page 19: Led On/Off
10.6 LED ON/OFF Long Press Press the LED button to turn off/on the LED lights of the drone 10.7 Race On Land Mode Forward 1. When the drone is flying in the air, after landing the drone to the level ground, push the right joystick forward, and the drone will drive forward.
Page 20 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 21 1. ALL MARVELENT PRODUCT CARRIES A 100% SATISFACTION GUARANTEE. 2. STAY UP-TO-DATE ON WHAT’S NEW FROM MARVELENT. 3. ALL THE PRODUCTS COVERED BY UNCONDITIONAL LIFETIME WARRANTY WHEN YOU COMPLETE THE REGISTRATION PROCESS.
