Portascope SV Series Manual

Handheld videoscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Handheld videoscope
SV series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV Series and is the answer not in the manual?

Questions and answers

Related Manuals for Portascope SV Series

Summary of Contents for Portascope SV Series

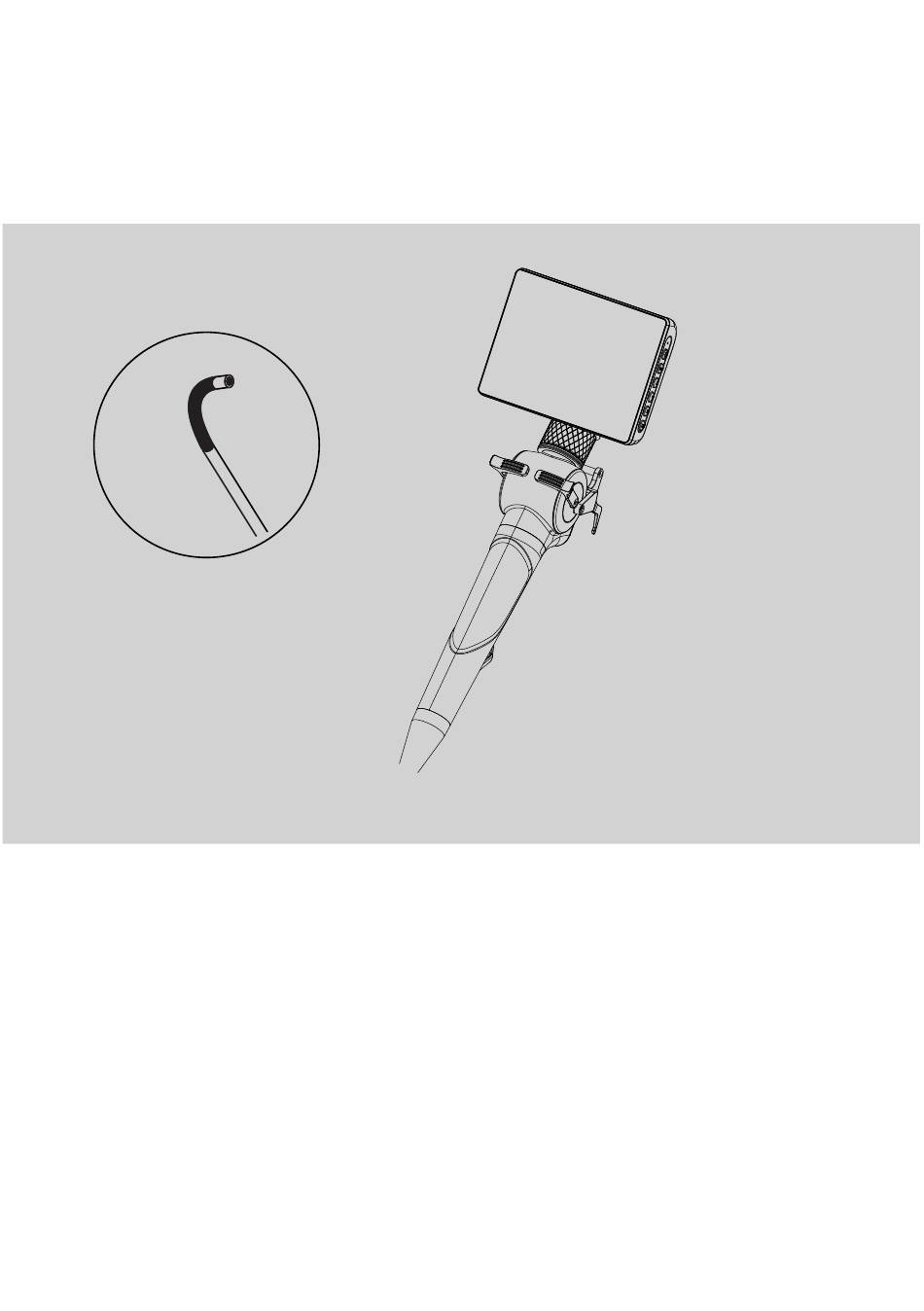

  • Page 1 Handheld videoscope SV series...

  • Page 2: Safety Recommendations

    Safety Recommendations In order to avoid harm to you and others or affect the service life of this equipment, please read and observe the following "safety precautions” before use. The safety precautions are divided into "warning" and "danger" for explanation. WARNING Incorrect operation may cause damage to the equipment Do not stretch or twist the insertion tube of the device with great strength,...

  • Page 3: Parts Function

    Parts function Monitor Type-C for charging Headset jack MINI HDMI output Micro SD slot Lock nut Side view Reset Power on /off MENU Upward Downward OK /Dimmer OK key can control intensity of light. NOTE For key MENU, , OK and ESC, in most cases, it is more convenient to realize the same function through the operation of the touch screen.

  • Page 4: Quick Setup

    Quick Setup Connecting monitor and probe unit Align and insert the guide posts into holes at the handle end, then screw in the lock nut to connect the monitor unit securely. Unscrew and remove the nut can separate the monitor from the handle unit.
  • Page 5 Ready for use Please insert the Micro SD card into the card slot, press power button, wait around 3 secs, real time image appears in screen, for the fist time, please set the time and date, language, etc. Hide TOOLBAR Touch the hide icon, two columns of toolbar appear at the two sides of screen, touch the icon again, the tool bars will be hidden.
  • Page 6 Display style this function only applicable to sensor S20. NOTE Three types are optional: rectangular, octagonal and circular. Snap/ Video recording Photos can also be taken by pressing button on the probe unit. NOTE Short press for take picture, long press for video recording Play back Enter Display,there are three folders, store pictures and videos, Screen -capture for graffiti.
  • Page 7 Ruler According to the reference object, the size of the target in front of the lens can be estimated. Freeze The left is frozen image, the live image in the right for comparison. ZOOM The image can be zoom in or out. Negative film The image shows in a complementary color as the right picture.
  • Page 8 & Rotation Mirror The image can be clockwise rotation at 90, 180, 270 degree or mirror showed. EV Adjustment Adjusting the EV value can make the lens adapt to different light and dark environments. High EV value may cause overexposure of the bright workpiece surface, and a low EV value can make the details more clearly presented.
  • Page 9 Image set The following items can be set in image settings: White balance Display style Negative Sharp & EV Set Image Adjust Gain Setting White balance A c c o r d i n g t o d i f f e r e n t p r o b e s a n d i l l u m i n a t i o n m o d e s t o s e l e c t t h e a p p r o p r i a t e w h i t e b a l a n c e o p t i o n .
  • Page 10 Image Adjust Brightness, contrast and saturation value can be set through + -, after setting, press Exit key, and + or - to confirm to exit. If you choose the Default, press + or - to confirm and then press Exit, and +or - to complete the setting.
  • Page 11 System The following items can be set under System settings. Language HDMI Out System WIFI Date Format Language:you can select the language used by the system. HDMI:HDMI cable can connect to external screen todisplay, according to external screen to select appropriate parameters.

  • Page 12: Storage And Maintenance

    Date :This item is used to set the date and time of the system. It is recommended to set the local time for the first time use. Format:this item can format the SD card, please back up your files before formatting.

  • Page 13: System Parameters

    Q & A Q:What should I do if the device cannot be turned on? A: Connect the power adapter to the charging port of the display for charging. Q: What should I do if there is no picture or light on the screen? Q: What should I do if the image is too dark or too bright? A: The BRT button at behind of control unit to adjust the brightness value.
