Summary of Contents for NIKOLA T. LAB ICOPY-X

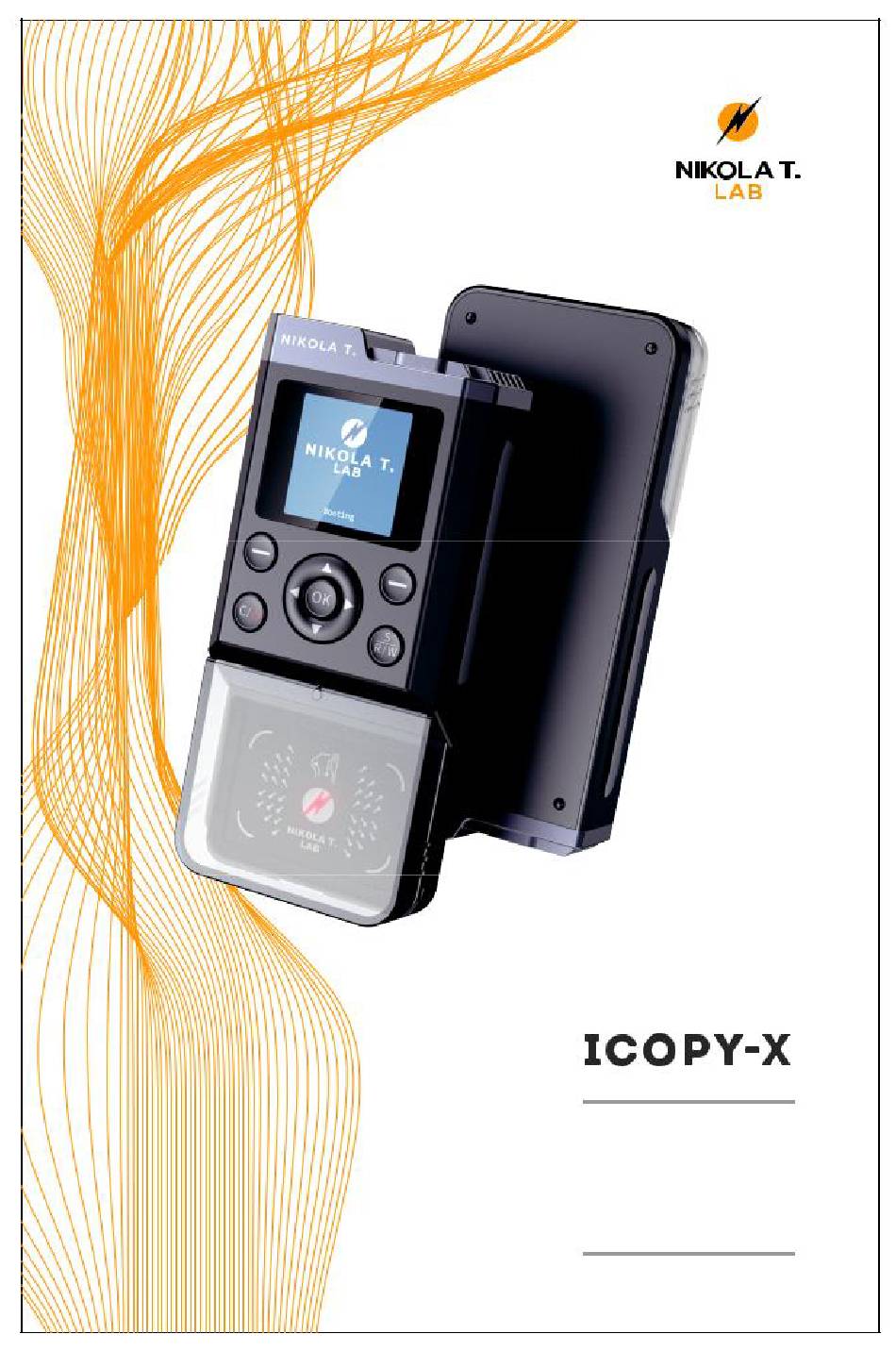

- Page 1 Instruction Manual...
- Page 2 UK Version iCopy-XS...
- Page 3 Warranty, please visit www.icopy-x.com/warranty LIMITED LIABILITY NIKOLA T. LAB shall in no event be liable for any lost profits, loss of information or data, special, incidental, indiret, punitive or consequential or incidental damages, araising in any way out of distribution of, sale of, resale of, use of, inability to use the Product.

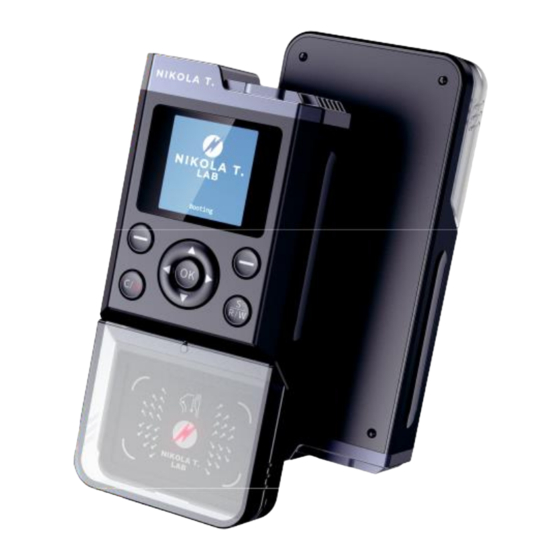

- Page 4 EXPLORING YOUR ICOPY-X Charging Port Arrow Keys & Enter Buttons Display Screen Left Select Button Right Select Button Power / Cancel / One Button Auto Copy Force Reset Button (Scan / Read / Write) RFID Card Placement Area USB charging port:...
- Page 5 TIP: The transparent cover is used to hold key fobs and small size cards so they will not slide whilst reading. This also enables you to carry the iCopy-X around whilst reading or decrypting...
-
Page 6: Getting Started
GETTING STARTED USING ICOPY-X 1. Auto Copy Automatic scanning, reading and writing of all information from the original RFID Tag to a new UID card/tag. 2. Scan Tag Scanning of tag and getting the basic information of the tag type. - Page 7 CLONING 101 ON ICOPY-X How to quickly copy a token: Step 1: Place the original token in the correct position on the device. Step 2: Click the "S/R/W" button or select "Auto Copy" in the menu to start the automatic copy process.
- Page 8 MIFARE token. Step 1: Connect to your computer and then enter PC-MODE on the iCopy-X select Start and wait for the iCopy-X to say“PC mode Running⋯” Step 2: A USB flash drive will appear on the computer. Open the drive and then right click on "AUTO-Hardnest.exe"...
- Page 9 To use the command line options in PC-MODE. Step 1: Connect to your computer and then enter PC-MODE on the iCopy-X select Start and wait for the iCopy-X to say “PC mode Running⋯” Step 2: A USB flash drive will appear on the computer.
- Page 10 Step 1: website and download the upgrade package to your PC. Step 2: Connect the ICOPY-X to your computer using the supplied USB TYPE C cable and delete any files that end in “.ipk” from the root directory. Step 3: Copy the newly downloaded upgrade package to the root directory.
-
Page 11: Technical Support
“PC-MODE"? If you have a computer, Windows 10 with a CPU i3 and above is supported, Select "PC-MODE" first in the iCopy-X Menu to use the computers advanced cracking function. If the computer fails to crack, or there is no computer. You can try to use "Sniff" to sniff the password, and you need to prepare the credit card machine or access control corresponding to the card. -
Page 12: Safety Guidelines
Once a month we recommend you to unplug the device and clean it using a soft cloth swab to prevent dirt buildup. Do not use soap or harsh cleaning agents. IMPORTANT: When not in use, always turn the iCopy-X off to avoid overheating. - Page 13 WHAT SYSTEMS ARE SUPPORTED FOR RFID CARD CLONING (LOW FREQUENCY) iCopy-X iCopy-XR iCopy-XS LF READ Supported EM Marin HID Prox HID Indala(Motorola) AWID IoPorx G-Prox SecuraKey Viking(FDI) Pyramid FDX-B Gallagher Jablotron Keri Nedap Noralsy PAC/Stanley Paradox Presco Visa2000 HITAG Nexwatch...
-
Page 14: Other Functionality
WHAT SYSTEMS ARE SUPPORTED FOR RFID CARD CLONING (HIGH FREQUENCY) Tag WRITE Supported iCopy-X iCopy-XR iCopy-XS MIFARE 1k S60 4 Byte MIFARE 2k 4 Byte MIFARE Mini 4 Byte MIFARE 1k S60 7 Byte MIFARE 4k S60 4 Byte MIFARE 4k S70 7 Byte... - Page 15 Cortex-A7 CPU frequency 600MHz ARM Mali Memory 256MB+4GB (iCopy-X) 256MB+8GB (iCopy-XR) UK: 256MB+16GB (iCopy-XS) *The actual usable capacity will be reduced and different due to many factors: because the operating system occupies part of thec memory (RAM), the actual available space is less than the marked memory capacity;...
-
Page 16: Hardware Specification
Hardware Specification Screen Refresh rate 50Hz Resolution 240 x 240 Size 1.3 inches RFID system HF(13.56MHz) ISO14443A/ISO14443B/ISO15693/PICOPASS LF(125/134kHz) ASK/FSK/PSK Protocol types MIFARE, ICODE, Legic, Felica, SRI512, TOPAZ, iClass, EMMarin, HIDProx, Indala, Motorola, AWID, IoProx, G Prox, SecuraKey, Viking(FDI), Pyramid, FDX-B, Gallagher, Jablotron, Keri, Nedap, Noralsy, PAC, Stanley, Paradox, Presco, Visa2000, Nexwatch, EM4305, T5577 Physical dimension... - Page 17 Manufactured by: Nikola T. Lab Co Ltd Designed and Engineered in Hong Kong, China Websites:www.nikola-lab.com www.icopy-x.com Email: team@icopy-x.com (Product level) WeChat:iCopy-X UK Import only through : https://www.doorfobs.com/icopyx.html...
