Summary of Contents for ScaraBot Endurance

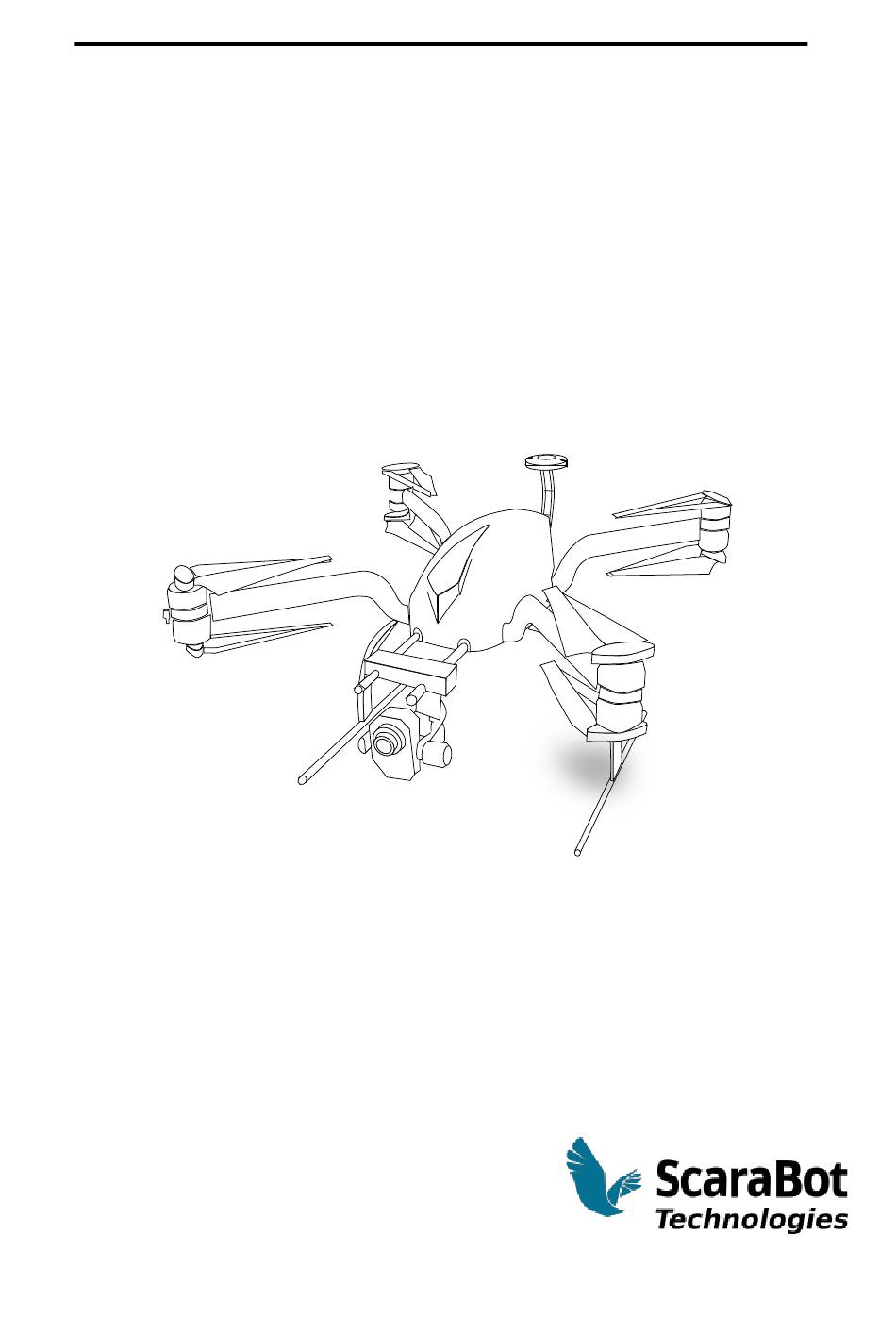

- Page 1 ScaraBot Endurance Quick Start Guide Release 0.0.2, March 10,2020 © 2020 ScaraBot Technologies GmbH All Rights Reserved...
- Page 2 7. Aircraft Status Indicator 15. Hood fixers 8. GPS The ScaraBot Endurance is compatible with a different variety of gimbals and payload. This guide shows the BLG400 gimbal and Micasense Red Edge Payload in order to demonstrate the most relevant functions.
-
Page 3: Remote Controller
Remote Controller The standard remote control of the ScaraBot Endurance is the Herelink. It offers a signal transmission up to 12km in EU. The Herelink integrates 3 important features of the ScaraBot: remote control, telemetry and video link. Integrates a 5.46” touch screen on board providing the user with the QGroundcontol as base station. -
Page 4: Camera Control
9. VBat Protected Camera Control Gimbal Control The camera can be trigger either direct through a RC button or through the GCS 1. Camera trigger button 2. Camera trigger Interface 3. Image Index © 2020 ScaraBot Technologies GmbH All Rights Reserved... - Page 5 * If the Battery values are below 30% it is advisable to charge the remote control before using it. Turn it down and charge it as shown in the following picture. The ScaraBot Remote controller is charged the same way a Smart Phone. Check the Battery level of the ScaraBot Smart Battery.
-
Page 6: Prepare Aircraft
In case the Battery is not fully charged, please charge it to enjoy the most of the ScaraBot Endurance. 1. Connect the Smart Charger to the grid and turn it on. 2. Insert the batteries into the Smart Charger. The Batteries will be ready once them stop blinking. -
Page 7: Prepare Remote Controller
4. Before Flying Compass Calibration * Calibration has to be perform any time the aircraft requires it. In addition it should be done every time the start point varies more than 100km. © 2020 ScaraBot Technologies GmbH All Rights Reserved... - Page 8 * Check no fly zones here: https://map2fly.flynex.de/. For more information refer to the user manual. Visual Inspection of the Vehicle Before flying perform a visual inspection of the vehicle looking for obstruction at the rotos or any screw or cable loose. © 2020 ScaraBot Technologies GmbH All Rights Reserved...
-
Page 9: First Flight
GPS. It is a secure measure in order to avoid arming. Press it during 1sec in order to enable the aircraft. QGroundControl Auto functions *More information how the auto mode works under the ScaraBot Endurance User Guide. © 2020 ScaraBot Technologies GmbH All Rights Reserved... -
Page 10: Manual Flight
5 Bft, 11 m/s Max Flight Time(No Payload 65min Operating Temperature -20 to 45°C BeiDou, GLONASS, GPS / QZSS Remote Control (air unit) Dimensions 76.7x27 mm HDMI 2 HDMI input connector Pair One button pairing © 2020 ScaraBot Technologies GmbH All Rights Reserved... - Page 11 Altum + DLS 2: 406.5 g (14.34 oz)Altum: 357 g (12.6 oz) DLS2: 49 g (1.73 oz)Wi-Fi Adapter: 2 g (0.07 oz)USB stick: 9 g (0.32 oz) Power consumption 5.5/7.0/10W (standby, average, peak) © 2020 ScaraBot Technologies GmbH All Rights Reserved...
- Page 12 20-150A Operational temperature 0-55º Battery Charger Model ScaraBot Charger V1 Dimensions 315x396x296mm Input Frequency 47 to 63Hz Input Voltage 90 to 305 VAC Output Voltage 25.2V Max. Output Current 16.7A Overall efficiency © 2020 ScaraBot Technologies GmbH All Rights Reserved...
