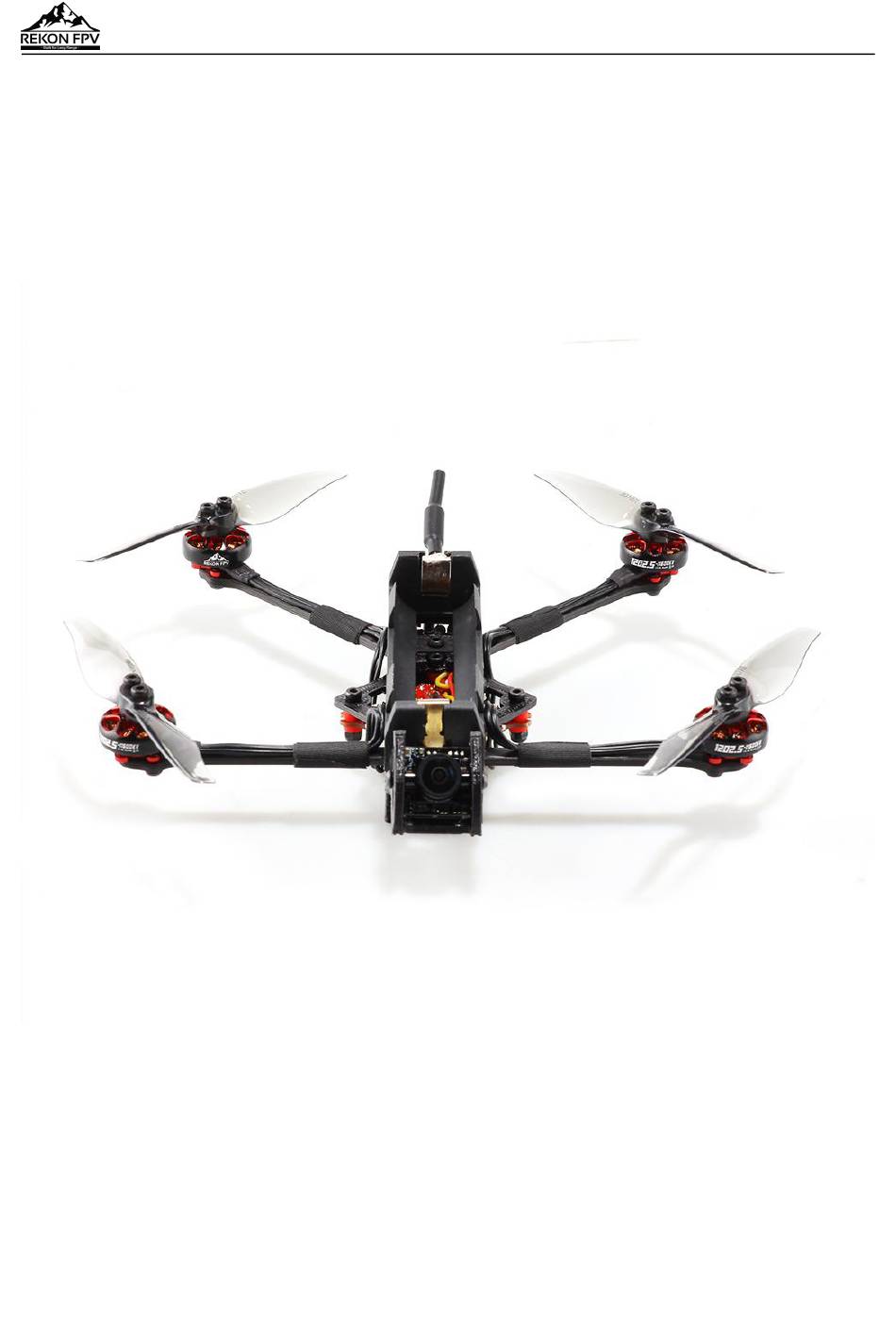

- Page 1 Rekon3 FPV Racing Drone Manual rekonfpv.com...
-
Page 2: Table Of Contents
Select aircraft model..........................7 Choose ESC protocol..........................8 Voltage parameters setting........................9 Setting up the receiver..........................10 VTX serial port use............................11 Check receiver signal..........................12 Select flight mode startup mode......................13 OSD settings..............................14 LED settings..............................15 Troubleshooting............................16 ..................Package IncIuded HGLRC Rekon3 FPV Racing Drone*1 Accessory Package*1 Rekonfpv.com... -
Page 3: Product Specifications
1.Product Specifications Product parameters Model Rekon3 VTX FPV Racing Drone Frame Kit Rekon3 Frame Kit Flight Controller Zeus5 AIO Flight Controller Zeus nano 350mW 1202.5 Motor Motor CRSF 1S KV11600 Support Neceiver SBUS .DSMX. Input Voltage 1S Lipo Weight 62.5g... -
Page 4: Interface Description
2.Interface Description Rekonfpv.com... -
Page 5: Check The Flight Control Drive
3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode ，... - Page 6 5.Click Select firmware version Load firmware Waiting for 6.Click completion It will be prompted upon completion 7. open betaflight configurator computer. Betaflight Automatically assigned port click “Connect” Enter Controller plugged into the setup interface（Different computer COM） ， Rekonfpv.com...
-
Page 7: Calibration Accelerometer
4. Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again 5.UART serial port use 1.UART1 uses WIFI Open WIFI CLI command ‘’ resource PINIO 1 B10 serial 0 1 115200 57600 0 115200 set pinio_config = 129,1,1,1 set pinio_box = 0,255,255,255 ’... -
Page 8: Wifi Function Instruciton
2. UART2 uses receiver S5 is a soft serial port, dedicated to video transmission (VTX) FM CLI command of soft serial port: ‘’ resource MOTOR 5 none resource SERIAL_TX 11 B03 ‘’ SAVE 6.WIFI function instruciton Select Ports Click 2.Install Speedy Bee on your mobile phone. Connect to WIFI name Started with HermesXXXX. -
Page 9: Select Aircraft Model
7.Select aircraft model Select model Click I understand the risks Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite “ ” Rekonfpv.com... -
Page 10: Choose Esc Protocol
8.Choose ESC protocol 9.Voltage and current parameters setting 1.Click Setting parameters Rekonfpv.com... -
Page 11: Setting Up The Receiver
10.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART2 Open the receiver serial port “ ” 3.Set the SBUS receiver 4.Set the CRSF receiver Rekonfpv.com... -
Page 12: Vtx Serial Port Use
11.VTX serial port use wiring 1. 5.8G VTX connection 2. 5.8G VTX serial port opens. The protocol is selected according to its own VTX protocol. 3.Use OSD to adjust VTX which displays information like battery voltage and mAh consumed while you fly. In addition, the Betaflight OSD can be used to configure the quadcopter, making in-field adjustments and tuning more convenient. - Page 13 The graphics above show the stick command to bring up the OSD menu. The stick command is: throttle centered, yaw left, pitch forward. The exact stick command therefore depends on which mode your transmitter sticks are in. In the OSD menu, use pitch up/down to move the cursor between menu items.
-
Page 14: Check Receiver Signal
12.Check receiver signal Check the remote control output signal 1.Click 13.Select flight mode startup mode set up the function of remote control switch across the 1.Click channel (below are for reference only) Rekonfpv.com... -
Page 15: Osd Settings
14.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. 15.LED settings 1.Click Turn on LED support 2.Click Click set according to need Rekonfpv.com... -
Page 16: Troubleshooting
16.Troubleshooting Warning: Please read the cautions as follows, otherwise stability of your flight controller cannot be ensured, your flight controller will even get damaged. ● Keep focus on the polarity. Check carefully before power supply. ● Cut off the power when you connect, plug and pull anything. ●... - Page 17 Product daily problems 1.OSD garbled: If you find garbled characters, please open Betaflight, click “OSD” .and click “Font Manager” clicks on “Upload Font” to update 1. When plugged in the battery, the aircraft does not pass the self-test without "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1.
