Off Grid

Refrigerator

1DS65X , 1DS65, 1DG65

USER GUIDE

Table of Contents

Need help?

Do you have a question about the 1DS65X and is the answer not in the manual?

Questions and answers

Summary of Contents for SureChill 1DS65X

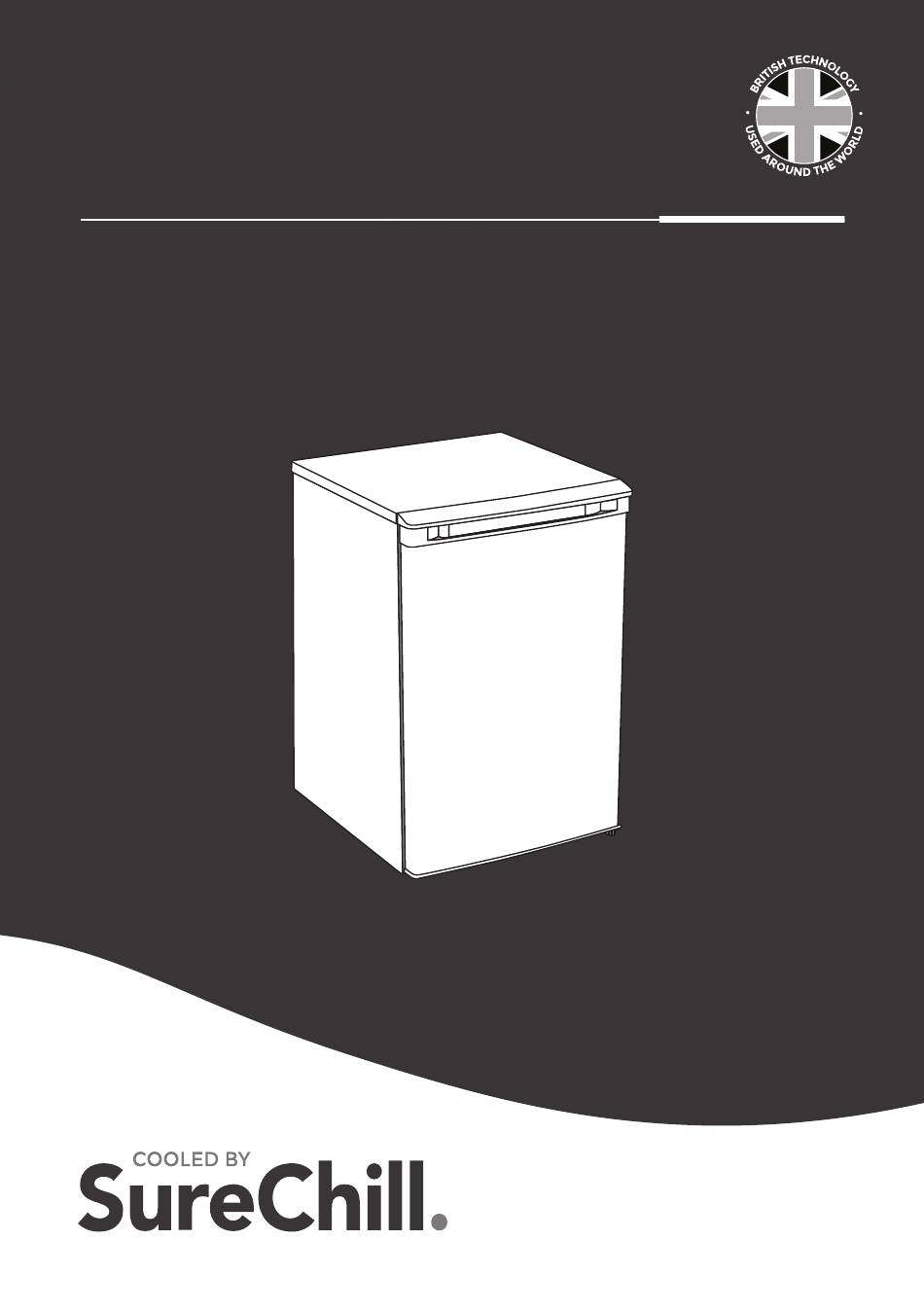

Page 1 Off Grid Refrigerator 1DS65X , 1DS65, 1DG65 USER GUIDE...
Page 2: Table Of Contents
If you have a question about your appliance please contact the company you purchased from with the serial number and the details of where and when you bought the appliance. Identify your fridge model: 1DS65X 1DS65 1DG65 Solar powered fridge...
Page 3 Indicator Panel 3 x Shelves Crisper Drawer Included: Funnel Use clean drinkable water Hose Pipe 1.5m Approximate Included: water volume: OG65_Version_01 Page 2 of 29 User Guide Off Grid Refrigerator V1.8...
Page 4 Only included with fridge model 1DS65X keypad keypad Cable Only included with fridge model 1DG65 Grid power plugs may vary depending on the country Power Adaptor Connector supplied seperately Solar Panel(s) Panel size may vary dependent on location Twin Solar Panel Cable User Guide Off Grid Refrigerator V1.8...
Page 5: Safety Warnings
Safety Warnings R600a Refrigerant Warning WARNING Risk of Fire / Flammable materials WARNING Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction. WARNING Do not damage the refrigerant circuit. WARNING Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
Page 6 WARNING – The refrigerator is only intended to operate whilst connected directly to a solar panel or provided power adaptor, do not connect to any other power supply, this unit is only intended to operate on a safe low voltage. WARNING –...
Page 7 Do not tilt or place on its side or upside down Keep upright Keep level Keep dry Avoid direct Keep away from ﬁre or sources of sunlight heat OG65_Version_01 Page 4 of 29 User Guide Off Grid Refrigerator V1.8...
Page 8 Do not place near magnetic ﬁelds Do not place heavy objects on fridge Inside use only Not for outdoor use Fridge models 1DS65 and 1DS65X Fridge model 1DG65 110 - 240Vac 12 - 40Vdc 12 - 40Vdc Power Adaptor OG65_Ver...
Page 9 1.10 NOTE: Not to scale 30mm 30mm 30mm 1.11 30mm 30mm OG65_Ver age 6 of 29 User Guide Off Grid Refrigerator V1.8...
Page 10: Connecting The Keypad
Connecting the Keypad Model 1DS65X For other models go to page 11 Bring end of keypad cable to rear of fridge keypad Locate connection point keypad Cable keypad Cable Plug the end of the keypad cable in to the corresponding connector..
Page 11 Blue Flash When key is successfully pressed Yellow Light Credit will expire within the next 48 hours Red Flash (5 second intervals) When credit has expired Make a payment with A unique code will be sent to cash or mobile money the customers phone once the payment has been received * 123 456 789 123 01 #...
Page 12 Use table below to check that the code has been entered correctly Blue Blink Visual Description Textual Description Feedback Invalid keys pressed - displayed “Keypress Rejected” Three short blinks of when keycode entered is blue light on keypad missing the initial "Start" key or the product is rate-limited.
Page 13: Connecting To Solar Panels
Connecting to Solar Panels Only Models 1DS65 and 1DS65X For Grid power (model 1DG65) go to page 13 twin solar panel cable Ensure solar panel(s) is installed correctly before continuing (page 26) Do not connect solar panel cable(s) at this stage Gather solar panel cable(s) and bring to the back of the fridge.
Page 14 Connect the solar cable(s) at the back of the fridge Connect cable(s) to solar panel(s) following Check connection to the back of the fridge instructions on page 26 is correct and secure Leave the solar panels connected to the fridge at all times to ensure optimal performance.
Page 15: Connecting Your Off-Grid Refrigerator To Grid Power
Connecting to Grid Power Model 1DG65 If connecting to solar panels go to page 11 Grid power plugs may vary depending on the country Power Adaptor Locate the power connection point at the back of the fridge Connector Plug connector in to the end of the power adaptor cable.
Page 16: Setup
Setup Use clean drinkable water 1.5m Approximate Included: water volume: Locate ﬁlling hole Open door Remove ﬁlling cap and retain User Guide Off Grid Refrigerator V1.8 OG65_Version_01 Page 8 of 29...
Page 17 Push hose into ﬁlling hole Insert approx 150mm Fit funnel (supplied) Do not allow funnel Keep hose level above ﬁll line to drop below ﬁll line 5.10 Fill with clean Use clean drinkable water drinkable water OG65_Version_01 Page 9 of 29 User Guide Off Grid Refrigerator V1.8...
Page 18 5.11 5.12 Fill until water starts Remove hose and to ﬂow out wipe up any spillage STOP 5.13 Replace ﬁlling cap 5.14 Do not move fridge when full OG65_Version_01 Page 10 of 29 User Guide Off Grid Refrigerator V1.8...
Page 19 5.15 5.16 Open door Locate indicator panel When on solar power the green light will 5.17 5.18 Close door only be lit when the sun is shining on the solar panels. When on grid power the green light will be lit continuously whilst power is available.
Page 20: Top Tips For Best Performance
Top Tips to get Best Performance Do not place hot food in the fridge Putting hot food into your fridge makes the inside of the fridge heat up. By allowing food to cool ﬁrst it will keep your fridge cool and your food fresher for longer.
Page 21 Suggested food placement Do not leave fridge door open. When the door is open cold air escapes making your fridge warmer. OG65_Version_01 Page 15 of 29 User Guide Off Grid Refrigerator V1.8...
Page 22: Maintenance
Maintenance Wipe all shelves and inside of the fridge weekly using a clean cloth and warm water. The shelves and crisper draw can be removed for easier cleaning. If connected to solar panels Keep solar panels free from dust and dirt to allow for best performance by washing regularly with clean water.
Page 23: Moving
Moving Included: Do not move fridge when full of water 1.5m If connected to a solar panel(s) cover panel(s) Disconnect all cables Open door Leave for 3 days to defrost Remove ﬁlling cap and retain OG65_Version_01 Page 19 of 29 User Guide Off Grid Refrigerator V1.8...
Page 24 Insert hose (supplied) Make sure hose goes to the bottom of the tank Do not syphon water Fit funnel to hose using mouth (supplied) OG65_Version_01 Page 20 of 29 User Guide Off Grid Refrigerator V1.8...
Page 25 8.10 8.11 Add water to funnel to create a syphon Shake funnel to remove air 8.12 8.13 When all air is removed the fridge Remove funnel can be emptied STOP 8.14 8.15 Make sure you have container(s) Put hose into container to collect water (approx.
Page 26 8.16 8.17 After emptying remove hose and replace cap Water will ﬂow out 8.19 8.18 Keep upright Fridge can now (see page 5) be moved OG65_Version_01 Page 22 of 29 User Guide Off Grid Refrigerator V1.8...
Page 27: Fridge Specifications
Fridge Speciﬁcations Model No. 1DS65X, 1DS65, 1DG65 Rated Voltage 12-40v dc Rated Current Climate Class N, ST, T Maximum Lamp Power 0.5W Refrigerant R600a Mass of Refrigerant Insulation Blowing Gas Cyclopentane Disposal This marking indicates that this product should not be disposed with other household wastes.
Page 28: Solar Panel Installation
Solar Panel Installation Installation Notes Position of Solar Panels • Position the panel(s) facing direct sunlight at For speciﬁc and detailed installation instructions midday, ideally ﬁx alongside existing solar consult the Solar Panel installer. panel(s). • Position the solar panel(s) on the roof. Place •...
Page 29 Africasales@surechill.com @sure_chill...
